3M Products & Supplies

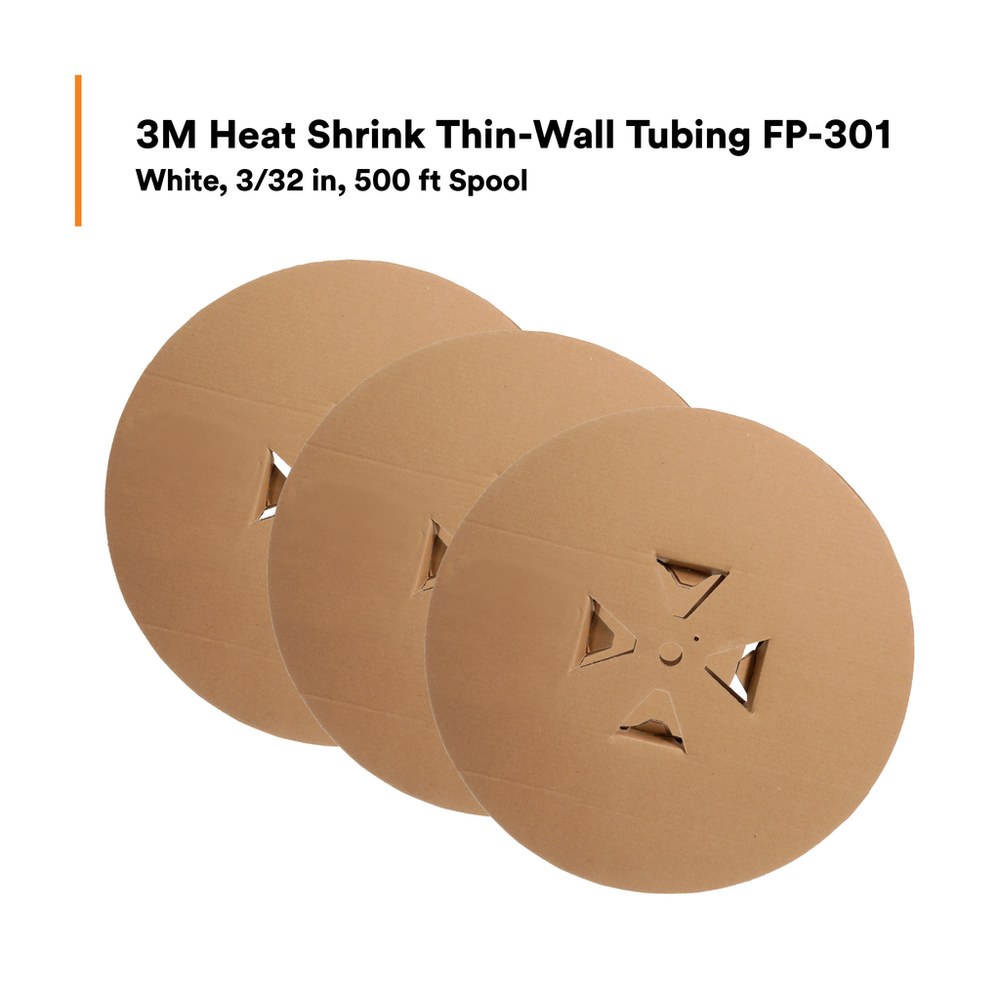

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-White-500`: 500 ft spool length, 1500 ft/box, 3 Rolls/Case - 7010320050

Sold As: 1500-Pack
SKU: 7010320050
MPN: 7010320050
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084709
3M ID: 80610219380
5 Digit UPC: 8470
$731.87 ($0.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Imperial)0.046
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius)135.0
Adhesive MaterialNone
Flame RetardantYes
UL File NumberE-39100
Inner Diameter After Shrink (Metric)1.17
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial)500.0
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOM%
Inner Diameter Before Shrink (Metric)2.36
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.3.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.093
Minimum Expanded Tubing I. D. UOMin
Product ColorWhite
