3M Products & Supplies

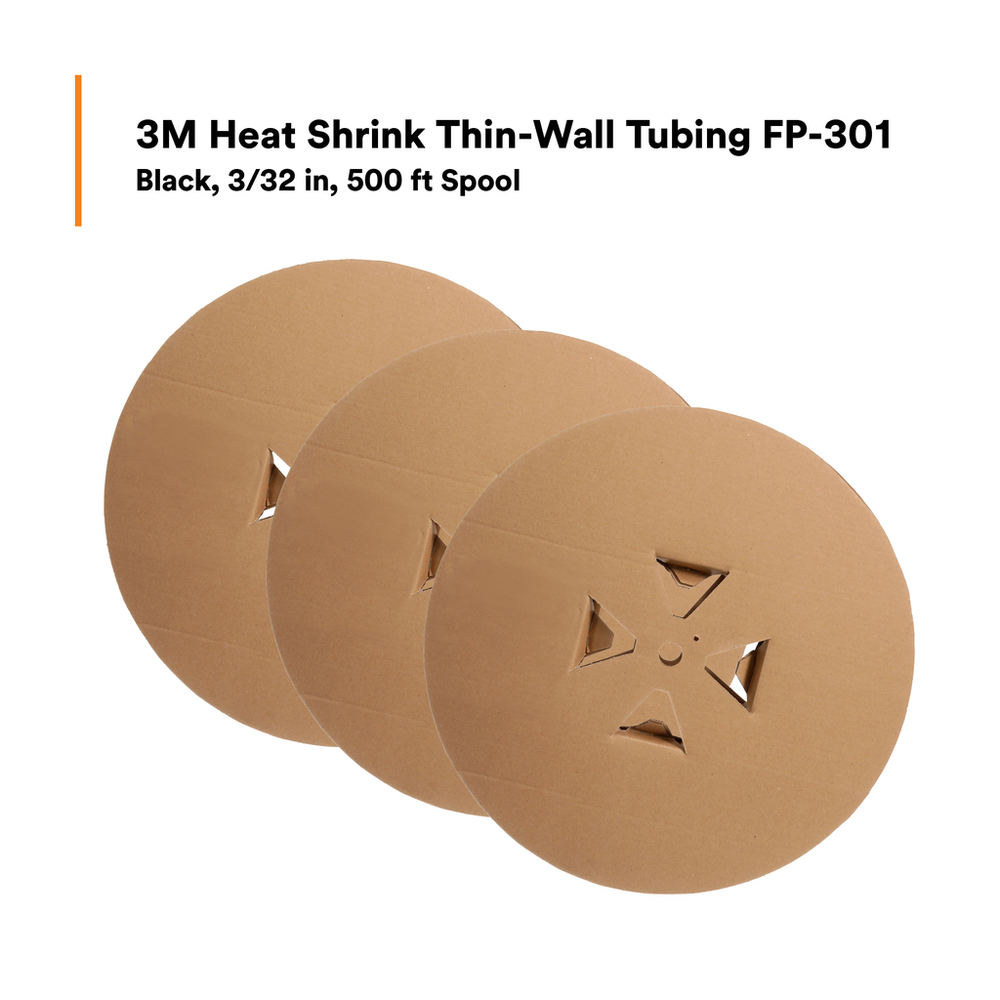

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-Black-500`: 500 ft spool length, 1500 linear ft/box, 3 Rolls/Case - 7100029976

Sold As: 1500-Pack
SKU: 7100029976
MPN: 7100029976
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084662
3M ID: 80610219349
5 Digit UPC: 8466
$718.38 ($0.48 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Shrink Ratio2:1
Tubing TypeSingle Wall (Thin)
Overall Length (Imperial) UOMft
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
MaterialFlexible Polyolefin
Product ColorBlack
UL ApprovalYes
Overall Length (Imperial)500.0
Inner Diameter Before Shrink (Imperial)0.093
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)2.36
Inner Diameter After Shrink (Metric)1.17
Units per Case3.0
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
UL File NumberE-39100
Operating Temperature Range (Celsius)-55 °C to +135 °C
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Metric) UOMmm
Elongation UOM%
Minimum Shrink Temperature (Celsius)100.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)0.046
Minimum Expanded Tubing I. D.3.0
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)275.0
