3M Products & Supplies

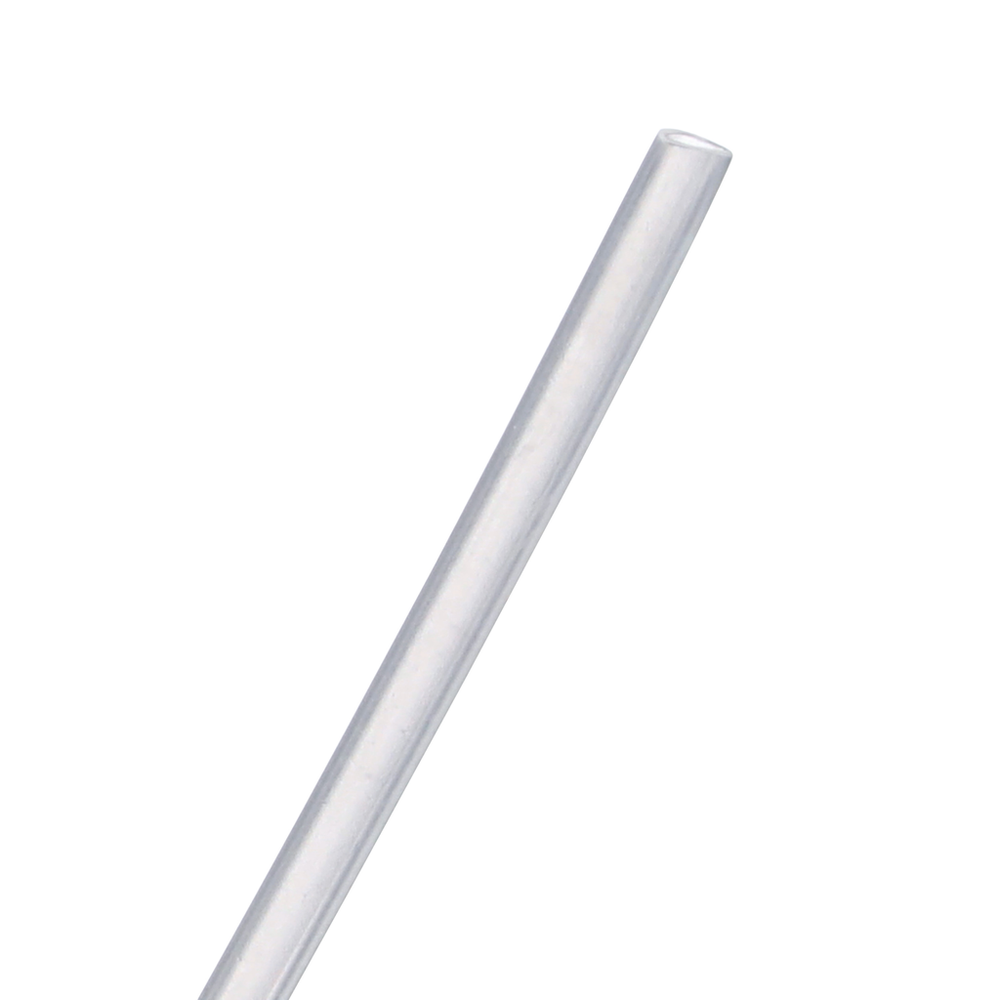

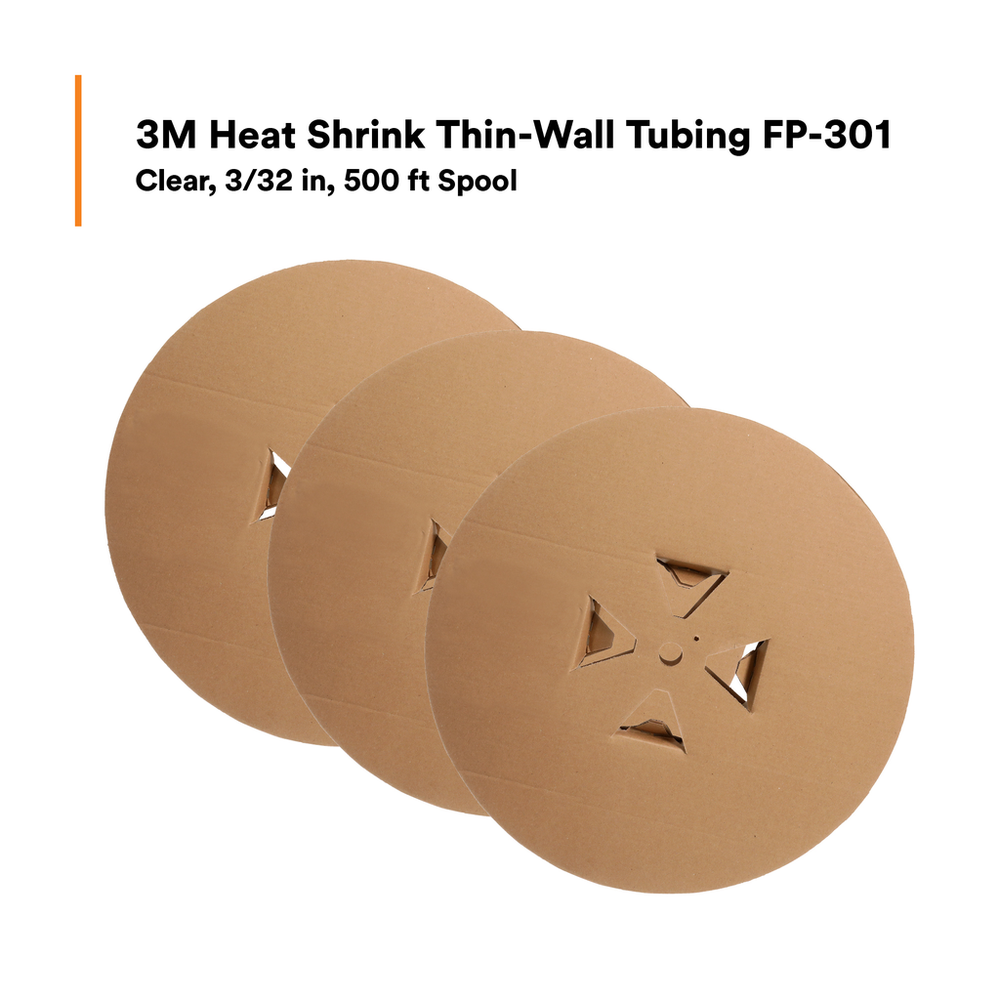

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-Clear-500`: 500 ft spool length, 1500 linear ft/box, 3 Rolls/Case - 7100020132

Sold As: 1500-Pack
SKU: 7100020132
MPN: 7100020132
For an accurate lead time please contact us
UPC: 00054007085256
3M ID: 80610219935
5 Digit UPC: 8525
$783.34 ($0.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

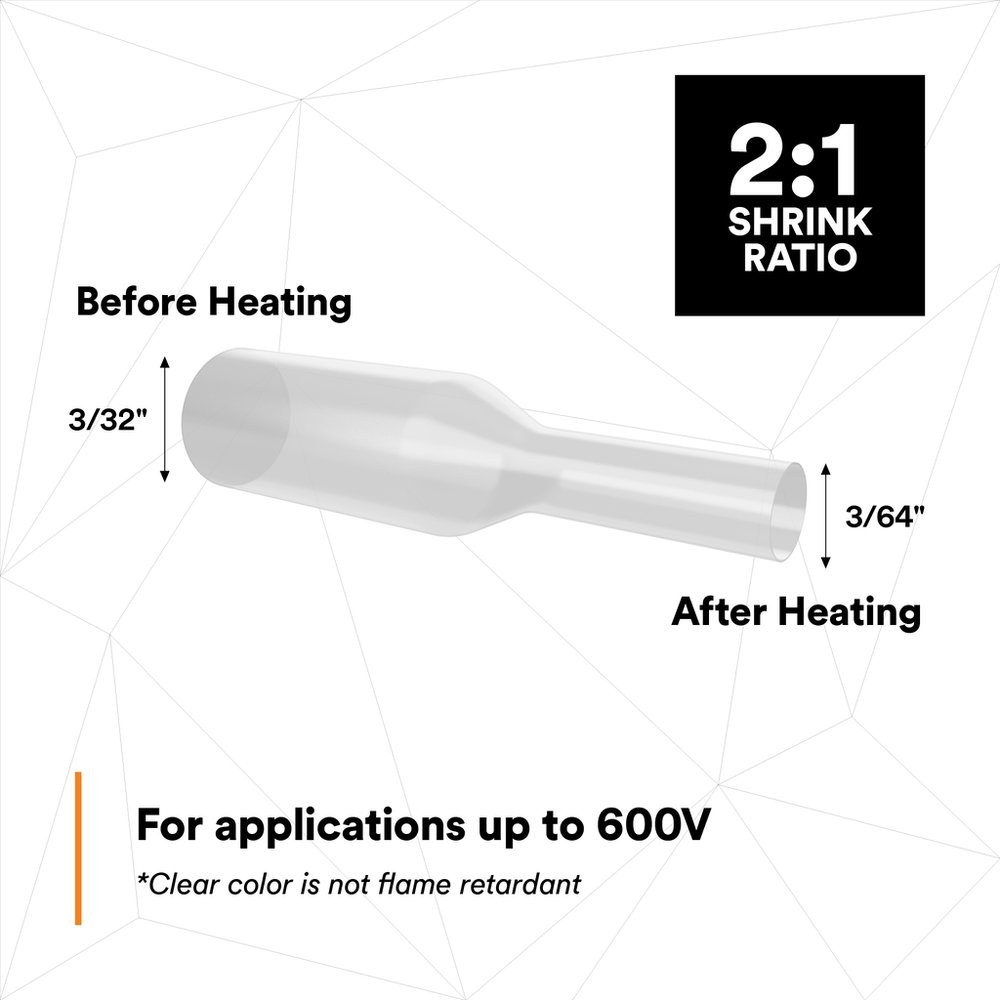

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.046
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 2
Overall Length (Imperial)500.0
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric)2.36
Minimum Shrink Temperature (Celsius)100.0
UL File NumberE-39100
Inner Diameter After Shrink (Metric)1.17
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.3.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial) UOMin
Product FormStick
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial) UOMft
Operating Temperature Range (Celsius)-55 °C to +135 °C
Product ColorTransparent
UL ApprovalYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialFlexible Polyolefin
Shrink Ratio2:1
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Elongation UOM%
Maximum Operating Temperature (Celsius)135.0
Units per Case3.0
Adhesive MaterialNone
Flame RetardantNo
Inner Diameter Before Shrink (Imperial)0.093
