3M Products & Supplies

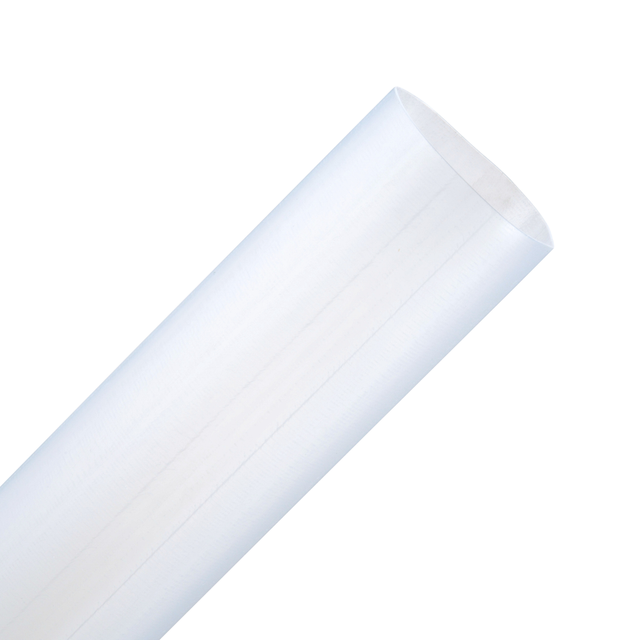

3M™ Heat Shrink Thin-Wall Tubing FP-301-4-Clear-50`: 50 ft spool length, 50 linear ft/box, 1 Roll/Case - 7100083169

Sold As: 1100-Pack
SKU: 7100083169
MPN: 7100083169
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007389866
3M ID: 80610241202
5 Digit UPC: 38986
$12,199.21 ($11.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
UL ApprovalYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Metric)50.8
Minimum Shrink Temperature (Celsius)100.0
Shrink Ratio2:1
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit)275.0
Units per Case1.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)101.6
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Overall Length (Imperial) UOMft
Overall Length (Imperial)50.0
Mil SpecAMS-DTL-23053/5, Class 2
Adhesive MaterialNone
MaterialFlexible Polyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.4.0
Inner Diameter Before Shrink (Imperial)4.0
Elongation UOMdB
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)2.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
