3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301VW-3-Black-50`: 50 ft spool length, 50 linear ft/box, 1 Roll/Case - 7100025708

Sold As: 50-Pack
SKU: 7100025708
MPN: 7100025708
For an accurate lead time please contact us
UPC: 00054007388739
3M ID: 80610240071
5 Digit UPC: 38873
$281.14 ($5.62 / Count)
Hurry up! Current stock:

Product Description

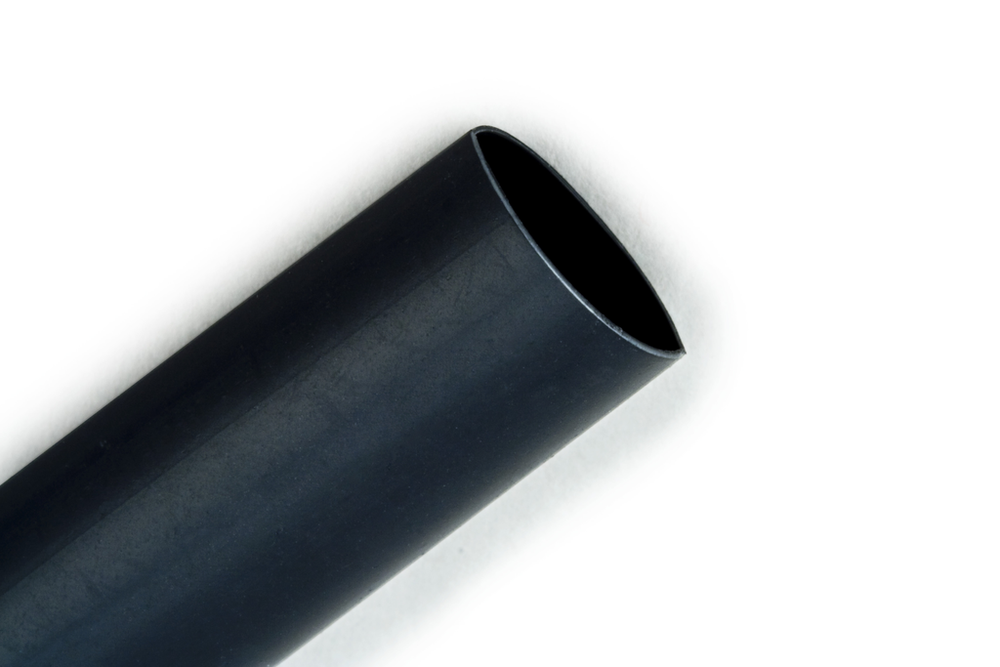

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
  • Rated for 600V applications
  • Made of black flexible polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Inner Diameter After Shrink (Imperial)1.5
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL ApprovalYes
Inner Diameter After Shrink (Metric)38.1
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.3.0
Minimum Shrink Temperature (Celsius)100.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
Overall Length (Imperial) UOMft
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Elongation UOMdB
Overall Length (Imperial)50.0
Inner Diameter Before Shrink (Metric)76.2
Flame RetardantYes
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE-39100
Mil SpecAMS-DTL-23053/5, Class 3
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)3.0
