3M Products & Supplies

3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-0400-48A, Red, cable range of #12-#6 AWG, 4 ft lengths, 5/case - 7010396790

Sold As: 20-Pack
SKU: 7010396790
MPN: 7010396790
For an accurate lead time please contact us
UPC: 00051135362396
3M ID: 80610769467
5 Digit UPC: 36239
$533.51 ($26.68 / Count)
Hurry up! Current stock:

Product Description

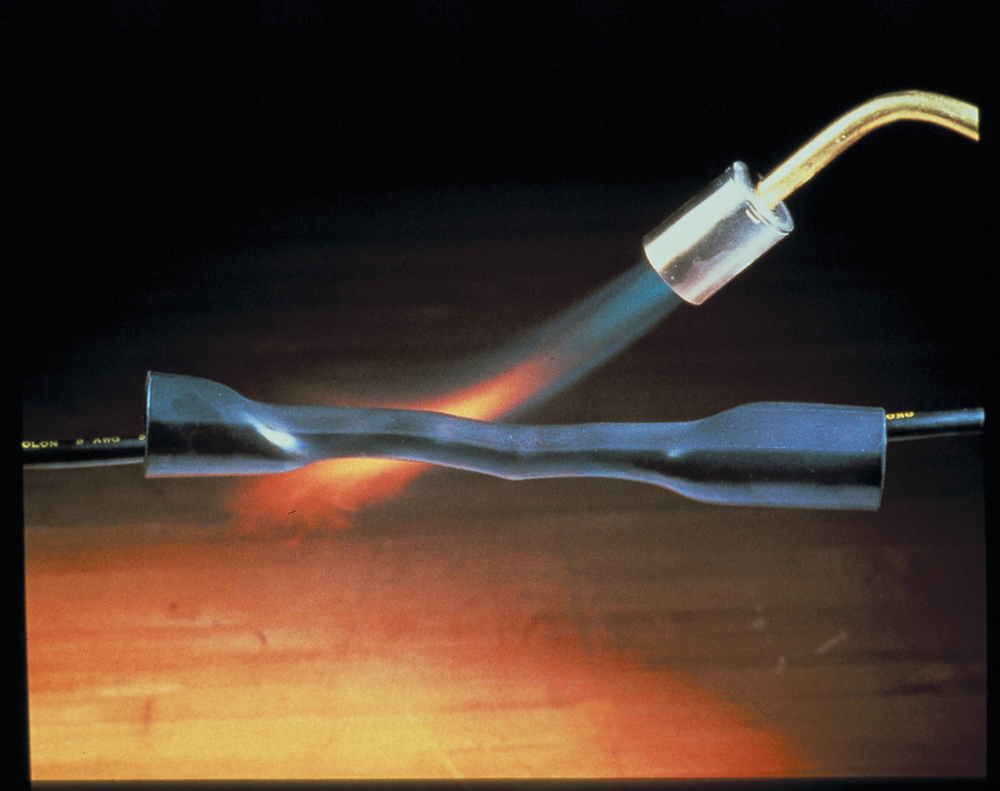

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Superior resistance to abrasion, corrosion and chemicals
  • Flame-retardant
  • Made of black cross-linked polyolefin
  • Offers reliable performance for electrical splices, connections and terminations
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationElectrical Insulation; Mechanically strong tubing
Maximum Operating Temperature (Celsius)110.0
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial)0.15
Inner Diameter After Shrink (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Imperial)48.0
Splice TypeHeat Shrink
Halogen FreeNo
Inner Diameter Before Shrink (Imperial)0.4
UV ResistantYes
Maximum Operating Temperature (Fahrenheit)230.0
Overall Length (Imperial) UOMin
Product ColorRed
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter Before Shrink (Metric)10.2
Inner Diameter After Shrink (Metric)3.8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
UL Bug Voltage600 Volt
