3M Products & Supplies

3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-0300-48A, Black, cable range of #14-#8 AWG, 4 ft lengths, 5/case - 7010396826

Sold As: 20-Pack
SKU: 7010396826
MPN: 7010396826
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135370414
3M ID: 80610820427
5 Digit UPC: 37041
$514.06 ($25.70 / Count)
Hurry up! Current stock:

Product Description

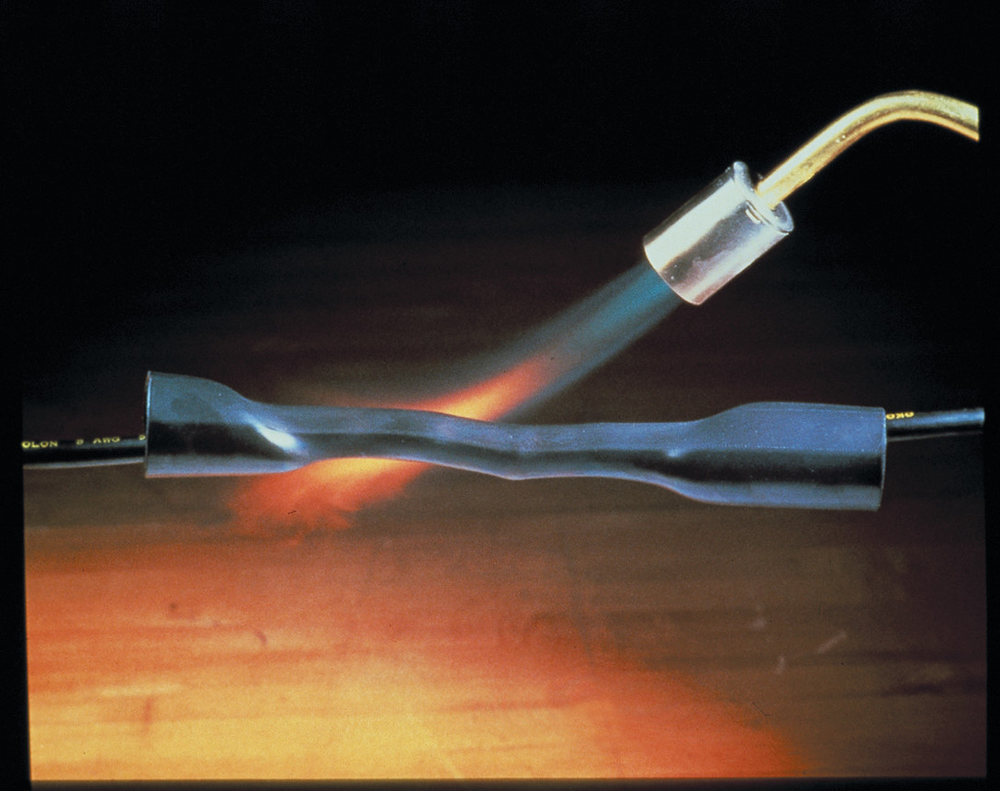

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Offers reliable performance for electrical splices, connections and terminations
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Superior resistance to abrasion, corrosion and chemicals
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant
  • Flame-retardant

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)7.62
Inner Diameter After Shrink (Metric)2.5
Halogen FreeNo
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
ApplicationElectrical Insulation; Mechanically strong tubing
Splice TypeHeat Shrink
UL Bug Temperature (Celsius)125 Degrees Celsius
UV ResistantYes
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.3
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product ColorBlack
UL Bug Voltage600 Volt
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)48.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter After Shrink (Imperial)0.1
