3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-4500-48A, 5/Case - 7000132415

Sold As: 5-Pack
SKU: 7000132415
MPN: 7000132415
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406563
3M ID: 80610294664
5 Digit UPC: 40656
$721.11 ($144.22 / Count)
Hurry up! Current stock:

Product Description

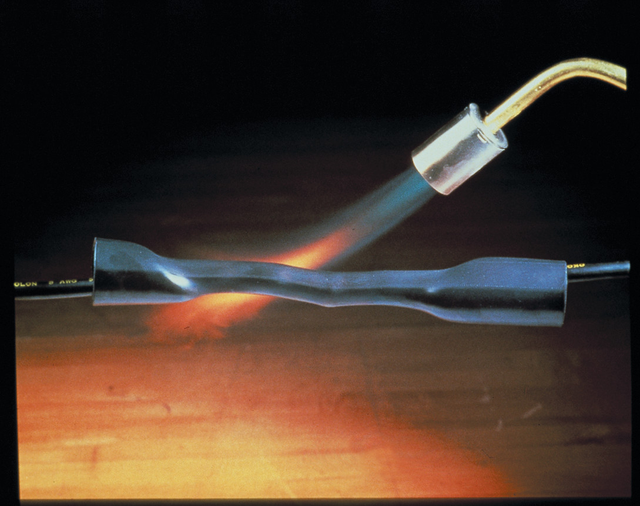

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Flame-retardant
  • Made of black cross-linked polyolefin
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Tubing TypeHeavy Wall
Dielectric Strength (V/mil)500 V/mil
Maximum Conductor Size (Imperial)2500 kcmil
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)121.0
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Metric)114.3
Splice TypeHeat Shrink
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial)4.5
Overall Length (Metric) UOMm
Flame RetardantYes
Shrink Ratio3:1
UL Bug Temperature (Celsius)125 Degrees Celsius
ApplicationElectrical Insulation; Mechanically strong tubing
Product ColorBlack
Overall Length (Imperial)48.0
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Minimum Expanded Tubing I. D.4.5
Maximum Operating Temperature (Celsius)100.0
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Halogen FreeNo
Overall Length (Metric)1.22
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecSAE-AMS-DTL-23053/15,Class 1
Product TypeSleeve
Maximum Conductor Size (Metric)1267 mm²
Adhesive LinedYes
Inner Diameter After Shrink (Metric)38.1
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial)1.5
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UV ResistantYes
Units per Case5.0
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)500 mm²
Inner Diameter After Shrink (Imperial) UOMin
Voltage Rating1 kV
Operating Temperature Range (Celsius)-55 °C to -100 °C
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Minimum Conductor Size (Imperial)1000 kcmil
Product FormSleeve-roll
