3M Products & Supplies

3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-1100-48A, 20/Case - 7000132411

Sold As: 20-Pack
SKU: 7000132411
MPN: 7000132411
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406518
3M ID: 80610294615
5 Digit UPC: 40651
$588.92 ($29.45 / Count)
Hurry up! Current stock:

Product Description

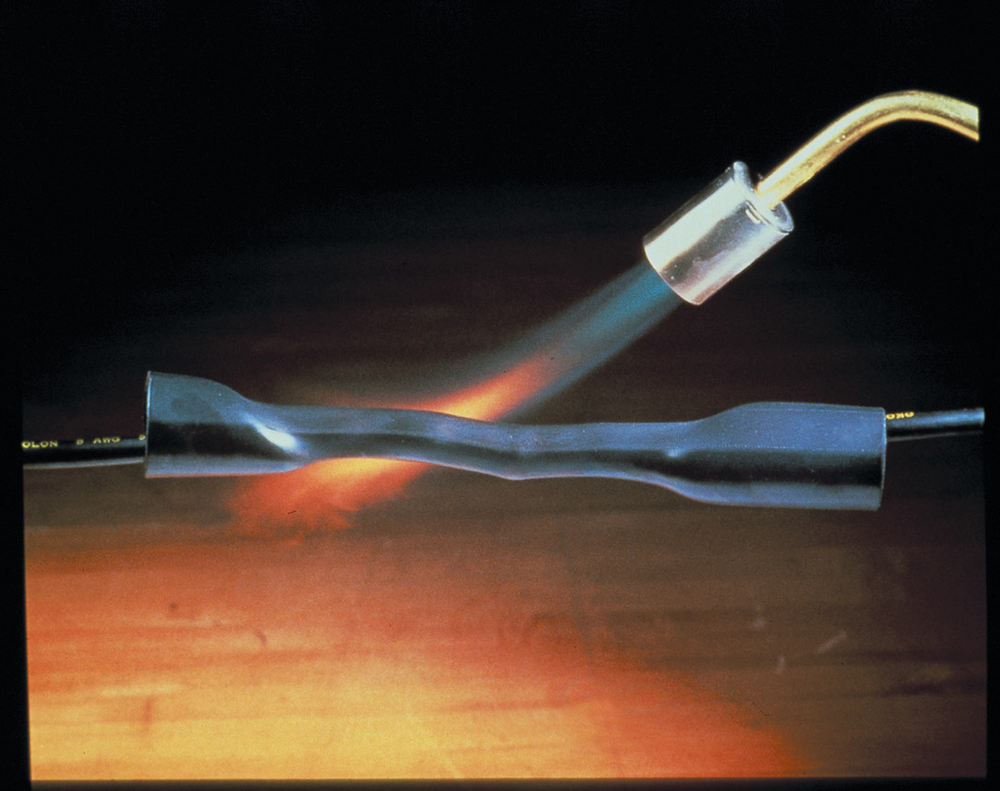

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Made of black cross-linked polyolefin
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • Offers reliable performance for electrical splices, connections and terminations
  • Superior resistance to abrasion, corrosion and chemicals
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Splice TypeHeat Shrink
Voltage Rating1 kV
Product TypeSleeve
Shrink Ratio3:1
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Halogen FreeNo
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature Range (Celsius)-55 °C to -100 °C
Mil SpecSAE-AMS-DTL-23053/15,Class 1
Overall Length (Imperial) UOMin
MaterialPolyolefin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Maximum Conductor Size (Imperial)4/0 AWG
Minimum Conductor Size (Metric)35 mm²
Inner Diameter Before Shrink (Imperial)1.1
Overall Length (Metric) UOMm
Inner Diameter After Shrink (Metric)9.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)1.22
Tubing TypeHeavy Wall
Minimum Expanded Tubing I. D.1.1
Product ColorBlack
Minimum Shrink Temperature (Celsius)121.0
Dielectric Strength (V/mil)500 V/mil
Maximum Operating Temperature (Celsius)100.0
Maximum Conductor Size (Metric)120 mm²
Minimum Expanded Tubing I. D. UOMin
ApplicationElectrical Insulation; Mechanically strong tubing
Overall Length (Imperial)48.0
UL Bug Voltage600 Volt
Minimum Conductor Size (Imperial)2 AWG
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.37
Product FormSleeve-roll
Units per Case20.0
Inner Diameter Before Shrink (Metric)27.9
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Adhesive LinedYes
Inner Diameter Before Shrink (Metric) UOMmm
UV ResistantYes
Inner Diameter After Shrink (Imperial) UOMin
