3M Products & Supplies

3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-1500-48A, 20/Case - 7000132412

Sold As: 20-Pack
SKU: 7000132412
MPN: 7000132412
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007406525
3M ID: 80610294623
5 Digit UPC: 40652
$833.77 ($41.69 / Count)
Hurry up! Current stock:

Product Description

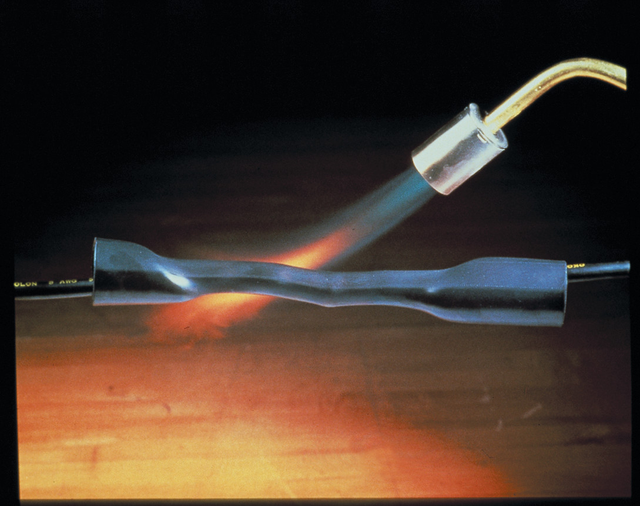

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Flame-retardant
  • Superior resistance to abrasion, corrosion and chemicals
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers reliable performance for electrical splices, connections and terminations
  • Made of black cross-linked polyolefin
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Shrink Temperature (Celsius)121.0
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeHeavy Wall
Overall Length (Imperial)48.0
ApplicationElectrical Insulation; Mechanically strong tubing
Operating Temperature Range (Celsius)-55 °C to -100 °C
Overall Length (Metric) UOMm
Inner Diameter After Shrink (Imperial)0.5
Overall Length (Metric)1.22
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric)38.1
Minimum Expanded Tubing I. D. UOMin
Maximum Conductor Size (Metric)240 mm²
Voltage Rating1 kV
UL Bug Voltage600 Volt
Operating Temperature (Celsius)-55 to 100 Degrees Celsius
Maximum Conductor Size (Imperial)400 kcmil
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Conductor Size (Imperial)3/0 AWG
Inner Diameter Before Shrink (Imperial)1.5
Units per Case20.0
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Halogen FreeNo
Inner Diameter Before Shrink (Metric) UOMmm
Product FormSleeve-roll
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Minimum Expanded Tubing I. D.1.5
Dielectric Strength (V/mil)500 V/mil
Splice TypeHeat Shrink
Shrink Ratio3:1
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
MaterialPolyolefin
Minimum Conductor Size (Metric)95 mm²
Maximum Operating Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric)12.7
UV ResistantYes
Adhesive LinedYes
Mil SpecSAE-AMS-DTL-23053/15,Class 1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product TypeSleeve
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
