3M High Shear Pressure Sensitive Cover Tape 2668, PSA, New, 5.2 mm x 500 m, 0.7, 25 Roll/Case
3M High Shear Pressure Sensitive Cover Tape 2668, PSA, New, 5.2 mm x 500 m, 0.7, 25 Roll/Case
3M High Shear Pressure Sensitive Cover Tape 2668, PSA, New, 5.2 mm x 500 m, 0.7, 25 Roll/Case
Previous Next

3M Products & Supplies

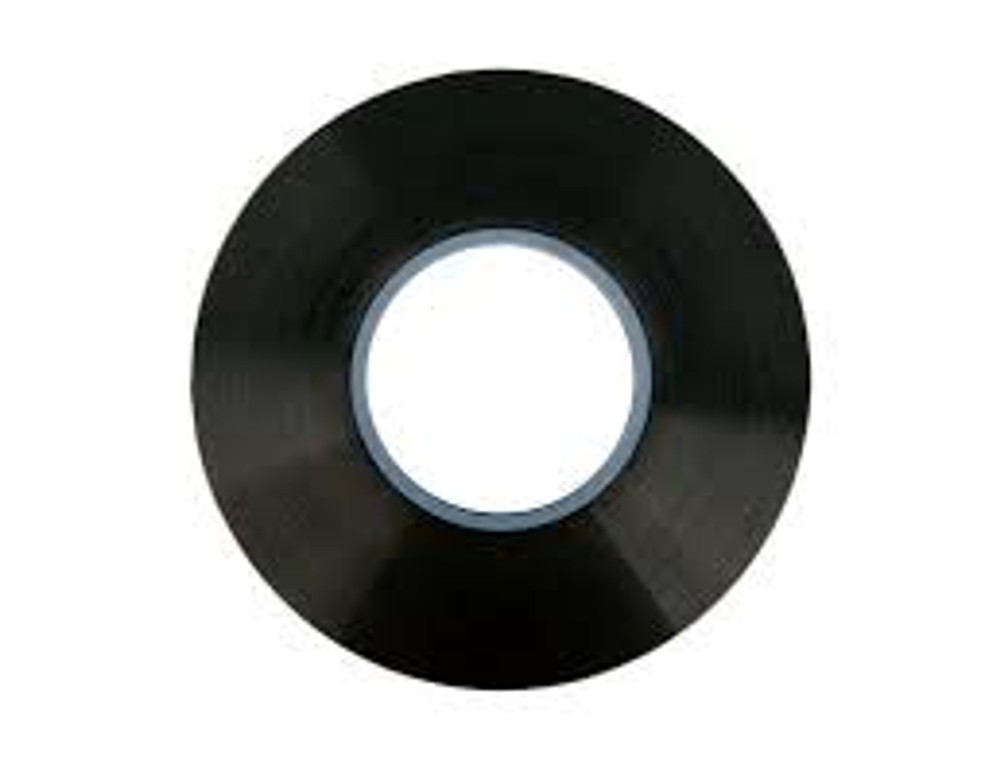

3M™ High Shear Pressure Sensitive Cover Tape 2668, PSA, New, 5.2 mm x 500 m, 0.7, 25 Roll/Case - 7100362343

Sold As: 25-Pack
SKU: 7100362343
MPN: 7100362343
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08887862984417
3M ID: XN400542991
$935.93 ($37.44 / Count)
Hurry up! Current stock:

Product Description

3M™ High Shear Pressure Sensitive Cover Tape 2668 is a transparent polyester tape with a synthetic, room temperature pressure sensitive adhesive (PSA) zone along each edge.

Features

  • Works well on 3M™ Polycarbonate Carrier Tapes
  • Suitable for components like WLCSP
  • Adhesive zones help reduce the risk of adhesive contamination or contact with devices during shipping and storage
  • 300 m or 500 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm, 21.3 mm, 25.5 mm, 37.4 mm and 49.4 mm
  • Reworkable and bakeable
  • Contact 3M for information on other width options
Spec Sheet



Downloads

Specifications

Maximum Sealing Temperature (Celsius)23.0
Overall Width (Imperial) UOMin
Overall Length (Imperial)546.807
Overall Width (Imperial)0.205
Overall Thickness (Imperial) UOMin
Minimum Sealing Temperature (Fahrenheit)73.0
Overall Thickness (Imperial)0.0024
Overall Thickness (Metric) UOMmm
Product UsageDiscrete Components; LEDs; Passive Components; WLCSP
Overall Width (Metric) UOMmm
Maximum Sealing Temperature (Fahrenheit)73.0
Overall Width (Metric)5.2
Overall Length (Imperial) UOMyd
Country of OriginSingapore
Haze Percentage6.0
ESD Material TypeConductive
Minimum Sealing Temperature (Celsius)23.0
Backing (Carrier) MaterialPolyester Film
Overall Length (Metric) UOMm
Overall Thickness (Metric)0.061
Overall Length (Metric)500.0
Elongation90.0 %
