3M Products & Supplies

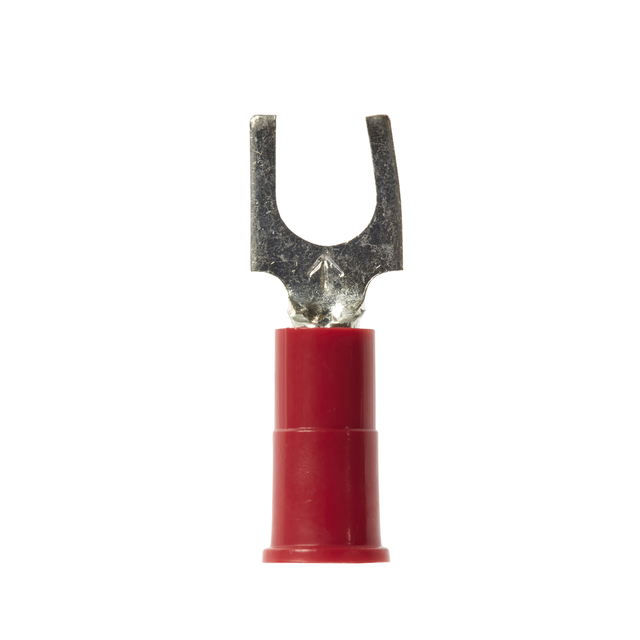

3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV18-10Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133651

Sold As: 10-Pack
SKU: 7000133651
MPN: 7000133651
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599938
3M ID: 80611602543
5 Digit UPC: 59993
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)7.62
Overall Width (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.85
Connection Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Terminal TypeFork
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial)0.19
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial)0.3
Overall Length (Metric) UOMmm
Connection Width (Metric)4.826
Insulation MaterialVinyl
Overall Length (Metric)21.59
Overall Width (Imperial) UOMin
Terminal StyleBlock
