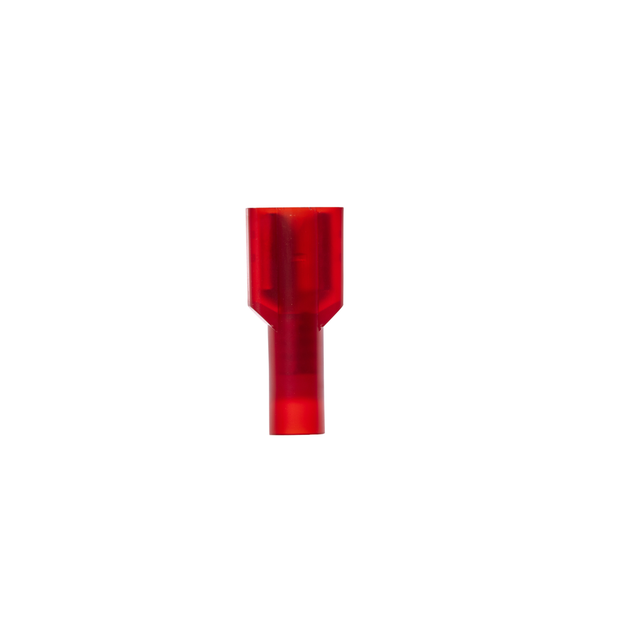

3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133664

Sold As: 10-Pack
SKU: 7000133664
MPN: 7000133664
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600085
3M ID: 80611602691
5 Digit UPC: 60008
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)18 AWG
Mates with Female Width0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
MaterialPlastic
Mates with Male Tab Width (W')0.25 Inch
Terminal StyleStandard
Connection Width (Metric)6.35
Packaging25 per bag
Overall Length (Metric)22.098
Pad Width0.25
Barrel StyleButted
Connection Width (Metric) UOMmm
Conductor Sizes (Imperial)22 - 18 AWG
Barrel Length (Metric)6.35 mm
Maximum Insulation Outside Diameter0.145 in
Disconnect TypeFemale
Minimum Conductor Size (Metric).34 mm²
Maximum Conductor Size (Metric)1 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7
Tab Width0.250
Terminal TypeDisconnect
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel Inside Diameter0.08 Inch
Maximum Recommended Voltage Rating UOMV
Overall Length (Metric) UOMmm
Maximum Voltage Rating600 to 1000 V
Max. Number of Cores419.0
Overall Length (Imperial)0.87
Units per bag25
Fastener OrientationFemale
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Units per Case10.0
