3M™ Highland™ Nylon Fully Insulated Female Disconnect Terminal FDI18-250Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133660

Sold As: 10-Pack
SKU: 7000133660
MPN: 7000133660
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600030
3M ID: 80611602642
5 Digit UPC: 60003
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

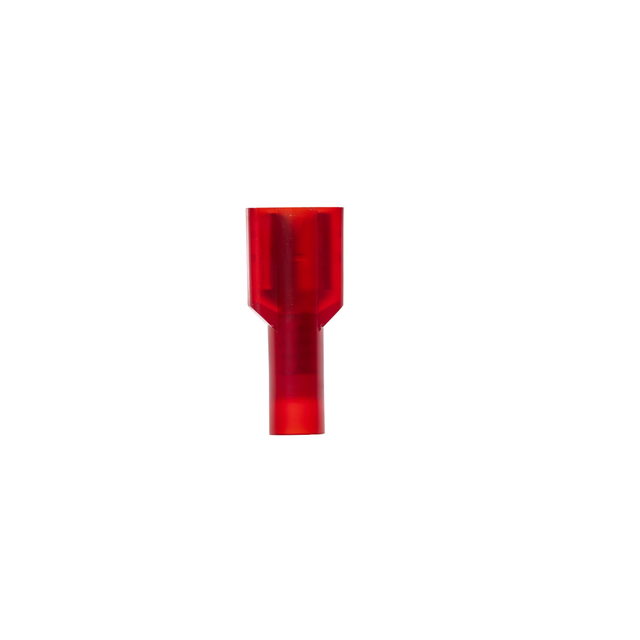

3M™ Highland™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Metric)22.098
Connection Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Female Width0.25 Inch
Overall Width (Imperial)0.37
Connection Width (Metric)6.35
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating UOMV
Units per Case10.0
Tab Width0.250
Overall Length (Imperial) UOMin
Units per bag25
Packaging25 per bag
Barrel Length (Imperial)0.25 Inch
UL File NumberE70512
Terminal TypeDisconnect
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Fastener OrientationFemale
MaterialPlastic
Overall Diameter (Metric)5.84
Overall Diameter (Imperial)0.23
Insulation MaterialNylon
Barrel Inside Diameter0.08 Inch
Conductor Sizes (Imperial)22 - 18 AWG
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Diameter (Metric) UOMmm
Overall Width (Metric) UOMmm
Disconnect TypeFemale
Terminal StyleFully Insulated
Barrel Length (Metric)6.35 mm
Overall Length (Imperial)0.87
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial)0.25
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Imperial) UOMin
Maximum Conductor Size (Metric)1 mm²
Diameter (D)0.23 Inch
Pad Width0.25
Barrel StyleButted
Max. Number of Cores415.0
Maximum Recommended Voltage Rating600.0
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
