3M Products & Supplies

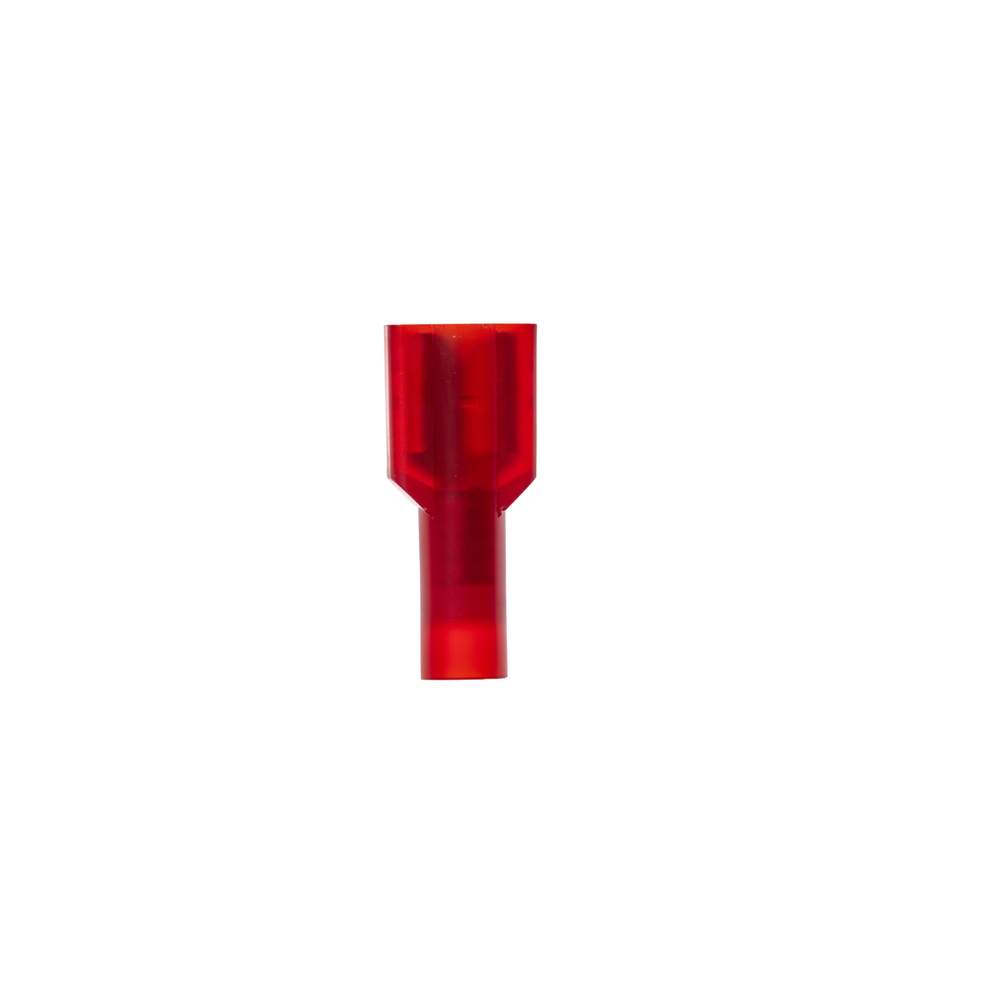

3M™ Highland™ Nylon Fully Insulated Male Disconnect Terminal MTI10-250Q, AWG 12-10, 25/bag, 10 Bags/Case - 7000133667

Sold As: 10-Pack
SKU: 7000133667
MPN: 7000133667
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600221
3M ID: 80611602832
5 Digit UPC: 60022
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Nylon Fully Insulated Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nlon-insulated, butted-seam barrel offers allows for insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
UL File NumberE70512
Diameter (D)0.39 Inch
Overall Width (Imperial) UOMin
Barrel Inside Diameter0.15 Inch
Overall Width (Metric) UOMmm
Tab Width0.250
Overall Width (Imperial)0.47
Maximum Conductor Size (Metric)6 mm²
Fastener OrientationMale
Overall Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Voltage Rating600 to 1000 V
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)12 AWG
Overall Diameter (Imperial)0.39
Terminal StyleFully Insulated
Units per Case10.0
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Metric) UOMmm
Overall Length (Imperial)1.05
Mates with Female Width0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Insulation Outer Diameter (Metric) UOMmm
Terminal TypeDisconnect
Connection Width (Imperial)0.25
Barrel StyleButted
Mates with Male Tab Width (W')0.25 Inch
Overall Length (Metric)26.67
MaterialPlastic
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Max. Number of Cores422.0
Disconnect TypeMale
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial) UOMin
Units per bag25
Overall Diameter (Imperial) UOMin
Connection Width (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Conductor Sizes (Imperial)12 - 10 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Connection Width (Metric)6.35
Minimum Conductor Size (Metric)4 mm²
Pad Width0.25
Maximum Recommended Voltage Rating600.0
Insulation MaterialNylon
Overall Diameter (Metric)9.9
Barrel Length (Metric)6.35 mm
Packaging25 per bag
