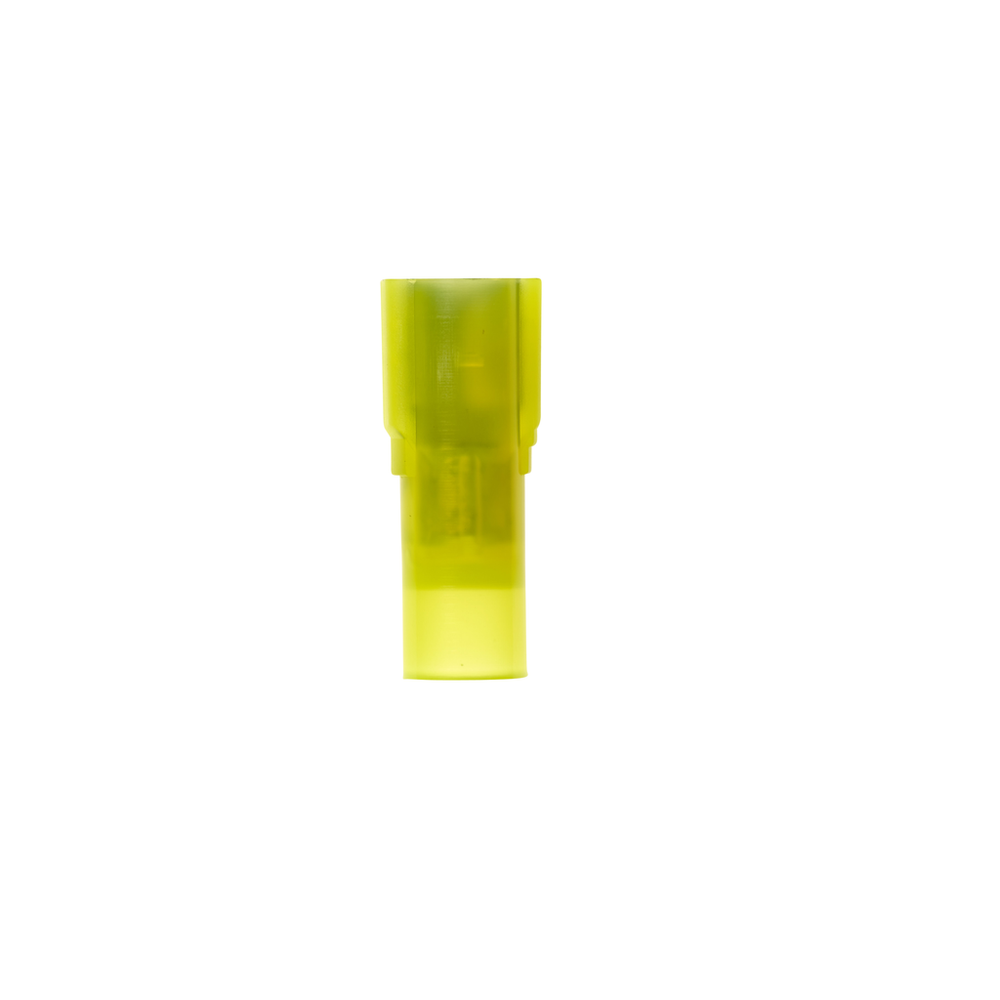

3M™ Highland™ Nylon Fully Insulated Female Disconnect Termial FDI10-250Q, AWG 12-10, 25/bag, 10 Bags/Case - 7000133657

Sold As: 10-Pack
SKU: 7000133657
MPN: 7000133657
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599990
3M ID: 80611602600
5 Digit UPC: 59999
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outside Diameter0.145 in
Connection Width (Metric) UOMmm
Barrel Inside Diameter0.128 Inch
Insulation MaterialNylon
Overall Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
Disconnect TypeFemale
Tab Width0.250
Overall Diameter (Metric) UOMmm
Terminal TypeDisconnect
Maximum Conductor Size (Imperial)10 AWG
Fastener OrientationFemale
Connection Width (Imperial)0.25
Diameter (D)0.23 Inch
Overall Width (Imperial) UOMin
Mates with Female Width0.25 Inch
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.37
Max. Number of Cores412.0
Maximum Insulation Outer Diameter (Metric)3.7
Minimum Conductor Size (Metric)4 mm²
Overall Length (Imperial)0.99
UL File NumberE70512
Overall Diameter (Imperial)0.23
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Length (Metric)6.35 mm
Maximum Recommended Voltage Rating UOMV
Connection Width (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Barrel StyleButted
Terminal StyleFully Insulated
Overall Width (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Units per Case10.0
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Metric)5.84
Units per bag25
Maximum Voltage Rating600 to 1000 V
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Length (Metric)25.146
Packaging25 per bag
Conductor Sizes (Imperial)12 - 10 AWG
Pad Width0.25
MaterialPlastic
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric)6.35
