3M Products & Supplies

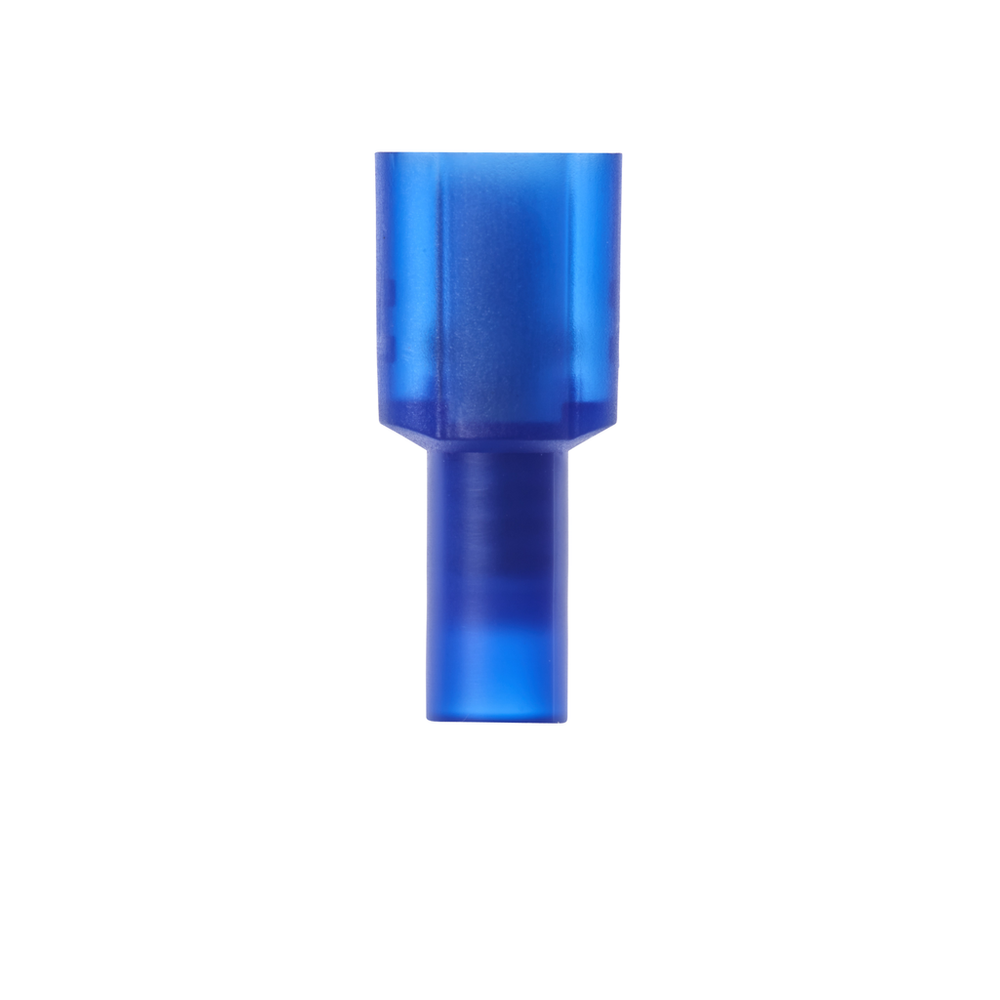

3M™ Highland™ Nylon Fully Insulated Male Disconnect Terminal MTI14-250Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133668

Sold As: 10-Pack
SKU: 7000133668
MPN: 7000133668
For an accurate lead time please contact us
UPC: 00051128600245
3M ID: 80611602857
5 Digit UPC: 60024
$92.90 ($9.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Nylon Fully Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Nylon-insulated, butted-seam barrel allows for easy insertion of wires
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Units per Case10.0
Overall Length (Imperial)0.95
Maximum Insulation Outer Diameter (Imperial) UOMin
Max. Number of Cores423.0
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial)0.17
Insulation MaterialNylon
Terminal StyleFully Insulated
Connection Width (Metric)6.35
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel Length (Metric)6.35 mm
Pad Width0.25
Connection Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Barrel Length (Imperial)0.25 Inch
Maximum Recommended Voltage Rating600.0
Units per bag25
Overall Length (Metric) UOMmm
Maximum Conductor Size (Metric)2.5 mm²
UL File NumberE70512
Overall Length (Metric)24.13
Mates with Male Tab Width (W')0.25 Inch
Maximum Insulation Outside Diameter0.145 in
Overall Width (Imperial) UOMin
Barrel Inside Diameter0.085 Inch
Mates with Female Width0.25 Inch
Tab Width0.250
Overall Diameter (Imperial) UOMin
Connection Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Disconnect TypeMale
Overall Diameter (Imperial)0.3
Overall Width (Metric) UOMmm
MaterialPlastic
Conductor Sizes (Imperial)16 - 14 AWG
Minimum Conductor Size (Metric)1.5 mm²
Overall Diameter (Metric)7.62
Diameter (D)0.3 Inch
Minimum Conductor Size (Imperial)16 AWG
Overall Diameter (Metric) UOMmm
Overall Width (Imperial)0.44
Fastener OrientationMale
Packaging25 per bag
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeDisconnect
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial)0.25
