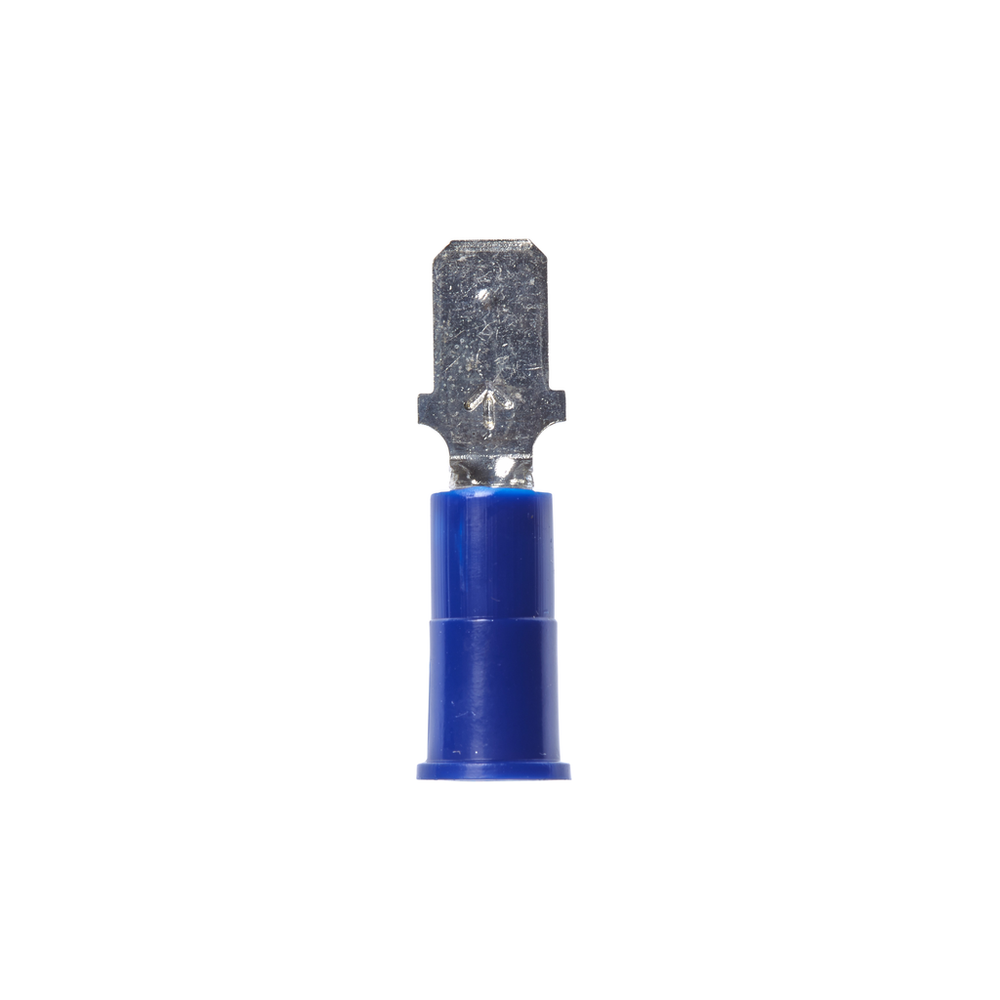

3M™ Highland™ Vinyl Insulated Male Disconnect Terminal MTV14-250Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133670

Sold As: 10-Pack
SKU: 7000133670
MPN: 7000133670
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600290
3M ID: 80611602907
5 Digit UPC: 60029
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Disconnect TypeMale
Overall Length (Imperial) UOMin
Packaging25 per bag
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Metric)1.5 mm²
Maximum Insulation Outer Diameter (Metric) UOMmm
UL File NumberE70512
Barrel Length (Metric)6.35 mm
MaterialPlastic
Fastener OrientationMale
Maximum Insulation Outer Diameter (Metric)3.7
Product ColorBlue
Tab Width0.250
Overall Length (Metric)23.622
Minimum Conductor Size (Imperial)16 AWG
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Recommended Voltage Rating600.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Barrel Inside Diameter0.085 Inch
Maximum Conductor Size (Metric)2.5 mm²
Terminal TypeDisconnect
Units per bag25
Barrel StyleButted
Connection Width (Metric) UOMmm
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Width (Imperial)0.25
Max. Number of Cores425.0
Overall Width (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Insulation MaterialVinyl
Overall Length (Imperial)0.93
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Voltage Rating600 to 1000 V
Pad Width0.25
Units per Case10.0
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric)6.35
Connection Width (Imperial)0.25
Mates with Female Width0.25 Inch
Solution forWireless Network: Infrastructure Accessories
Mates with Male Tab Width (W')0.25 Inch
