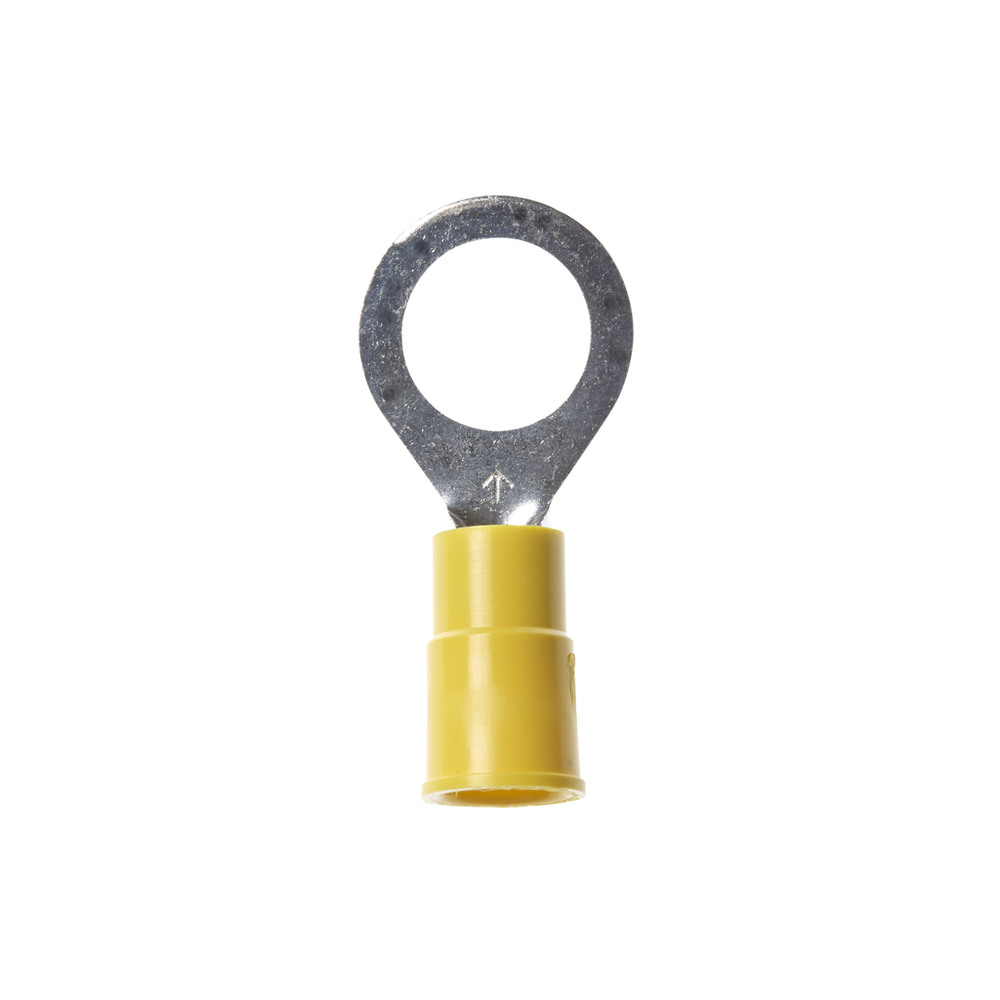

3M™ Highland™ Vinyl Insulated Ring Terminal RV10-516Q, AWG 12-10, 25/bag, 10 Bags/Case - 7000133674

Sold As: 10-Pack
SKU: 7000133674
MPN: 7000133674
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600351
3M ID: 80611602964
5 Digit UPC: 60035
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Sizes5/16 inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size5/16 Inch
Maximum Insulation Outside Diameter0.145 in
Stud Size (Metric)7938.0
Maximum Operating Temperature (Fahrenheit)221.0
Units per bag25
Terminal TypeRing
Clearance (C)0.44 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE23438
Overall Width (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Metric)13.462
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)5.26
Dimension E (Metric)25.15
Maximum Insulation Outer Diameter (Metric)3.7
Insulation MaterialVinyl
Maximum Recommended Voltage Rating600.0
Minimum Stud Diameter (Metric) UOMmm
Barrel StyleButted
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)1.26
Overall Length (Metric) UOMmm
Dimension E0.99 Inch
Packaging25 per bag
Units per Case10.0
Overall Length (Metric)32.004
Minimum Stud Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Inside Diameter0.135 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Connection TypeCrimp
Overall Width (Imperial)0.53
Ring TypeStandard
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Metric)6.35 mm
Minimum Stud Diameter (Metric)5.0
Overall Width (Imperial) UOMin
MaterialPlastic
Terminal StyleStandard
