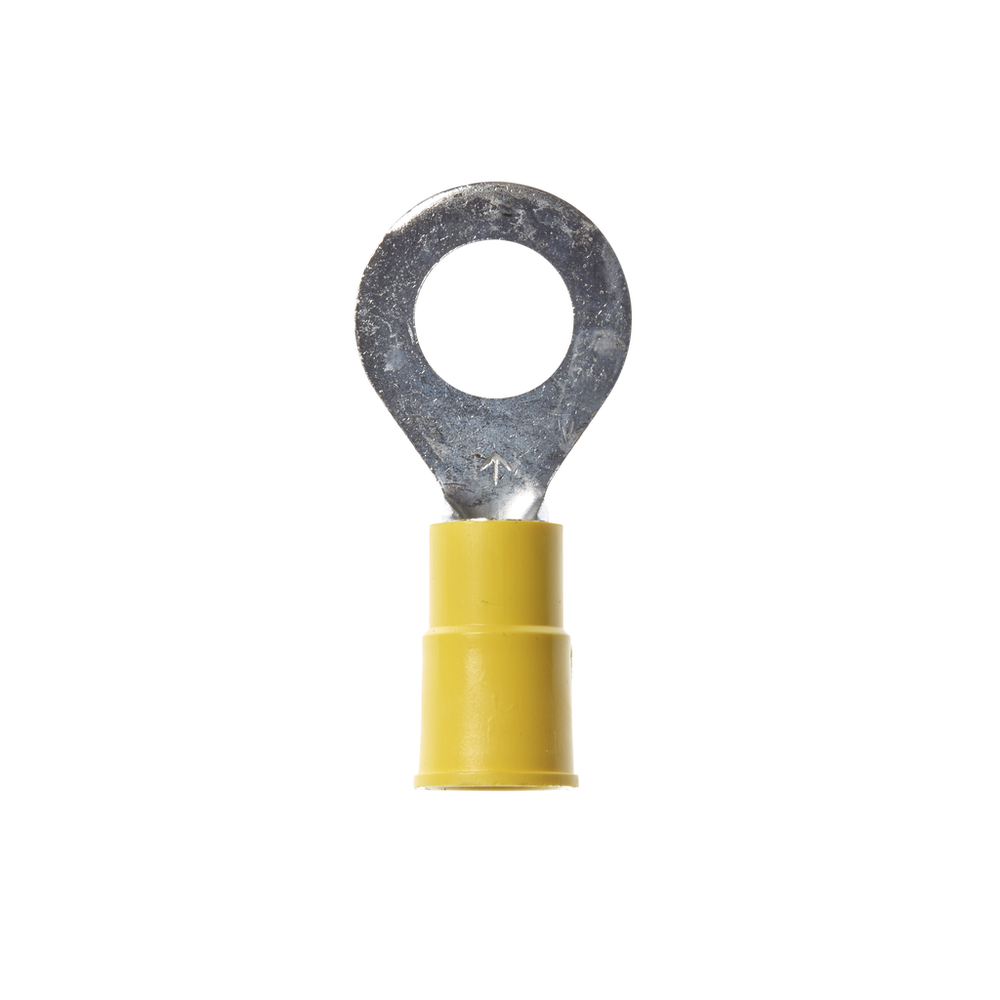

3M™ Highland™ Vinyl Insulated Ring Terminal RV10-6Q, AWG 12-10, 25/bag, 250/Case - 7010401000

Sold As: 250-Pack
SKU: 7010401000
MPN: 7010401000
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600368
3M ID: 80611602972
5 Digit UPC: 60036
$108.26 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Length (Metric)6.35 mm
Overall Length (Imperial)1.03
Stud Size#6
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Packaging25 per bag
Clearance (C)0.29 Inch
Ring TypeStandard
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Minimum Stud Diameter (Metric)5.0
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Maximum Recommended Voltage Rating UOMV
Barrel StyleButted
Maximum Recommended Voltage Rating600.0
Barrel Inside Diameter0.135 Inch
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.38
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26
Insulation MaterialVinyl
Terminal TypeRing
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Terminal StyleStandard
Connection TypeCrimp
Dimension E0.84 Inch
Overall Width (Imperial) UOMin
