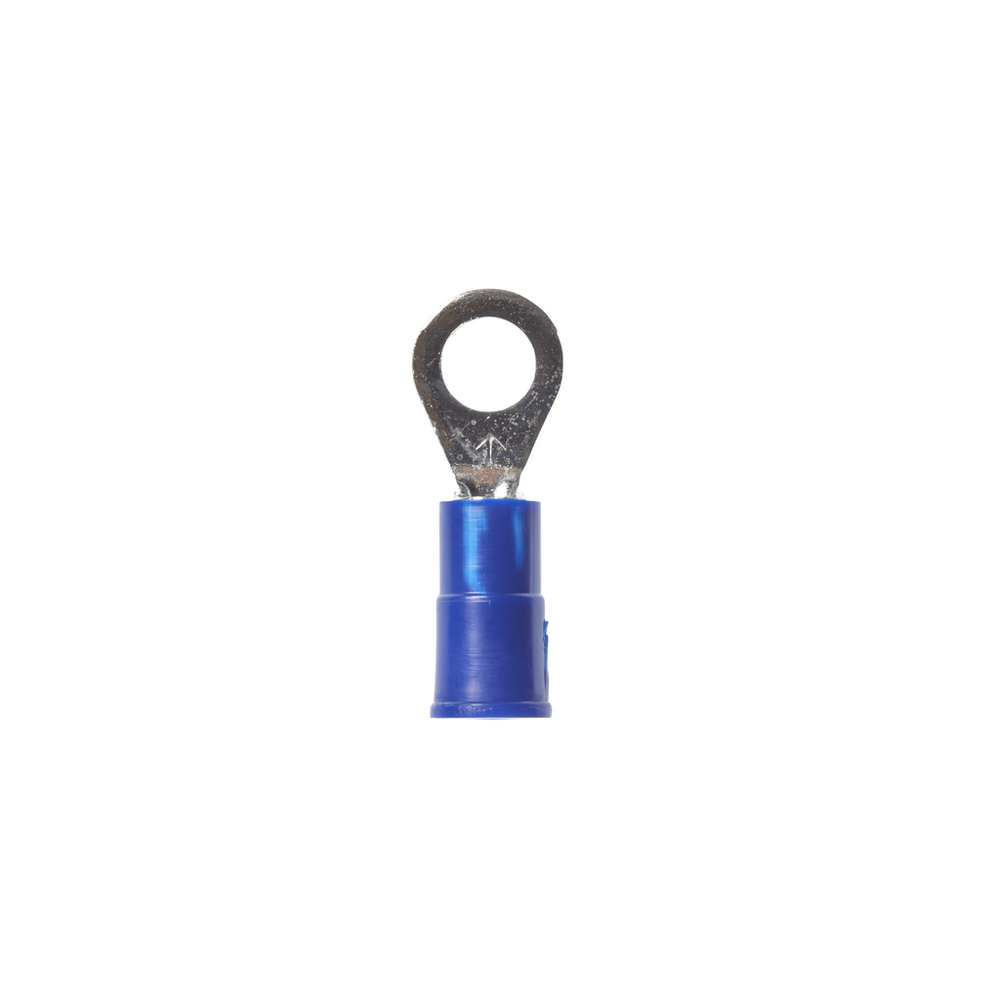

3M™ Highland™ Vinyl Insulated Ring Terminal RV14-14Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133677

Sold As: 10-Pack
SKU: 7000133677
MPN: 7000133677
For an accurate lead time please contact us
UPC: 00051128600399
3M ID: 80611603004
5 Digit UPC: 60039
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMmm
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Stud Diameter (Metric)6.35
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Clearance (C)0.4 Inch
Maximum Recommended Voltage Rating UOMV
Overall Width (Metric)11.938
Overall Length (Imperial)1.08
Stud Size (Metric)635.0
Overall Width (Imperial)0.47
Packaging25 per bag
Maximum Conductor Size (Metric)2.08
Overall Width (Imperial) UOMin
Barrel Inside Diameter0.09 Inch
Dimension E0.85 Inch
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Overall Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.17
Dimension E (Metric)21.59
Stud Size1/4 Inch
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeCrimp
Units per bag25
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Length (Metric)6.35 mm
MaterialPlastic
Insulation MaterialVinyl
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial) UOMin
Overall Length (Metric)27.432
Units per Case10.0
Maximum Insulation Outside Diameter0.145 in
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Metric)3.7
Stud Sizes1/4 Inch
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE23438
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
