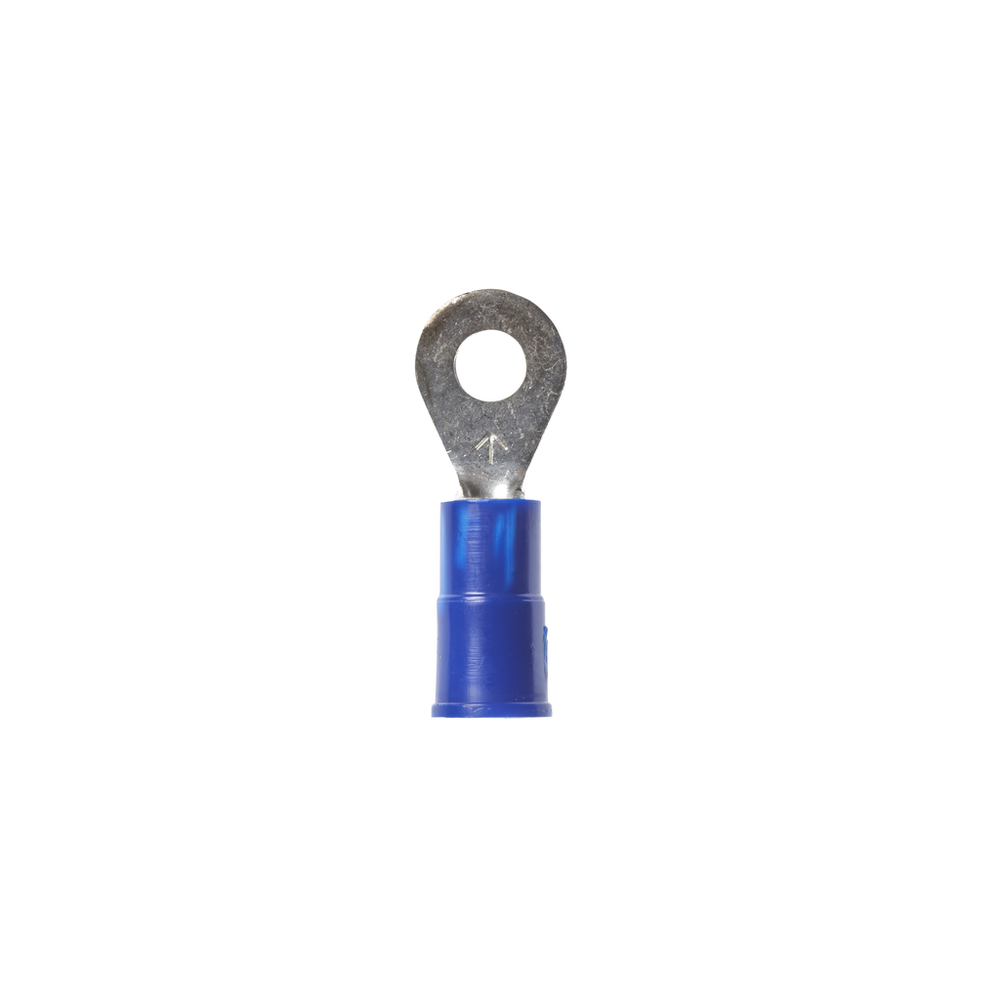

3M™ Highland™ Vinyl Insulated Ring Terminal RV14-8Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133679

Sold As: 10-Pack
SKU: 7000133679
MPN: 7000133679
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600429
3M ID: 80611603038
5 Digit UPC: 60042
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Ring TypeStandard
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Length (Metric)23.622
Barrel Inside Diameter0.09 Inch
Maximum Insulation Outside Diameter0.145 in
Packaging25 per bag
Overall Length (Imperial)0.93
MaterialPlastic
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Stud Size (Metric)4166.0
Dimension E (Metric)19.81
Minimum Stud Diameter (Imperial) UOMin
Terminal TypeRing
Barrel StyleButted
Stud Size#8
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.33 Inch
Minimum Stud Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Width (Imperial)0.31
Minimum Conductor Size (Metric)1.31 mm²
Minimum Stud Diameter (Metric)4.0
Barrel Length (Metric)6.35 mm
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection TypeCrimp
Units per bag25
UL File NumberE23438
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outer Diameter (Metric)3.7
Insulation MaterialVinyl
Overall Width (Metric)7.874
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.78 Inch
Units per Case10.0
