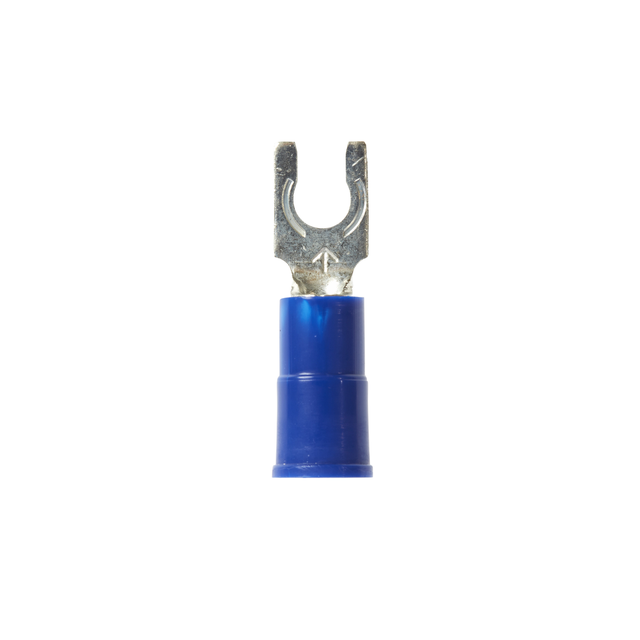

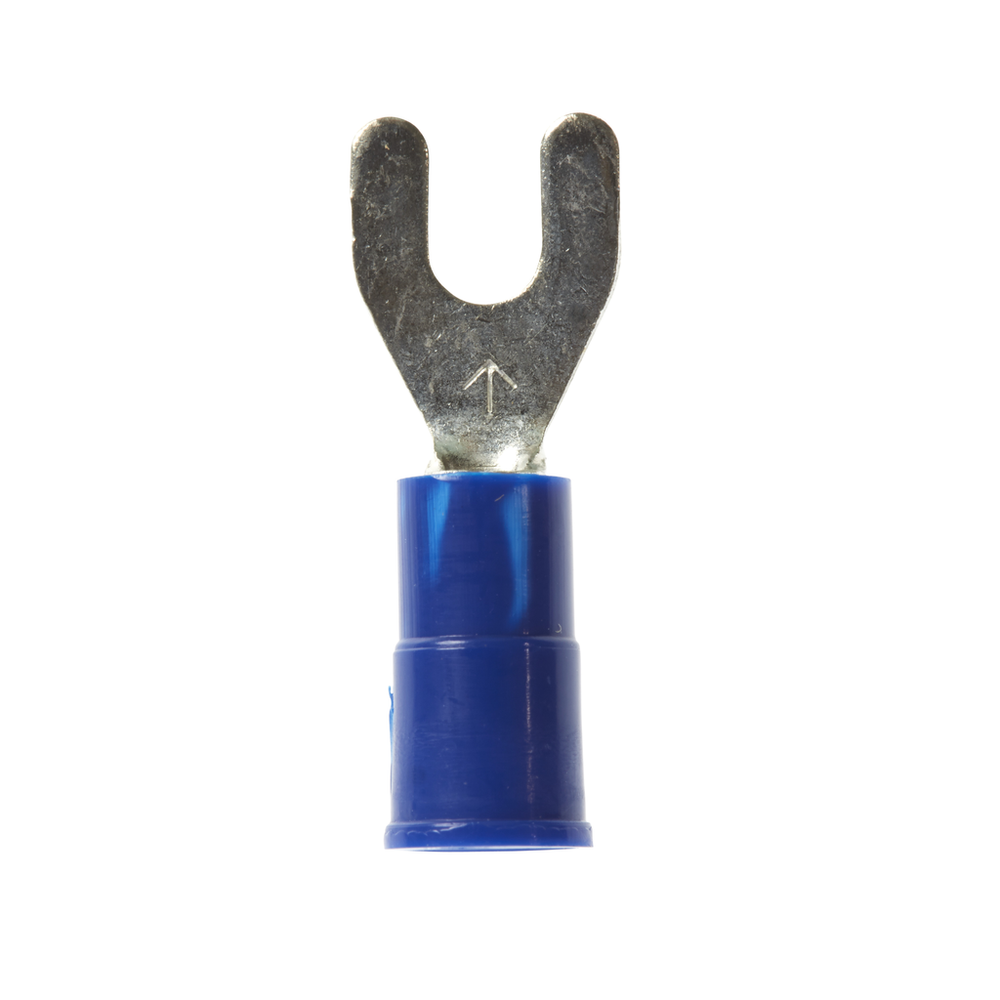

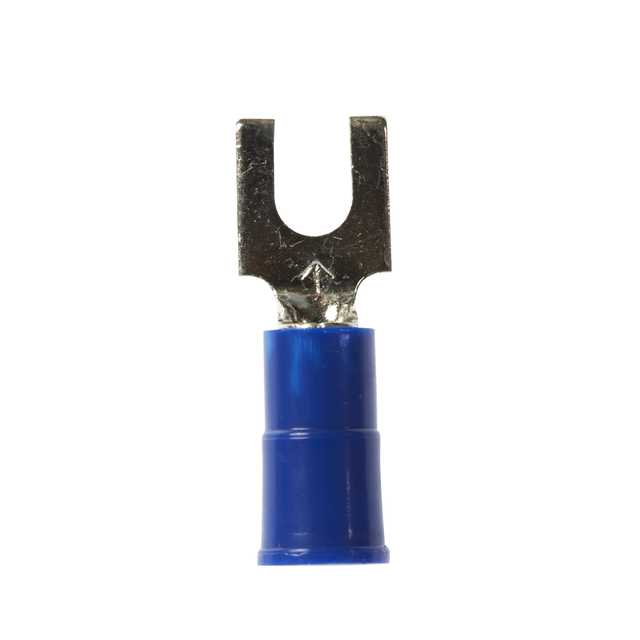

3M™ Highland™ Vinyl Insulated Fork Terminal FV14-8Q, AWG 16-14, 25/bag, 10 Bags/Case - 7010400990

Sold As: 10-Pack
SKU: 7010400990
MPN: 7010400990
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600139
3M ID: 80611602741
5 Digit UPC: 60013
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Wider-tongue design for use on free-standing studs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Fork TypeStandard
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Size#8
Barrel Inside Diameter0.09 Inch
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
Clearance (C)0.29 Inch
Overall Length (Imperial)0.9
Terminal StyleStandard
Maximum Conductor Size (Metric)2.08 mm²
UL File NumberE23438
Overall Width (Imperial)0.34
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Dimension E0.74 Inch
Minimum Conductor Size (Metric)1.31 mm²
Packaging25 per bag
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
