3M Products & Supplies

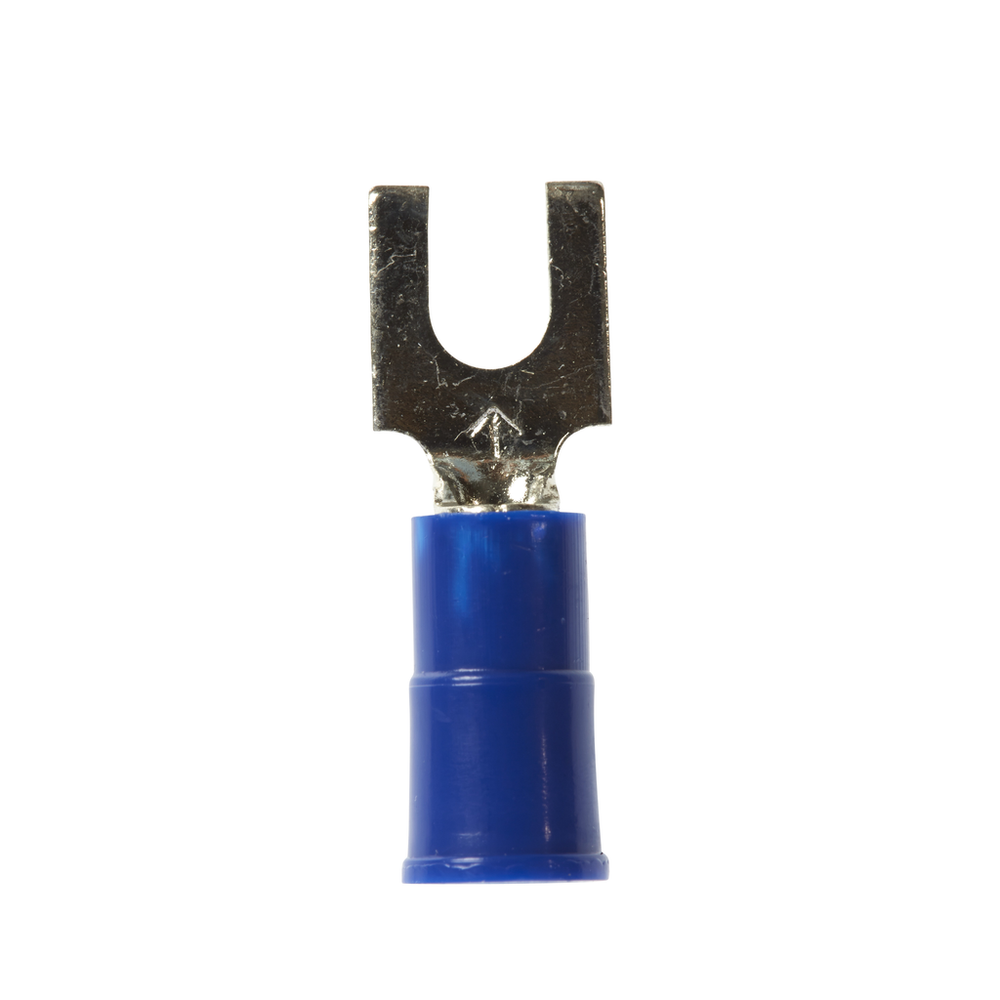

3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV14-8Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133650

Sold As: 10-Pack
SKU: 7000133650
MPN: 7000133650
For an accurate lead time please contact us
UPC: 00051128599921
3M ID: 80611602535
5 Digit UPC: 59992
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Suitable for use in a terminal block
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Connection Width (Metric)4.166
Connection Width (Metric) UOMmm
Terminal StyleBlock
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.3
Minimum Conductor Size (Metric)1.31 mm²
Insulation MaterialVinyl
Connection Width (Imperial)0.164
Overall Length (Metric)21.59
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08 mm²
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Overall Width (Metric)7.62
Terminal TypeFork
Overall Width (Metric) UOMmm
Overall Length (Imperial)0.85
