3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV14-8Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133666

Sold As: 10-Pack
SKU: 7000133666
MPN: 7000133666
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600191
3M ID: 80611602808
5 Digit UPC: 60019
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

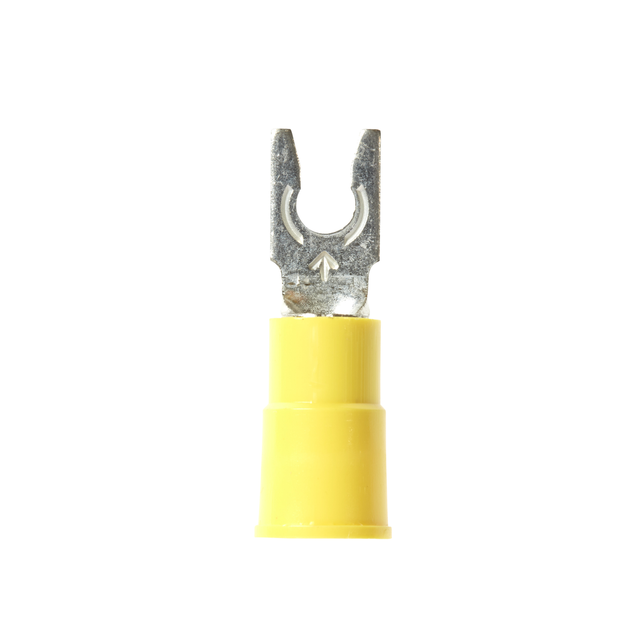

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)22.352
Terminal StyleLocking
UL File NumberE23438
Overall Width (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Stud Size#8
MaterialPlastic
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial) UOMin
Dimension E0.7 Inch
Maximum Voltage Rating600 to 1000 V
Overall Length (Imperial)0.88
Maximum Conductor Size (Metric)2.08 mm²
Units per bag25
Packaging25 per bag
Overall Width (Metric)7.62
Insulation MaterialVinyl
Barrel Inside Diameter0.09 Inch
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial)0.17
Clearance (C)0.25 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Barrel StyleButted
Minimum Conductor Size (Metric)1.31 mm²
Units per Case10.0
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Stud Size (Metric)4166.0
Dimension E (Metric)17.78
Product ColorBlue
Maximum Lock Width0.34 Inch
Barrel Length (Metric)6.35 mm
Terminal TypeFork
Max. Number of Cores421.0
Fork TypeLocking
Maximum Insulation Outside Diameter0.145 in
Barrel Length (Imperial)0.25 Inch
Maximum Recommended Voltage Rating600.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.3
Overall Width (Imperial) UOMin
