3M Products & Supplies

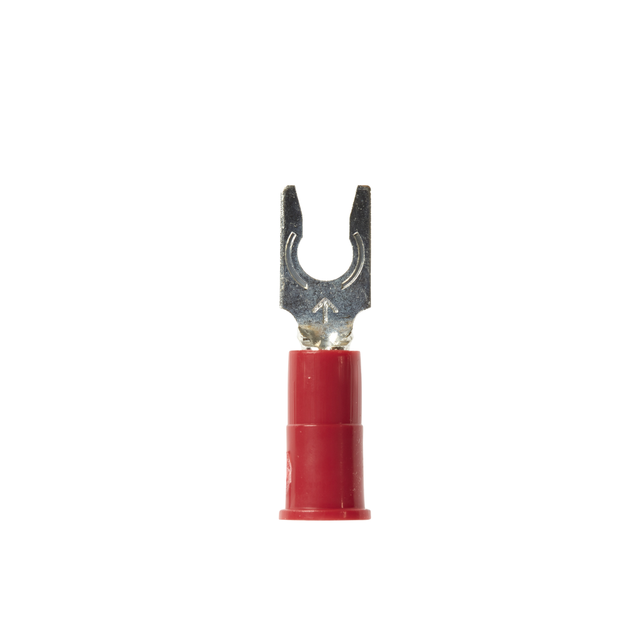

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV10-8Q, AWG 12-10, 25/bag, 10 Bags/Case - 7010321020

Sold As: 10-Pack
SKU: 7010321020
MPN: 7010321020
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600160
3M ID: 80611602774
5 Digit UPC: 60016
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial)0.25
Insulation MaterialVinyl
Fork TypeLocking
Overall Width (Imperial) UOMin
Stud Size#8
Terminal TypeFork
Minimum Conductor Size (Metric)3.31 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging25 per bag
Maximum Conductor Size (Metric)5.26 mm²
Overall Length (Imperial)1.03
Minimum Conductor Size (Imperial)12 AWG
Barrel Length (Imperial)0.25 Inch
Terminal StyleLocking
Dimension E0.83 Inch
Overall Length (Imperial) UOMin
Barrel StyleButted
Clearance (C)0.28 Inch
UL File NumberE23438
Barrel Inside Diameter0.135 Inch
Maximum Lock Width0.35 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial)0.32
