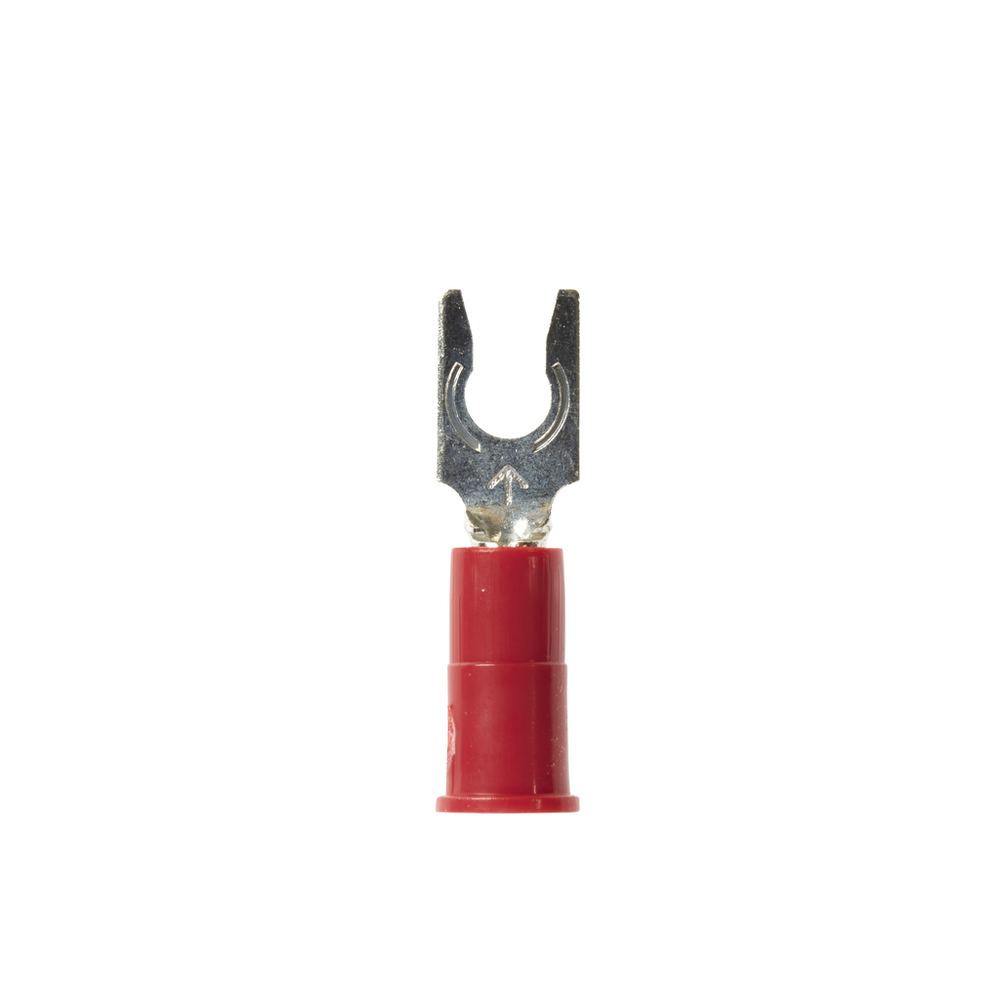

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV18-8Q, AWG 22-18, 25/bag, 10 Bags/Case - 7100026994

Sold As: 10-Pack
SKU: 7100026994
MPN: 7100026994
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600214
3M ID: 80611602824
5 Digit UPC: 60021
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Width (Metric)7.62
Barrel Inside Diameter0.07 Inch
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size (Metric)4166.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Terminal TypeFork
UL File NumberE23438
Clearance (C)0.25 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Dimension E0.7 Inch
Dimension E (Metric)17.78
Maximum Insulation Outer Diameter (Imperial)0.145
Units per bag25
Overall Width (Imperial)0.3
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.88
Packaging25 per bag
Insulation MaterialVinyl
Barrel Length (Metric)6.35 mm
Stud Size#8
Terminal StyleLocking
Barrel StyleButted
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Metric)22.35
Units per Case10.0
Maximum Lock Width0.34 Inch
Maximum Conductor Size (Imperial)18 AWG
Fork TypeLocking
