3M Products & Supplies

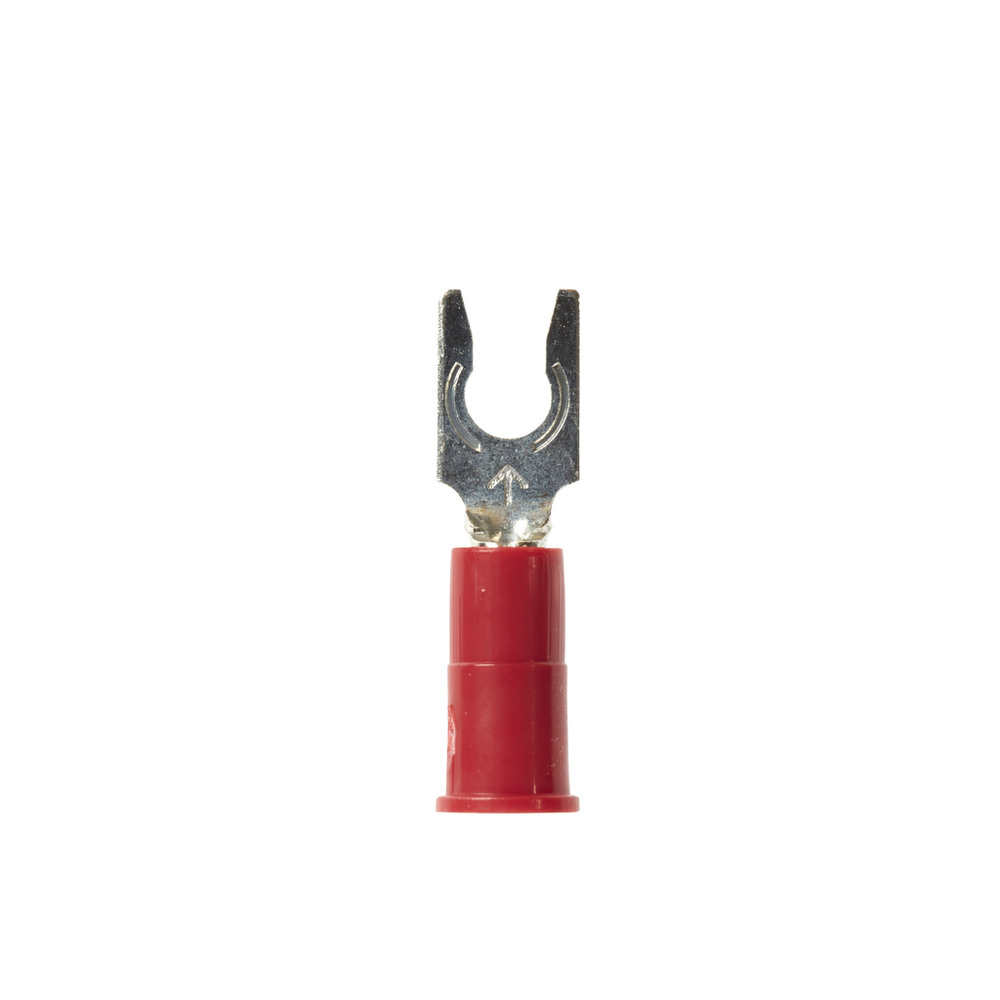

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV18-6Q, AWG 22-18, 25/bag, 10 Bags/Case - 7010400993

Sold As: 10-Pack
SKU: 7010400993
MPN: 7010400993
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600207
3M ID: 80611602816
5 Digit UPC: 60020
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Packaging25 per bag
Clearance (C)0.25 Inch
UL File NumberE23438
Fork TypeLocking
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Imperial) UOMin
Terminal StyleLocking
Barrel Inside Diameter0.07 Inch
Barrel StyleButted
Dimension E0.7 Inch
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Terminal TypeFork
Overall Width (Imperial)0.25
Maximum Lock Width0.27 Inch
Overall Length (Imperial)0.88
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Size#6
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)18 AWG
