3M Products & Supplies

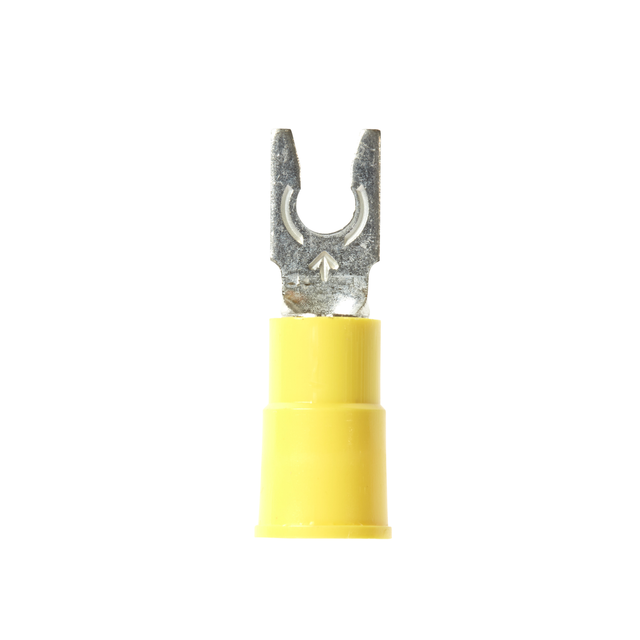

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV14-6Q, AWG 16-14, 25/bag, 10 Bags/Case - 7010350241

Sold As: 10-Pack
SKU: 7010350241
MPN: 7010350241
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600184
3M ID: 80611602790
5 Digit UPC: 60018
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)0.88
UL File NumberE23438
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Barrel Inside Diameter0.09 Inch
Maximum Lock Width0.27 Inch
Dimension E0.7 Inch
Maximum Conductor Size (Metric)2.08 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Clearance (C)0.25 Inch
Packaging25 per bag
Barrel StyleButted
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.25
Stud Size#6
Terminal StyleLocking
Insulation MaterialVinyl
Fork TypeLocking
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
