3M Products & Supplies

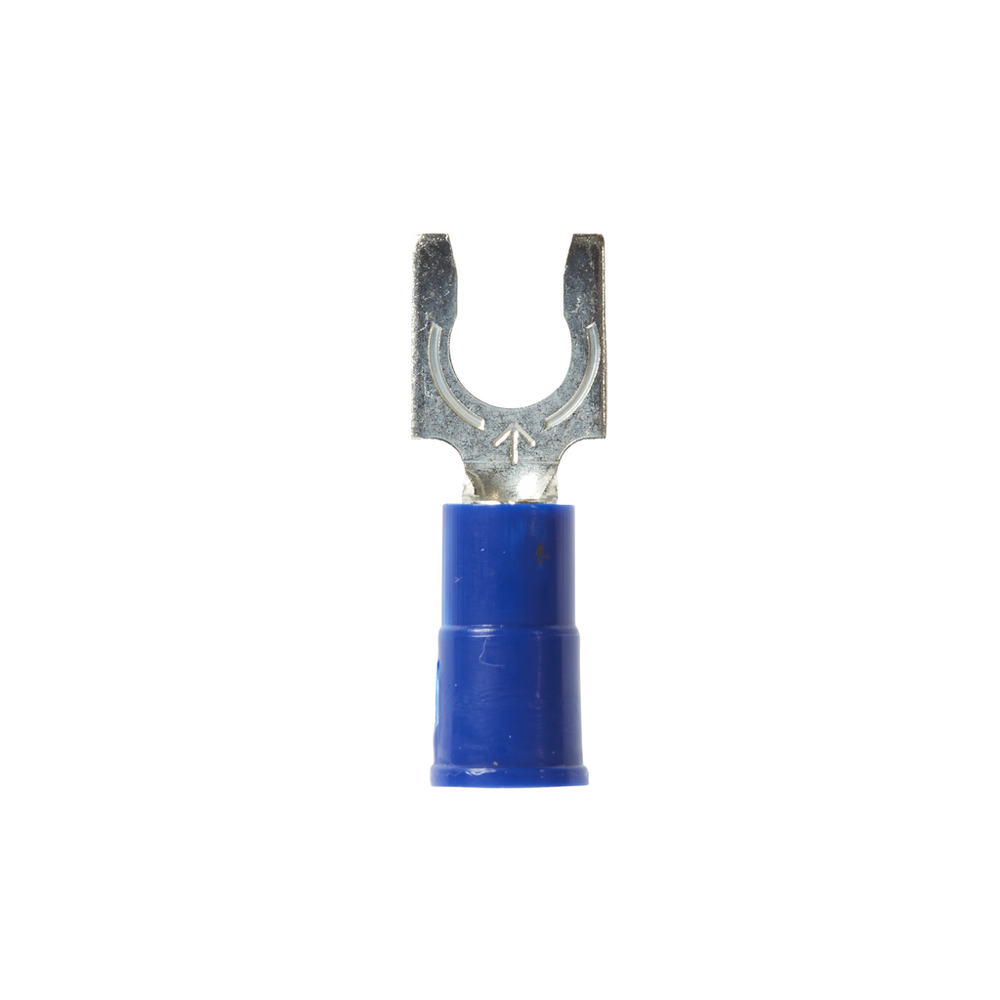

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV14-10Q, AWG 16-14, 25/bag, 10 Bags/Case - 7010400992

Sold As: 10-Pack
SKU: 7010400992
MPN: 7010400992
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600177
3M ID: 80611602782
5 Digit UPC: 60017
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.32
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size#10
Maximum Insulation Outer Diameter (Imperial)0.17
UL File NumberE23438
Overall Width (Imperial) UOMin
Terminal TypeFork
Maximum Lock Width0.35 Inch
Minimum Conductor Size (Metric)1.31 mm²
Clearance (C)0.25 Inch
Fork TypeLocking
Packaging25 per bag
Overall Length (Imperial) UOMin
Terminal StyleLocking
Barrel StyleButted
Maximum Conductor Size (Metric)2.08 mm²
Overall Length (Imperial)0.88
Dimension E0.7 Inch
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.09 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
