3M Products & Supplies

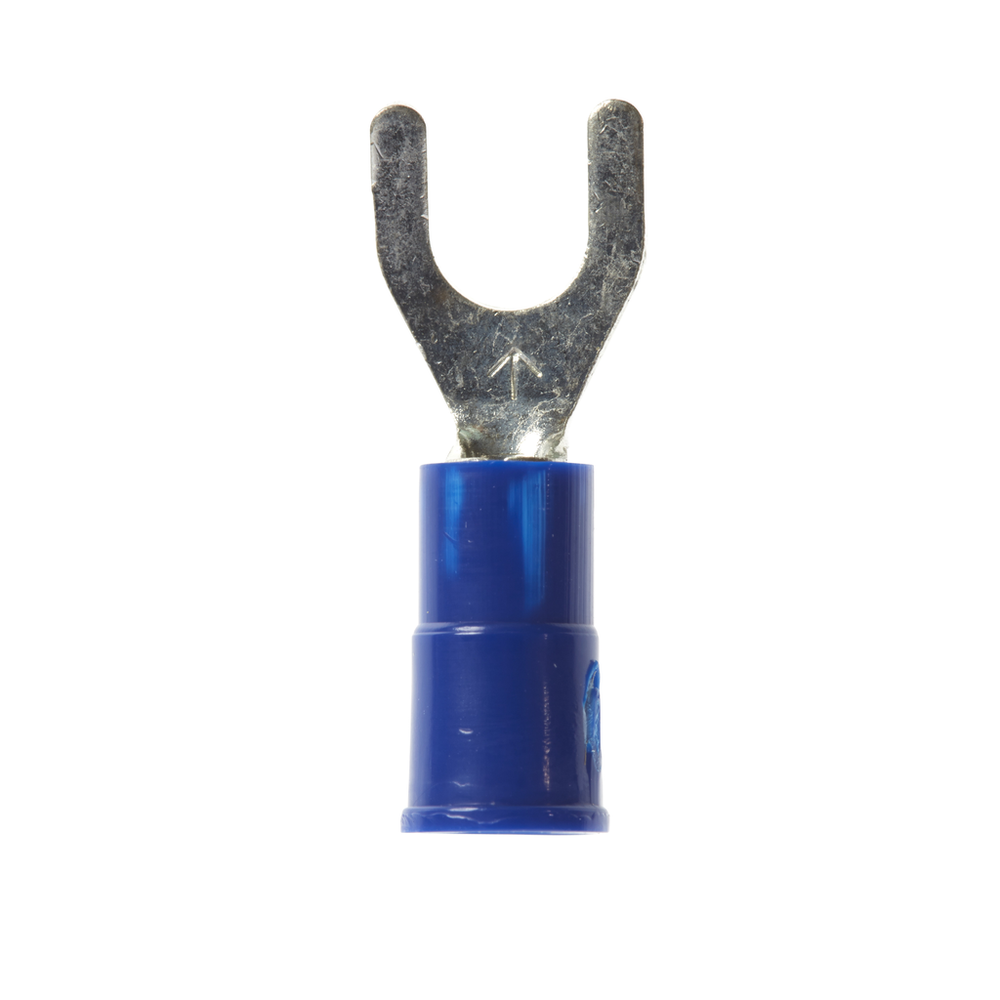

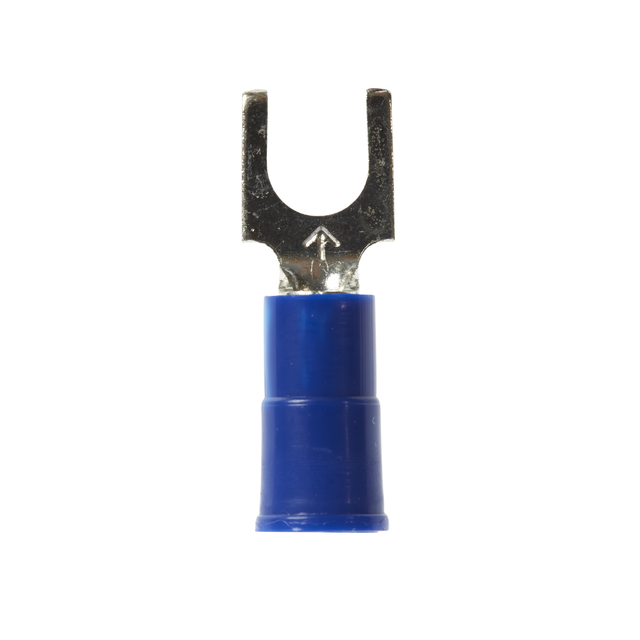

3M™ Highland™ Vinyl Insulated Fork Terminal FV14-10Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133665

Sold As: 10-Pack
SKU: 7000133665
MPN: 7000133665
For an accurate lead time please contact us
UPC: 00051128600115
3M ID: 80611602725
5 Digit UPC: 60011
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider-tongue design for use on free-standing studs
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Max. Number of Cores420.0
Maximum Voltage Rating600 to 1000 V
Stud Size (Metric)4826.0
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.34
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging25 per bag
Clearance (C)0.29 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel Inside Diameter0.09 Inch
Product ColorYellow
Barrel Length (Metric)6.35 mm
Stud Sizes#10
MaterialPlastic
Terminal StyleStandard
Units per bag25
UL File NumberE23438
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Imperial)0.17
Minimum Conductor Size (Metric)1.31 mm²
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleButted
Maximum Insulation Outer Diameter (Metric)3.7
Dimension E (Metric)18.8
Overall Width (Metric)8.636
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Maximum Conductor Size (Metric)2.08 mm²
Insulation MaterialVinyl
Dimension E0.74 Inch
Units per Case10.0
Overall Length (Metric)22.86
Stud Size#10
Overall Length (Imperial)0.9
Maximum Recommended Voltage Rating600.0
Terminal TypeFork
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Fork TypeStandard
