3M Products & Supplies

3M™ Highland™ Vinyl Insulated Locking Fork Terminal LFV10-6Q, AWG 12-10, 25/bag, 10 Bags/Case - 7010400991

Sold As: 10-Pack
SKU: 7010400991
MPN: 7010400991
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600153
3M ID: 80611602766
5 Digit UPC: 60015
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

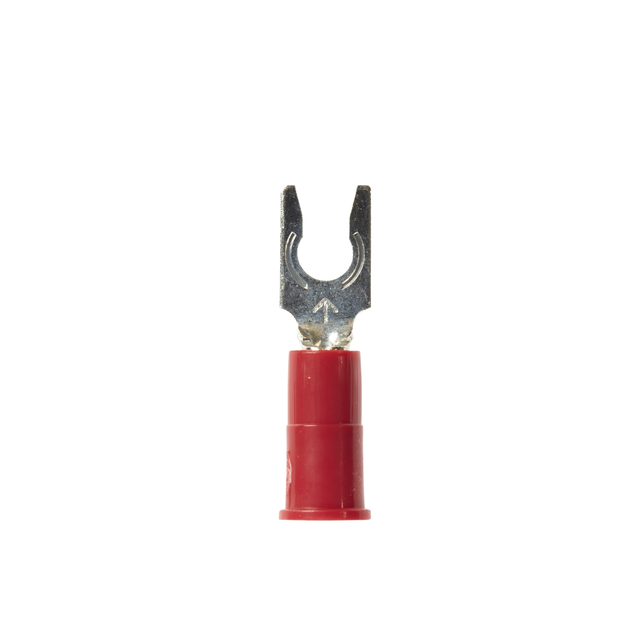

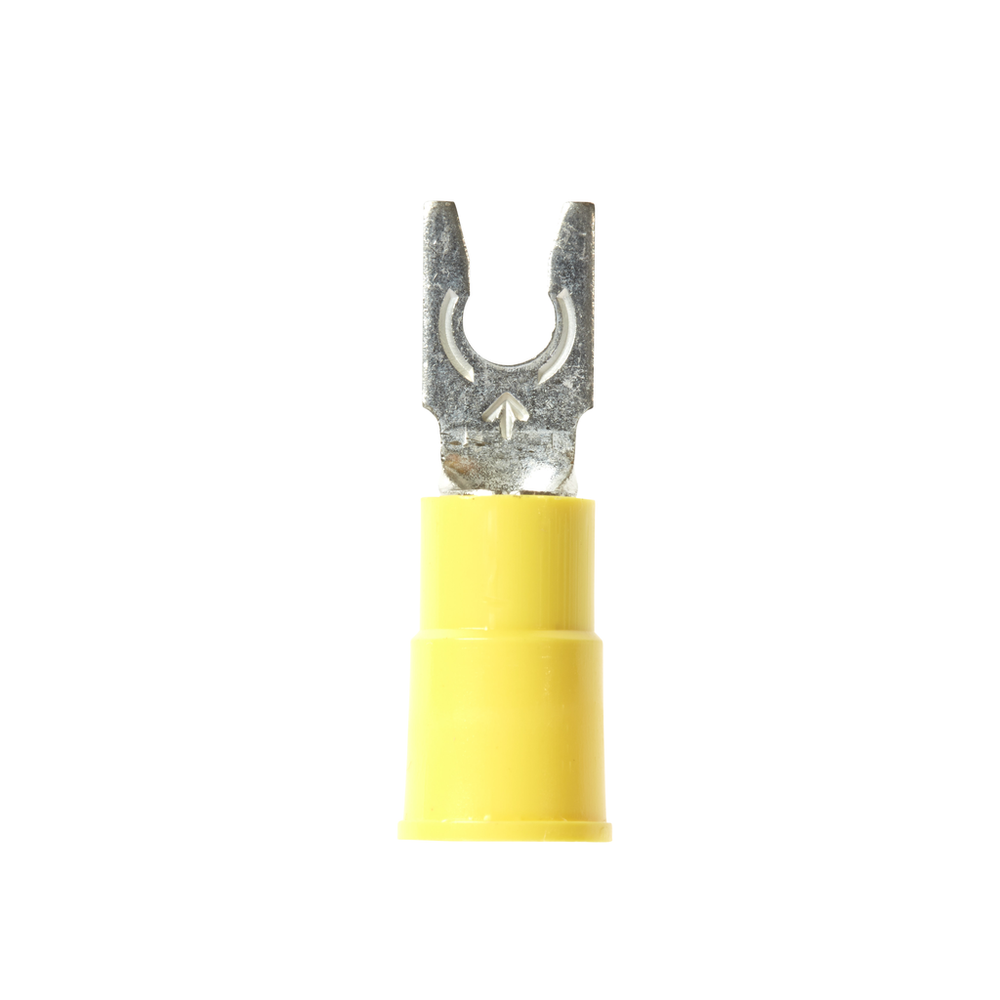

3M™ Highland™ Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Fork TypeLocking
Clearance (C)0.28 Inch
Terminal StyleLocking
Terminal TypeFork
Maximum Lock Width0.3 Inch
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Dimension E0.83 Inch
UL File NumberE23438
Stud Size#6
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleButted
Maximum Conductor Size (Metric)5.26 mm²
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Length (Imperial)1.03
Insulation MaterialVinyl
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Packaging25 per bag
Overall Width (Imperial)0.28
