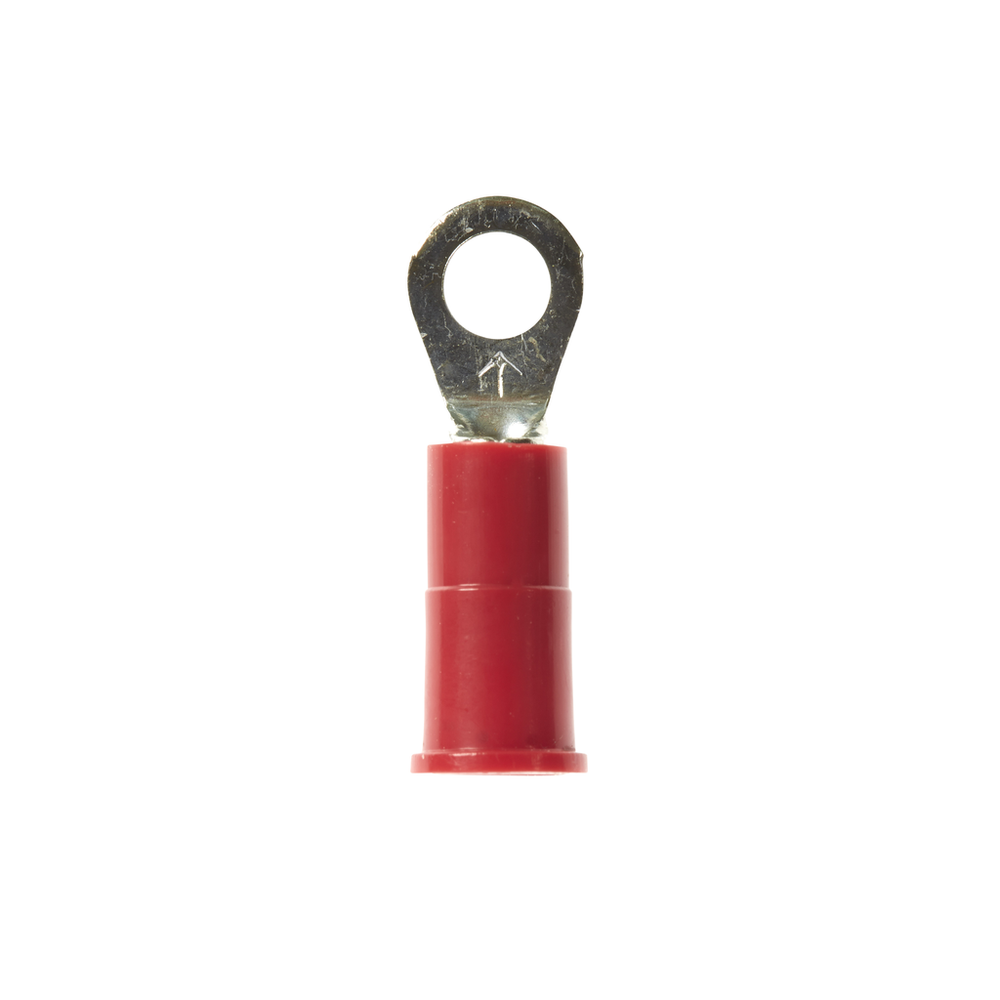

3M™ Highland™ Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133683

Sold As: 10-Pack
SKU: 7000133683
MPN: 7000133683
For an accurate lead time please contact us
UPC: 00051128600467
3M ID: 80611603079
5 Digit UPC: 60046
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case10.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.07 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Metric)7.874
Overall Width (Imperial) UOMin
Terminal StyleStandard
Overall Length (Imperial)0.93
Clearance (C)0.33 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
MaterialPlastic
Overall Width (Imperial)0.31
Dimension E0.78 Inch
UL File NumberE23438
Ring TypeStandard
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating600.0
Barrel StyleButted
Terminal TypeRing
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Metric)4.0
Stud Size#8
Insulation MaterialVinyl
Minimum Stud Diameter (Metric) UOMmm
Overall Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Connection TypeCrimp
Stud Size (Metric)4166.0
Packaging25 per bag
Maximum Operating Temperature (Celsius)105.0
Overall Length (Metric)23.622
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Length (Imperial)0.25 Inch
Dimension E (Metric)19.81
Barrel Length (Metric)6.35 mm
Units per bag25
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial)0.145
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric)0.823
Overall Length (Metric) UOMmm
