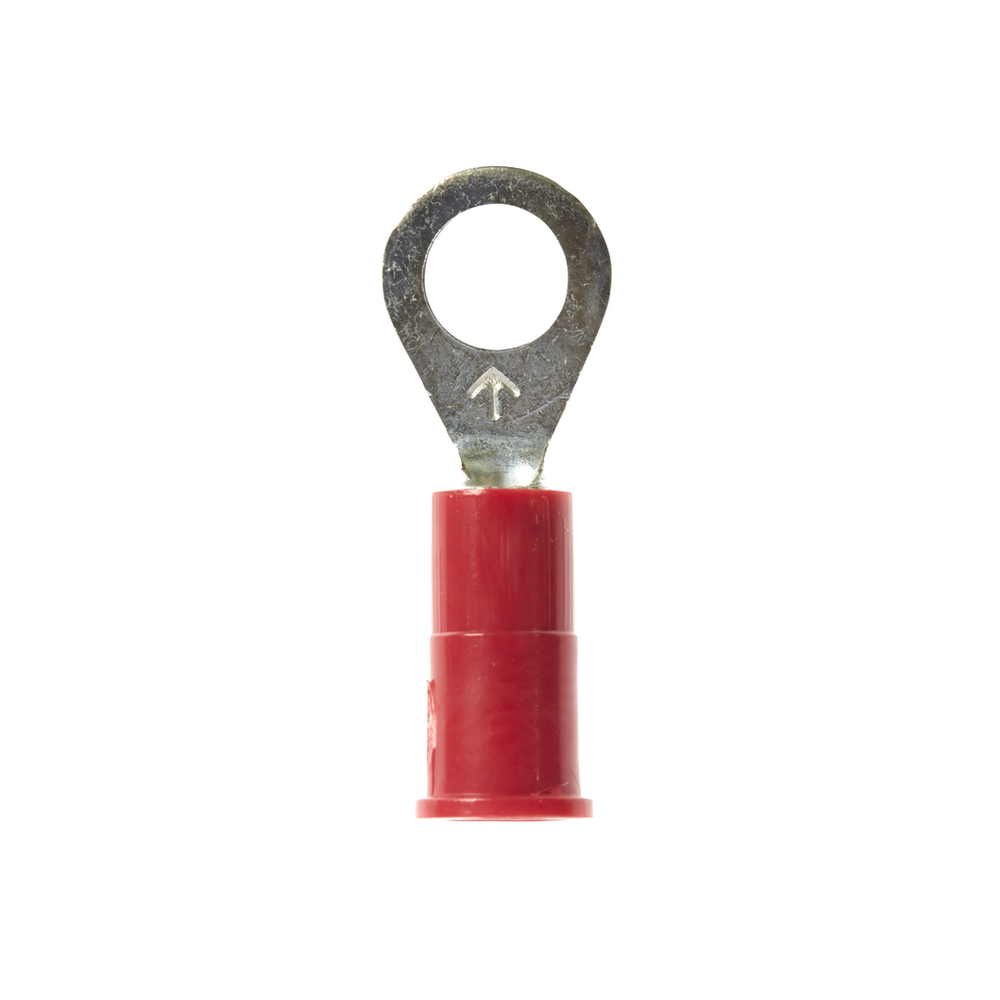

3M™ Highland™ Vinyl Insulated Ring Terminal RV18-14Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133681

Sold As: 10-Pack
SKU: 7000133681
MPN: 7000133681
For an accurate lead time please contact us
UPC: 00051128600443
3M ID: 80611603053
5 Digit UPC: 60044
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Insulation MaterialVinyl
Minimum Stud Diameter (Metric)6.35
Units per Case10.0
Maximum Insulation Outside Diameter0.145 in
Overall Width (Metric)11.938
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
UL File NumberE23438
Dimension E (Metric)21.59
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Connection TypeCrimp
Maximum Insulation Outer Diameter (Metric) UOMmm
Stud Size (Metric)635.0
Stud Size1/4 Inch
Barrel Length (Metric)6.35 mm
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Recommended Voltage Rating600.0
Minimum Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.07 Inch
Maximum Recommended Voltage Rating UOMV
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Terminal TypeRing
Minimum Conductor Size (Imperial)22 AWG
Clearance (C)0.4 Inch
Overall Length (Metric)27.432
Overall Length (Metric) UOMmm
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Imperial)0.47
Maximum Operating Temperature (Celsius) UOMDegree
Units per bag25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric)0.823
Overall Length (Imperial)1.08
Maximum Operating Temperature (Celsius)105.0
Ring TypeStandard
MaterialPlastic
Maximum Conductor Size (Imperial)18 AWG
Stud Sizes1/4 Inch
Dimension E0.85 Inch
Packaging25 per bag
Barrel StyleButted
