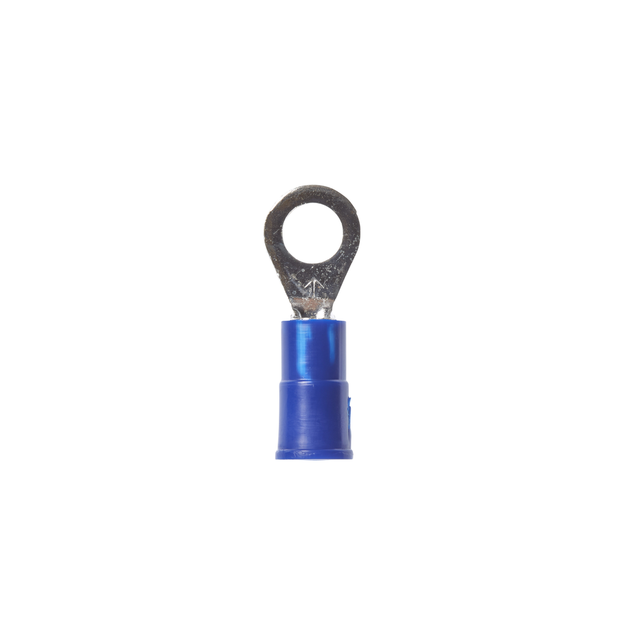

3M™ Highland™ Vinyl Insulated Ring Terminal RV14-6Q, AWG 16-14, 25/bag, 10 Bags/Case - 7000133678

Sold As: 10-Pack
SKU: 7000133678
MPN: 7000133678
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600412
3M ID: 80611603020
5 Digit UPC: 60041
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Barrel Inside Diameter0.09 Inch
Maximum Recommended Voltage Rating600.0
Stud Size#6
Overall Width (Metric) UOMmm
Units per Case10.0
Insulation MaterialVinyl
Dimension E0.67 Inch
Minimum Conductor Size (Metric)1.31 mm²
Units per bag25
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial)0.8
UL File NumberE23438
Dimension E (Metric)17.02
Maximum Recommended Voltage Rating UOMV
Stud Size (Metric)3505.0
MaterialPlastic
Minimum Stud Diameter (Metric)3.5
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging25 per bag
Terminal StyleStandard
Clearance (C)0.22 Inch
Minimum Stud Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Barrel Length (Metric)6.35 mm
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Metric)20.32
Ring TypeStandard
Terminal TypeRing
Connection TypeCrimp
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outside Diameter0.145 in
Overall Width (Imperial)0.25
Minimum Stud Diameter (Imperial) UOMin
