3M Products & Supplies

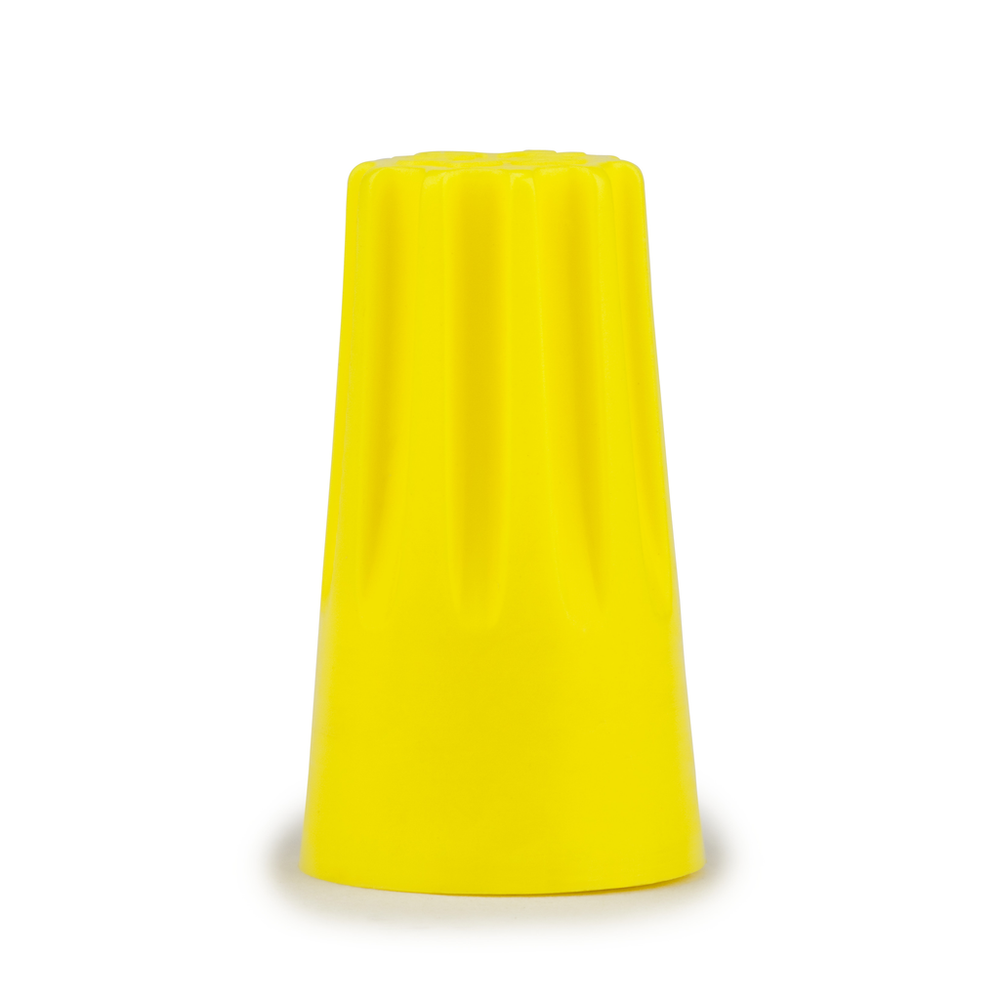

3M™ Highland™ Wire Connector H-33, 18-12 AWG, Yellow, 5000 per Keg, 5000/Case - 7010320417

Sold As: 5000-Pack
SKU: 7010320417
MPN: 7010320417
For an accurate lead time please contact us
UPC: 00054007431398
3M ID: 80610981286
5 Digit UPC: 43139
$694.54 ($0.14 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.

Features

  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
  • Available in hand driver or power driver options
  • Used for connecting and insulating wire connections in a pigtail application
Spec Sheet



Downloads

Specifications

Country of OriginChina
Minimum Operating Temperature (Fahrenheit)0.0
Minimum Conductor Size (Imperial)18 AWG
Voltage Rating600 Volt
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1 mm²
Connector StyleTwist On
Flame RetardantNo
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Wire Connector TypeTwist-on Wire Connectors
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)12 AWG
Product ColorYellow
Minimum Operating Temperature (Celsius)0.0
MaterialPlastic
Maximum Recommended Voltage Rating600.0
Product TypeConnector
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeWire
Maximum Recommended Voltage Rating UOMV
PackagingKeg
Maximum Conductor Size (Metric)4
Maximum Operating Temperature (Fahrenheit)221.0
