3M Products & Supplies

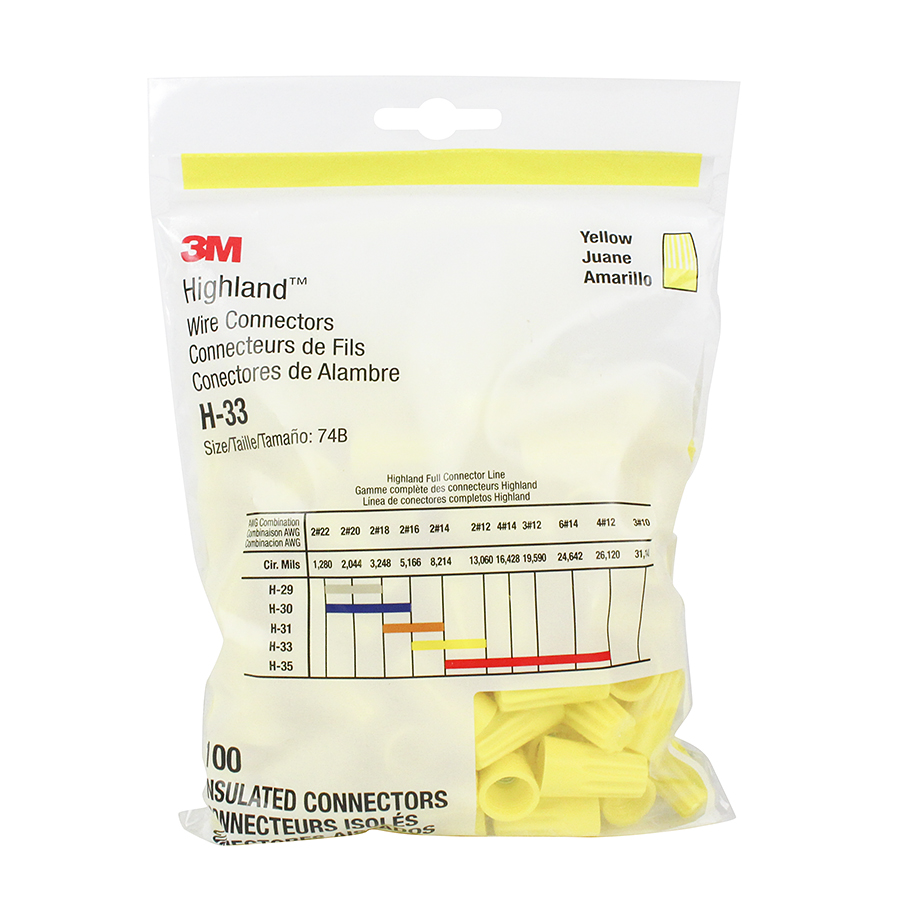

3M™ Highland™ Wire Connector H-33-POUCH, 18-12 AWG, Yellow, 100 per Pouch, 1000/Case - 7010318552

Sold As: 1000-Pack
SKU: 7010318552
MPN: 7010318552
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007431364
3M ID: 80000209538
5 Digit UPC: 43136
$164.35 ($0.16 / Count)
Hurry up! Current stock:

Product Description

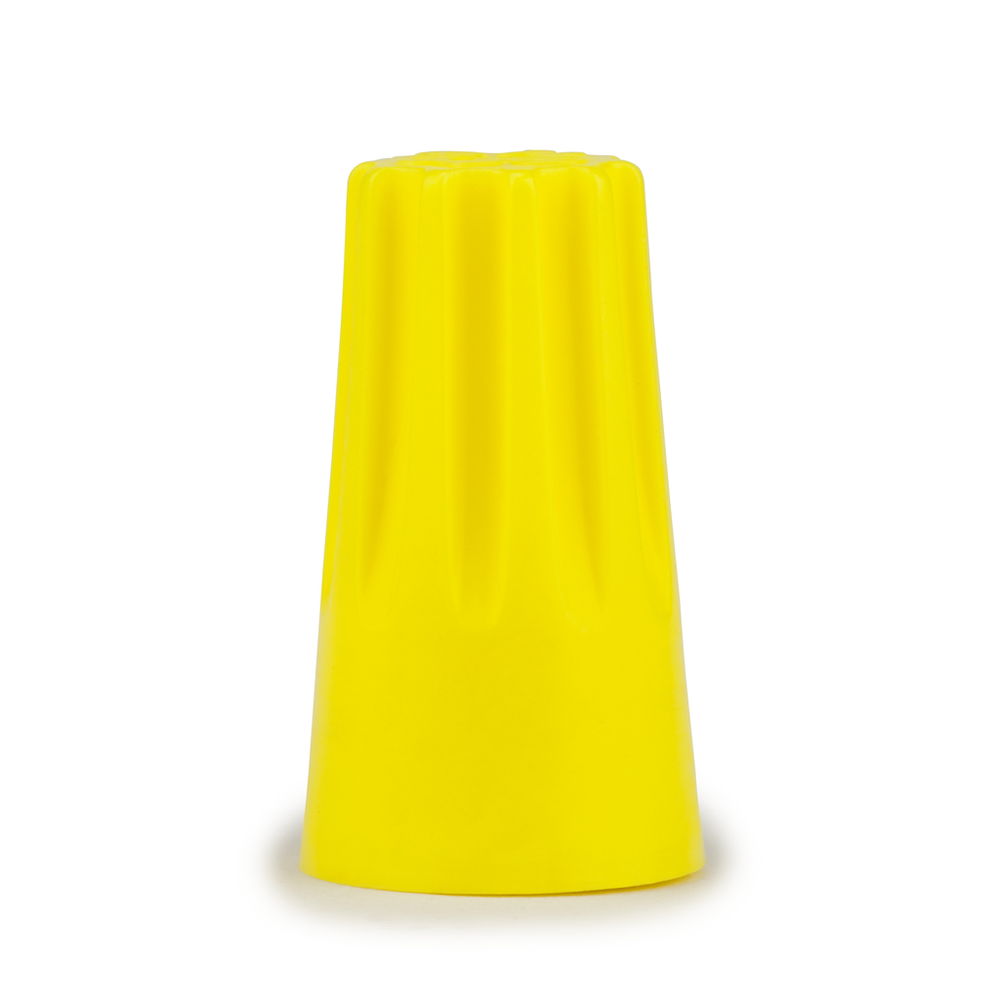

3M™ Highland™ Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.

Features

  • Available in hand driver or power driver options
  • Used for connecting and insulating wire connections in a pigtail application
  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
Spec Sheet



Downloads

Specifications

Country of OriginChina
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Wire Connector TypeTwist-on Wire Connectors
Connector StyleTwist On
Product TypeConnector
Minimum Conductor Size (Metric)1 mm²
Minimum Operating Temperature (Celsius)0.0
Product ColorYellow
Minimum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius) UOMDegree
PackagingPouch
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Metric)4
Flame RetardantNo
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit)221.0
Voltage Rating600 Volt
Connection TypeWire
Maximum Conductor Size (Imperial)12 AWG
MaterialPlastic
Minimum Operating Temperature (Fahrenheit)0.0
