3M Products & Supplies

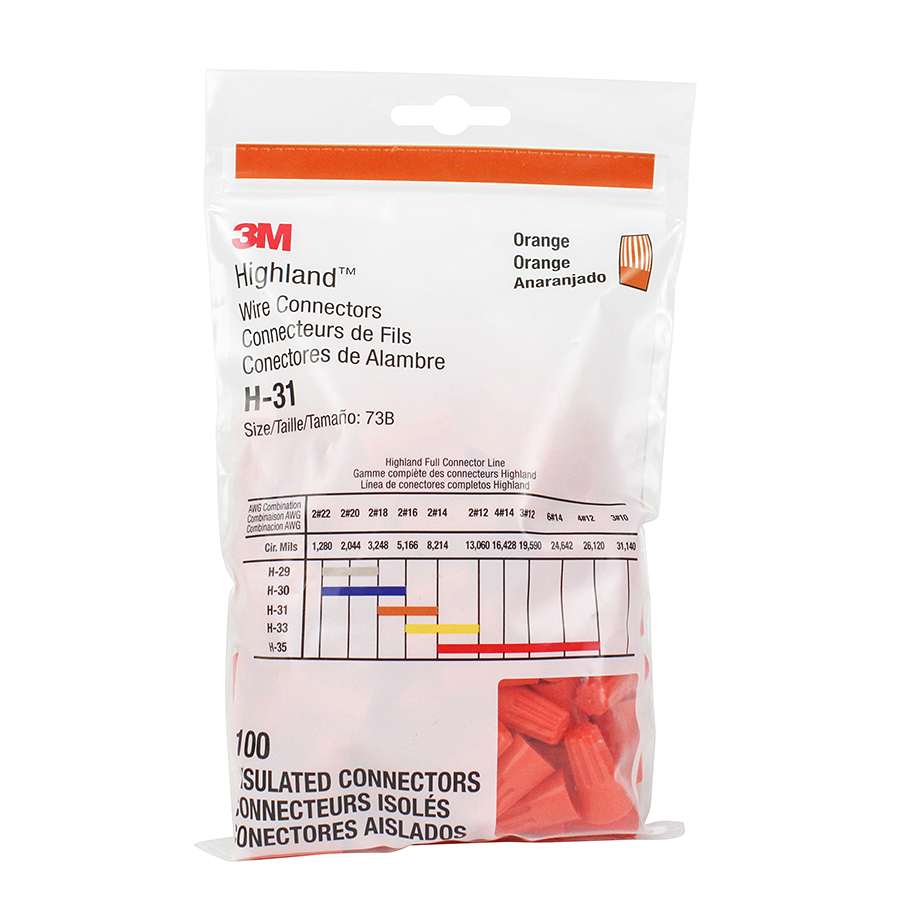

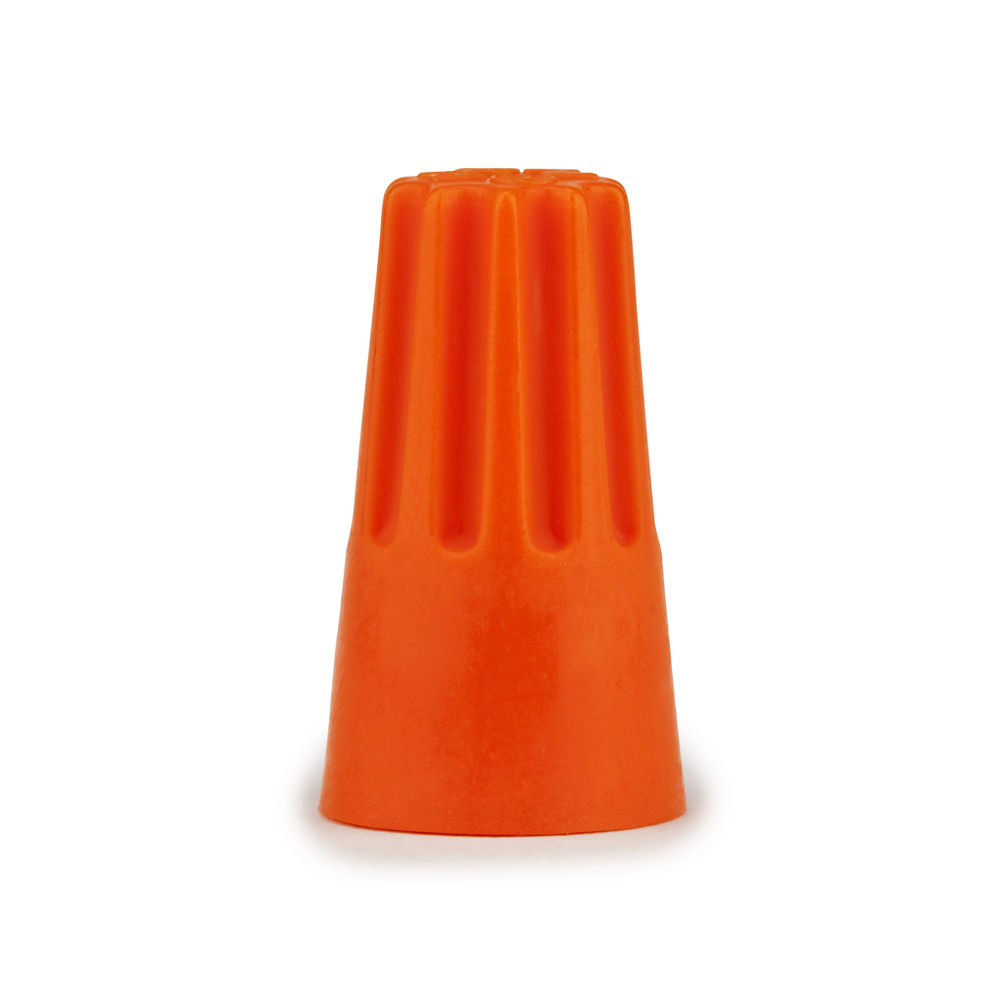

3M™ Highland™ Wire Connector H-31-POUCH, 18-14 AWG, Orange, 100 per Pouch, 1000/Case - 7010348891

Sold As: 1000-Pack
SKU: 7010348891
MPN: 7010348891
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007431173
3M ID: 80000209512
5 Digit UPC: 43117
$144.69 ($0.14 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.

Features

  • Available in hand driver or power driver options
  • Used for connecting and insulating wire connections in a pigtail application
  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
Spec Sheet



Downloads

Specifications

Country of OriginChina
Maximum Operating Temperature (Celsius) UOMDegree
MaterialPlastic
Minimum Conductor Size (Metric)1 mm²
Connection TypeWire
Voltage Rating600 Volt
Connector StyleTwist On
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Minimum Operating Temperature (Fahrenheit)0.0
Flame RetardantNo
Product ColorOrange
Maximum Conductor Size (Metric)2.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Wire Connector TypeTwist-on Wire Connectors
Minimum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Product TypeConnector
