3M Products & Supplies

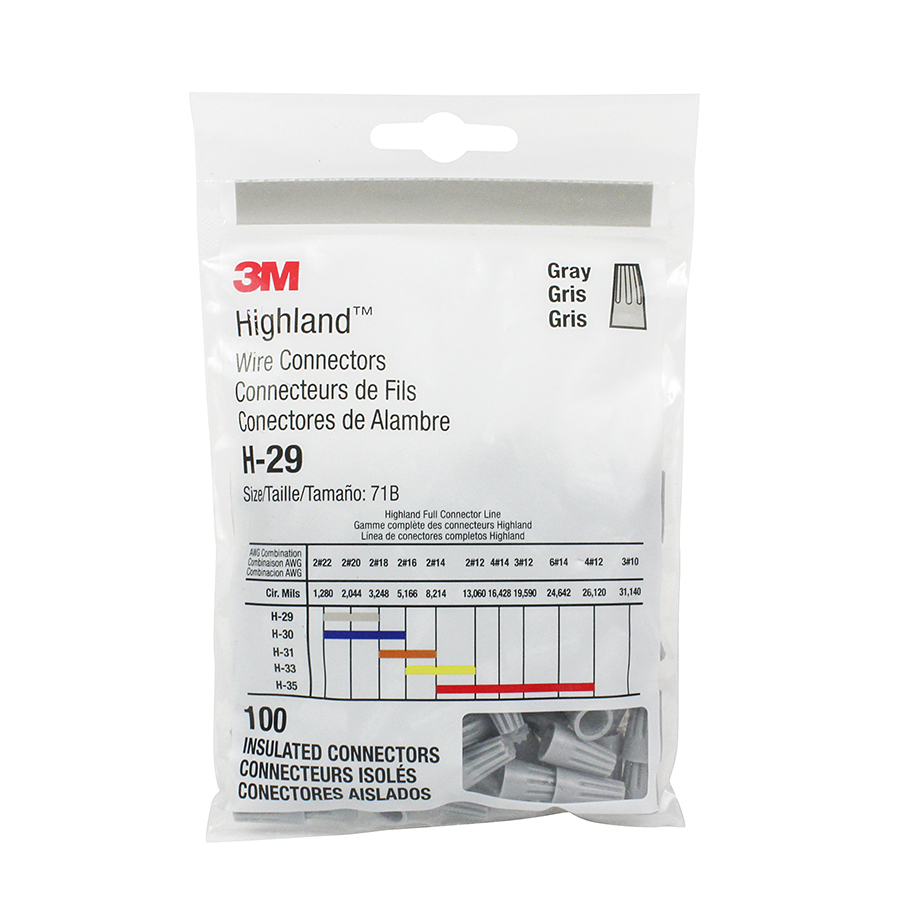

3M™ Highland™ Wire Connector H-29-POUCH, 22-16 AWG, Gray, 100 per Pouch, 1000/Case - 7010348890

Sold As: 1000-Pack
SKU: 7010348890
MPN: 7010348890
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007431333
3M ID: 80000209488
5 Digit UPC: 43133
$112.82 ($0.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.

Features

  • Available in hand driver or power driver options
  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
  • Used for connecting and insulating wire connections in a pigtail application
Spec Sheet



Downloads

Specifications

Country of OriginChina
Minimum Operating Temperature (Celsius)0.0
Maximum Recommended Voltage Rating300.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
PackagingPouch
Maximum Conductor Size (Metric)1.5
Flame RetardantNo
Wire Connector TypeTwist-on Wire Connectors
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric).34 mm²
Product ColorGray
Connector StyleTwist On
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)16 AWG
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Imperial)22 AWG
Minimum Operating Temperature (Fahrenheit)0.0
Connection TypeWire
MaterialPlastic
Product TypeConnector
