3M Products & Supplies

3M™ Lapping Film 262X, Sheets and Rolls, 1 micron, 3 mil, AO, 4.5 in x 5.5 in - 7000044808

Sold As: 500-Pack
SKU: 7000044808
MPN: 7000044808
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051144859266
3M ID: 60070005073
5 Digit UPC: 85926
$413.26 ($0.83 / Count)
Hurry up! Current stock:

Product Description

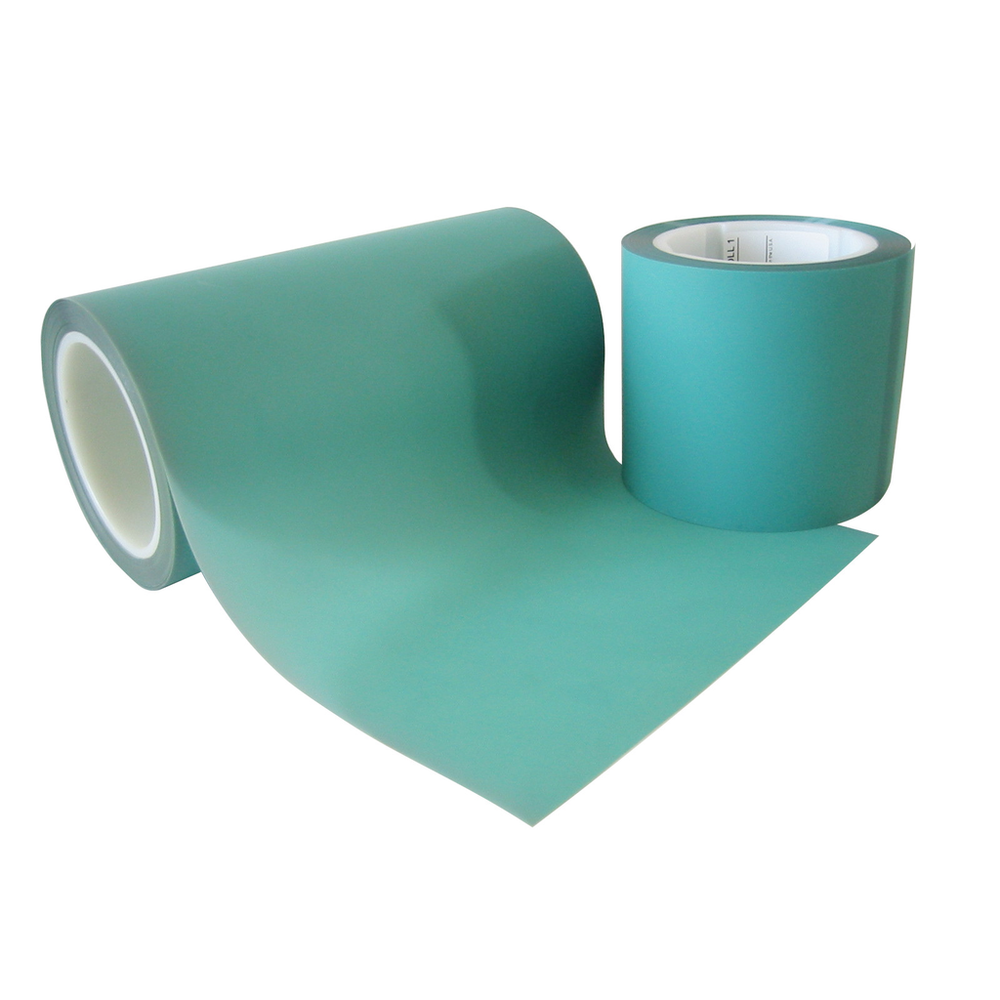

3M™ Lapping Film 262X is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product is in polishing fiber optics as well as precision lapping operations. The product provides a smooth surface on precision electronic parts.

Features

  • Consistent cut rate, finish and life
  • Tight particle distribution
  • Available in discs, sheets and rolls
  • Softer resin than other aluminum oxide products
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Product UsageFiber Optic Connectors
Overall Length (Metric) UOMmm
Attachment TypePlain Back
Overall Length (Imperial)5.5
Overall Length (Metric)139.7
Overall Diameter (Imperial)0.0
ApplicationFinishing; Flat Lapping; Polishing; Superfinishing
Backing Thickness (Metric)0.076
Overall Width (Metric)114.3
Backing Thickness (Imperial)3.0
Backing Thickness (Metric) UOMmm
Overall Width (Imperial)4.5
Specifications MetRoHS 2011/65/EU
Product Series262X
Product ColorGreen
Backing MaterialPolyester Film
Center Hole Diameter (Imperial)0.0
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Diameter (Metric)0.0
Overall Width (Imperial) UOMin
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Silicon Carbide
Micron Grade1 μm
Backing Thickness (Imperial) UOMmil
Product FormRoll; Sheet
Abrasive MaterialAluminum Oxide
Center Hole Diameter (Metric)0.0
