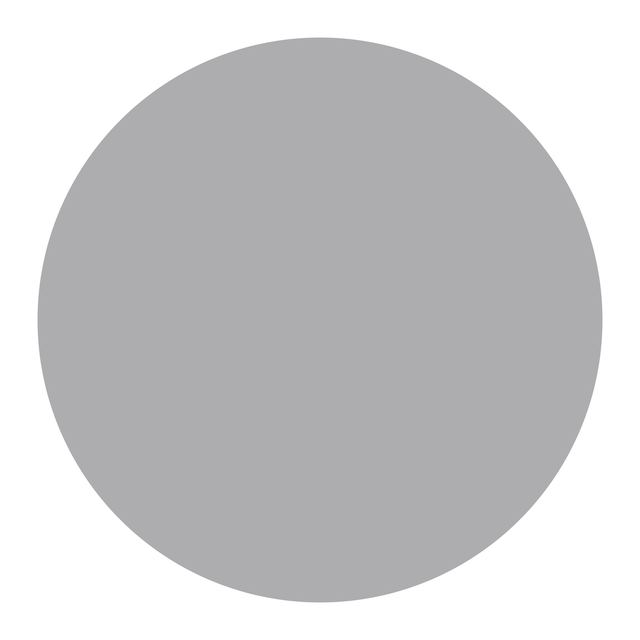

3M™ Lapping Film 468XW, PSA Disc, 3 mic, 3 mil, 5 in - 7100166913

Sold As: 500-Pack
SKU: 7100166913
MPN: 7100166913
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060824245
3M ID: 60000602353
5 Digit UPC: 82424
$400.98 ($0.80 / Count)
Hurry up! Current stock:

Product Description

Silicon carbide mineral coated on 3 mil polyester film with PSA back. Available in 3.0 micron and is our standard product for silicon carbide related polishing applications in the fiber optic and metallurgical industries.

Features

  • Easy breakdown resin for MT connector polishing
  • Available in discs, sheets and rolls
  • Consistent cut rate, finish and life
  • Tight particle distribution

Downloads

Specifications

Country of OriginUnited States
ApplicationFlat Lapping; Polishing; Superfinishing
Micron Grade3 μm
Backing Thickness (Metric)0.076
Product FormDisc
Center Hole Diameter (Imperial)0.0
Backing Thickness (Metric) UOMmm
Product UsageFiber Optic Connectors
Overall Diameter (Metric) UOMmm
Abrasive MaterialSilicon Carbide
Overall Width (Metric)0.0
Overall Width (Imperial)0.0
Center Hole Diameter (Metric)0.0
Backing Thickness (Imperial)3.0
Overall Length (Imperial)0.0
Product Series468XW
Overall Diameter (Metric)127.0
Product ColorGray
Overall Length (Metric)0.0
SubstrateCeramic; Glass; High-hardness Metal; Metal; Plastic; Silicon Carbide
Backing MaterialPolyester Film
Overall Diameter (Imperial) UOMin
Backing Thickness (Imperial) UOMmil
Overall Diameter (Imperial)5.0
Attachment TypePSA Back
