3M Products & Supplies

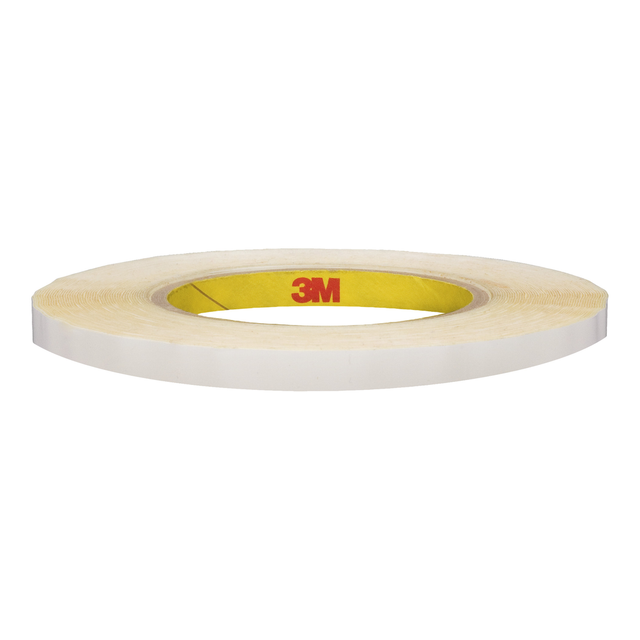

3M™ Layered Viscoelastic Damping Polymer SJ2040X, 4 in x 30 yd, 2 Roll/Case - 7000123330

Sold As: 2-Pack
SKU: 7000123330
MPN: 7000123330
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200158087
3M ID: 70006061397
5 Digit UPC: 15808
$2,547.55 ($1273.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Layered Viscoelastic Damping Polymer SJ2040X is a .002" thick adhesive with a dual film liner used for low outgassing and ionics. It has a typical temperature range for good damping of 0-65°C, allowing it to offer good thermal performance for long term applications at moderate temperatures.

Features

  • Use in vibration and shock isolation designs
  • Use in applications that experience short high temperature excursions
  • Typical damping performance for Loss Factor and Storage Modulus falls between the 3M™ Viscoelastic Damping Polymers 112 and 130
  • Good thermal performance for long term applications at moderate temperatures
  • Provides robust damping performance in applications that require low outgassing and ionic levels and still provide robust damping performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Product FormRoll
Maximum Operating Temperature (Celsius)65.0
Adhesive TypeViscoelastic Polymer
Backing MaterialKraft Paper
Overall Width (Metric)101.6
Minimum Operating Temperature (Celsius)0.0
Units per Case2.0
Overall Length (Imperial)30.0
Minimum Operating Temperature (Fahrenheit)32.0
Maximum Operating Temperature (Celsius) UOMDegree
Product SeriesSJ2040X
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Metric)27.4
Surface ColorWhite
ApplicationVibration Damping
Maximum Operating Temperature (Fahrenheit)149.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)4.0
Surface Density (Metric)0.0
Nominal Thickness (Metric)0.55
Maximum Operating Temperature (Fahrenheit) UOMDegree
Nominal Thickness (Imperial)21.5
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
