3M Products & Supplies

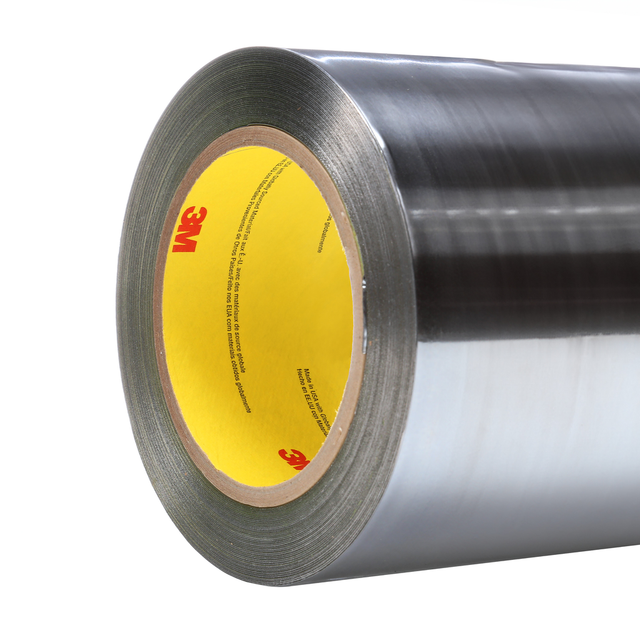

3M™ Lead Foil Tape 420, Dark Silver, 1 1/4 in x 36 yd, 6.8 mil, 36 Roll/Case - 7000049108

Sold As: 18-Pack
SKU: 7000049108
MPN: 7000049108
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138954871
3M ID: 70006389046
5 Digit UPC: 95487
$3,217.81 ($178.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Performs over a wide variety of temperatures
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Product ColorDark Silver
Shelf Life UOMMonth
Tensile Strength (Metric)35.0
Units per Case36.0
Overall Length (Imperial) UOMyd
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Minimum Operating Temperature (Celsius)-51.0
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialLead Foil
Minimum Operating Temperature (Fahrenheit)-60.0
Total Tape Thickness without Liner (Metric)0.17
Total Tape Thickness without Liner (Imperial)6.8
Maximum Operating Temperature (Celsius)107.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)5.0
Adhesive TypeRubber
Overall Width (Imperial)1.25
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)225.0
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break12
Overall Width (Metric)31.75
Tensile Strength (Imperial)20.0
Overall Width (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.1
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
