3M Products & Supplies

3M™ Lead Foil Tape 420, Dark Silver, 19 in x 36 yd, 6.8 mil, 1 Roll/Case - 7010374444

SKU: 7010374444
MPN: 7010374444
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138954383
3M ID: 70006388550
5 Digit UPC: 95438
$2,717.66 each
Hurry up! Current stock:

Product Description

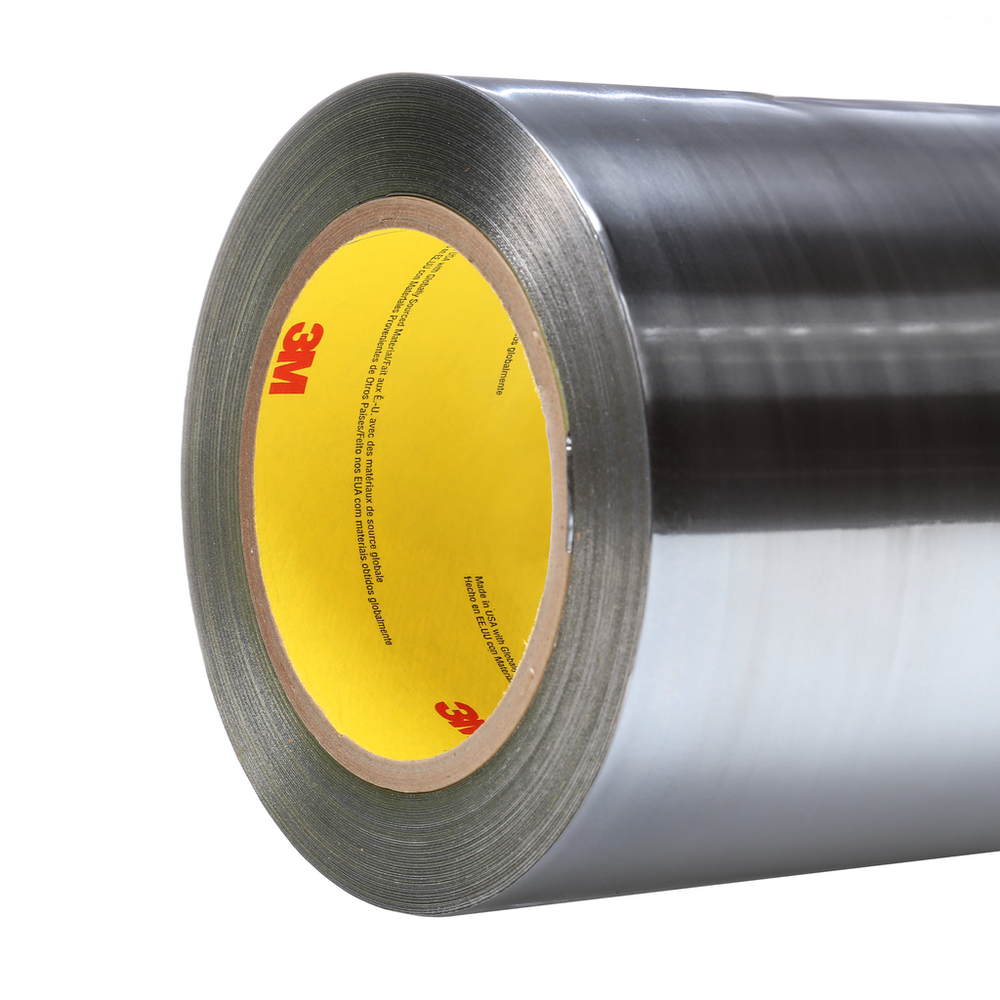

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Performs over a wide variety of temperatures
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial)19.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-60.0
Maximum Operating Temperature (Fahrenheit)225.0
Overall Width (Metric)482.0
Backing (Carrier) Thickness (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.17
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-51.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Metric)32.9
Tensile Strength (Imperial)20.0
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeRubber
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.1
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Backing (Carrier) MaterialLead Foil
Elongation at Break12
Shelf Life UOMMonth
Product ColorDark Silver
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Metric)35.0
Total Tape Thickness without Liner (Imperial)6.8
