3M Products & Supplies

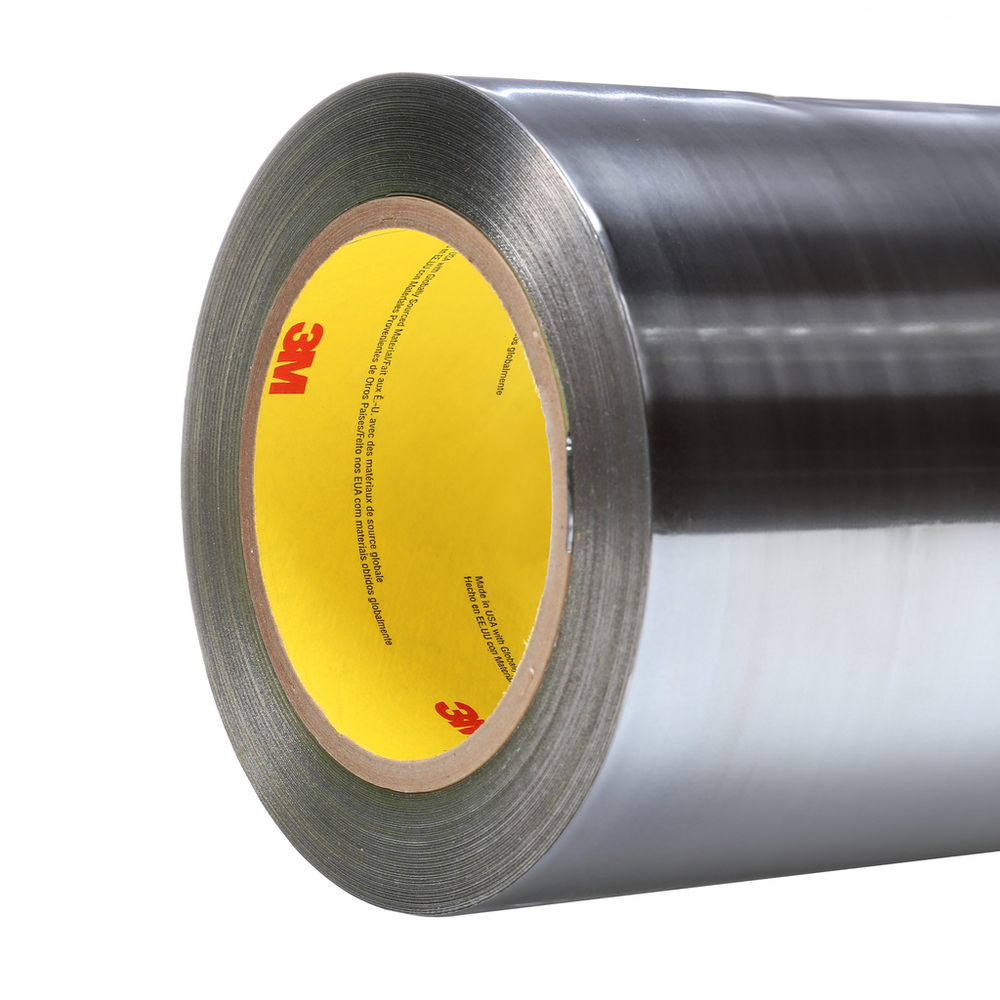

3M™ Lead Foil Tape 420, Dark Silver, 23 in x 36 yd, 6.8 mil, 1 Roll/Case - 7000049133

SKU: 7000049133
MPN: 7000049133
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956752
3M ID: 70006390911
5 Digit UPC: 95675
$3,289.29 each
Hurry up! Current stock:

Product Description

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
  • Performs over a wide variety of temperatures
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Metric)35.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMcm
Overall Width (Imperial)23.0
Tensile Strength (Imperial) UOMlb/in
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Shelf Life UOMMonth
Backing (Carrier) MaterialLead Foil
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Back Side Adhesive Thickness (Imperial) UOMmil
Product ColorDark Silver
Backing (Carrier) Thickness (Metric)0.13
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber
Maximum Operating Temperature (Celsius)107.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-60.0
Overall Length (Metric)32.9
Overall Width (Metric)58.4
Overall Length (Metric) UOMm
Tensile Strength (Imperial)20.0
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)6.8
Backing (Carrier) Thickness (Imperial)5.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Units per Case1.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.1
Total Tape Thickness without Liner (Metric)0.17
Minimum Operating Temperature (Celsius)-51.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break12
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)225.0
