3M Products & Supplies

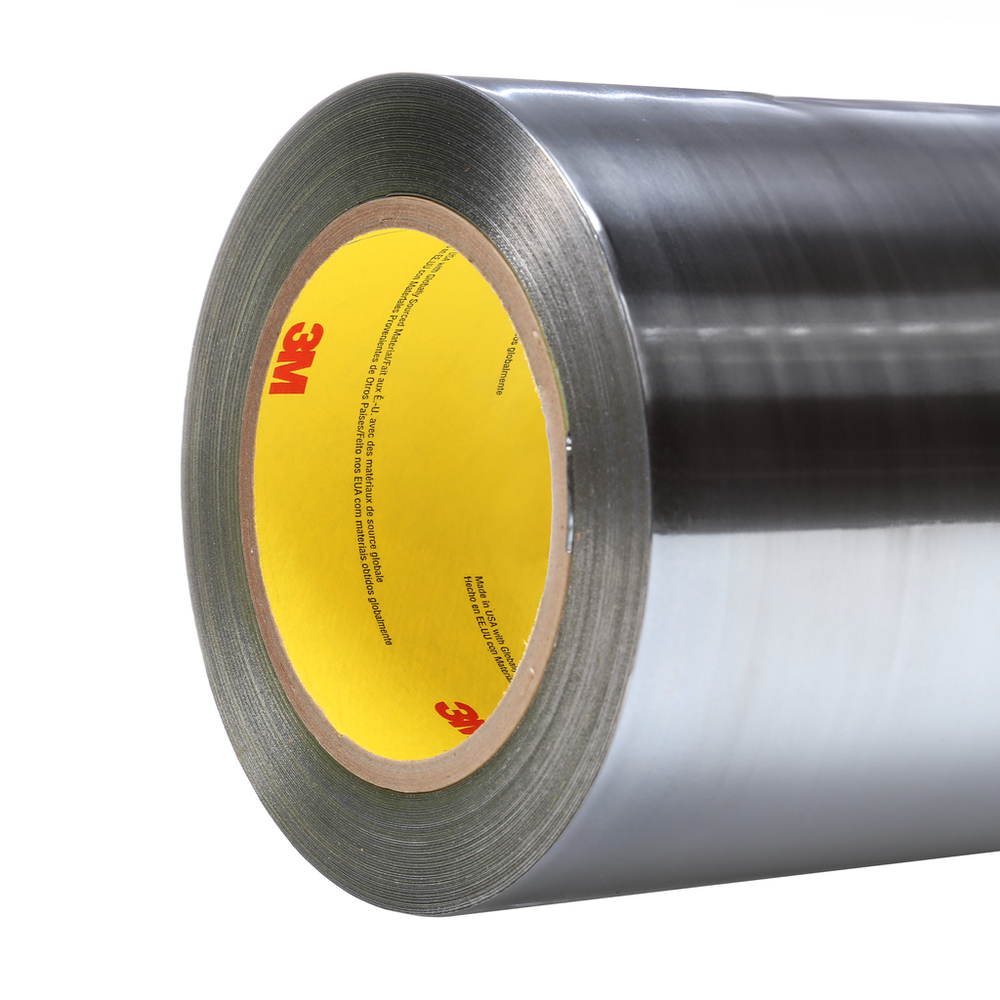

3M™ Lead Foil Tape 420, Dark Silver, 6 in x 36 yd, 6.8 mil, 1 Roll/Case - 7010373524

Sold As: 6-Pack
SKU: 7010373524
MPN: 7010373524
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956714
3M ID: 70006390879
5 Digit UPC: 95671
$5,149.33 ($858.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
  • Performs over a wide variety of temperatures
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)107.0
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Total Tape Thickness without Liner (Metric)0.17
Backing (Carrier) Thickness (Imperial)5.0
Adhesive TypeRubber
Backing (Carrier) Thickness (Metric)0.13
Back Side Adhesive Thickness (Imperial)2.1
Minimum Operating Temperature (Celsius)-51.0
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case3.0
Tensile Strength (Imperial) UOMlb/in
Elongation at Break12
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)225.0
Minimum Operating Temperature (Fahrenheit)-60.0
Overall Length (Metric)32.91
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)6.8
Overall Width (Imperial)6.0
Overall Length (Imperial)36.0
Tensile Strength (Imperial)20.0
Backing (Carrier) MaterialLead Foil
Product ColorDark Silver
Overall Width (Metric)152.4
Tensile Strength (Metric)35.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
