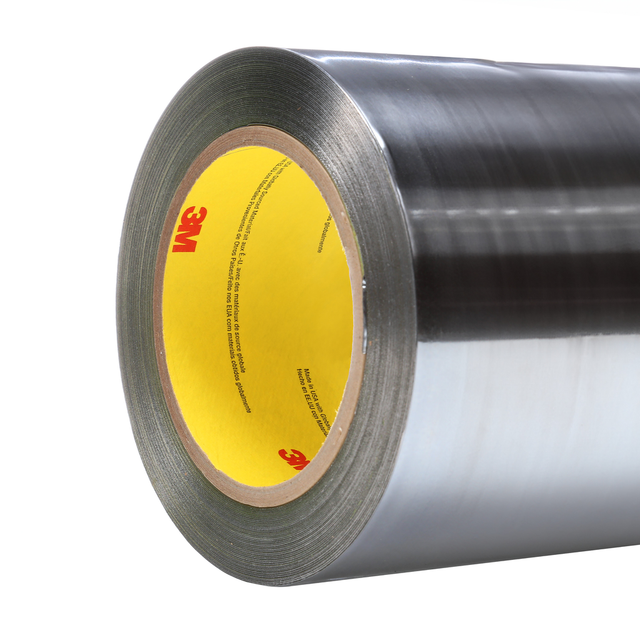

3M™ Lead Foil Tape 420, Dark Silver, 2 in x 36 yd, 6.8 mil, 6 Roll/Case - 7000001315

Sold As: 6-Pack
SKU: 7000001315
MPN: 7000001315
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051138954147
3M ID: 70006388311
5 Digit UPC: 95414
$1,716.49 ($286.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, this malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.

Features

  • Liner allows tape to be die-cut into specific shapes for assembly and manufacturing processes
  • Conformable tape resists flame, moisture, weather, UV degradation, and many chemicals used in electroplating and anodizing processes
  • Performs over a wide variety of temperatures
  • The rubber-based adhesive bonds well to a variety of surfaces, including most metals
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesive TypeRubber
Back Side Adhesive Thickness (Imperial)2.1
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)225.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-51.0
Minimum Operating Temperature (Fahrenheit)-60.0
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Metric) UOMm
Elongation at Break12
Total Tape Thickness without Liner (Metric)0.17
Total Tape Thickness without Liner (Imperial)6.8
Overall Width (Imperial)2.0
Specifications MetASTM D3652, ASTM D3759, ASTM D3833
Product ColorSilver
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)36.0
Units per Case6.0
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)5.1
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Imperial)20.0
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)35.0
Backing (Carrier) Thickness (Metric)0.13
Backing (Carrier) MaterialLead Foil
Overall Length (Metric)32.9
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
