3M Products & Supplies

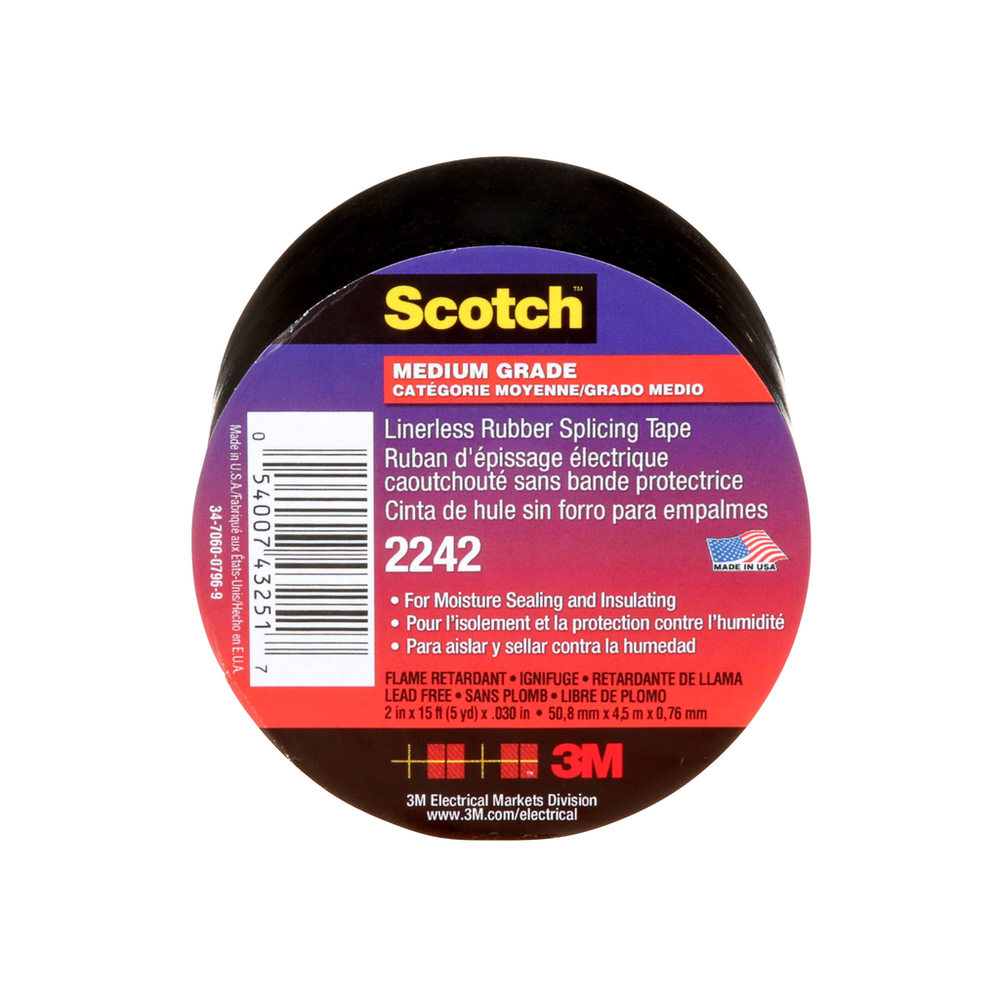

3M™ Linerless Electrical Rubber Tape 2242, 2 in x 15 ft, 1 in core, Black, 1 roll/carton, 8 rolls/case - 7000132759

Sold As: 8-Pack
SKU: 7000132759
MPN: 7000132759
For an accurate lead time please contact us
UPC: 00054007432517
3M ID: 80610973390
5 Digit UPC: 43251
$266.30 ($33.29 / Count)
Hurry up! Current stock:

Product Description

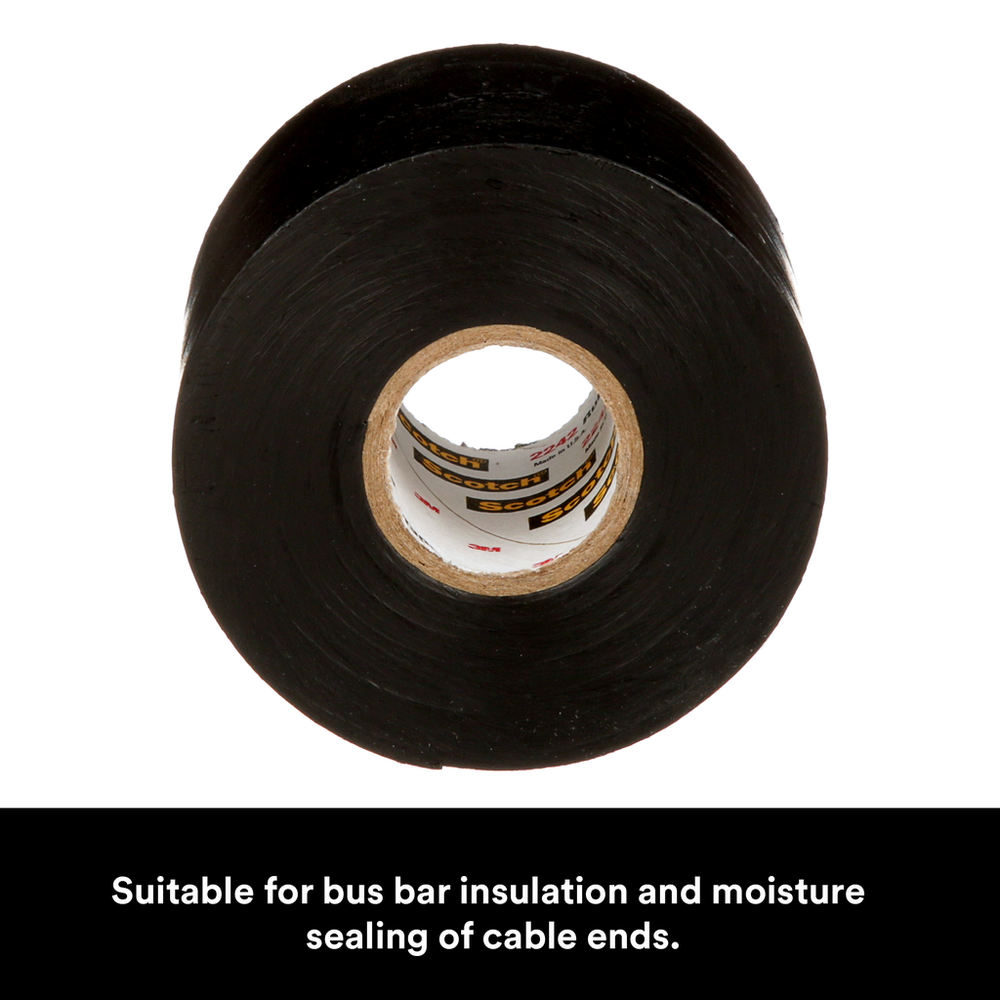

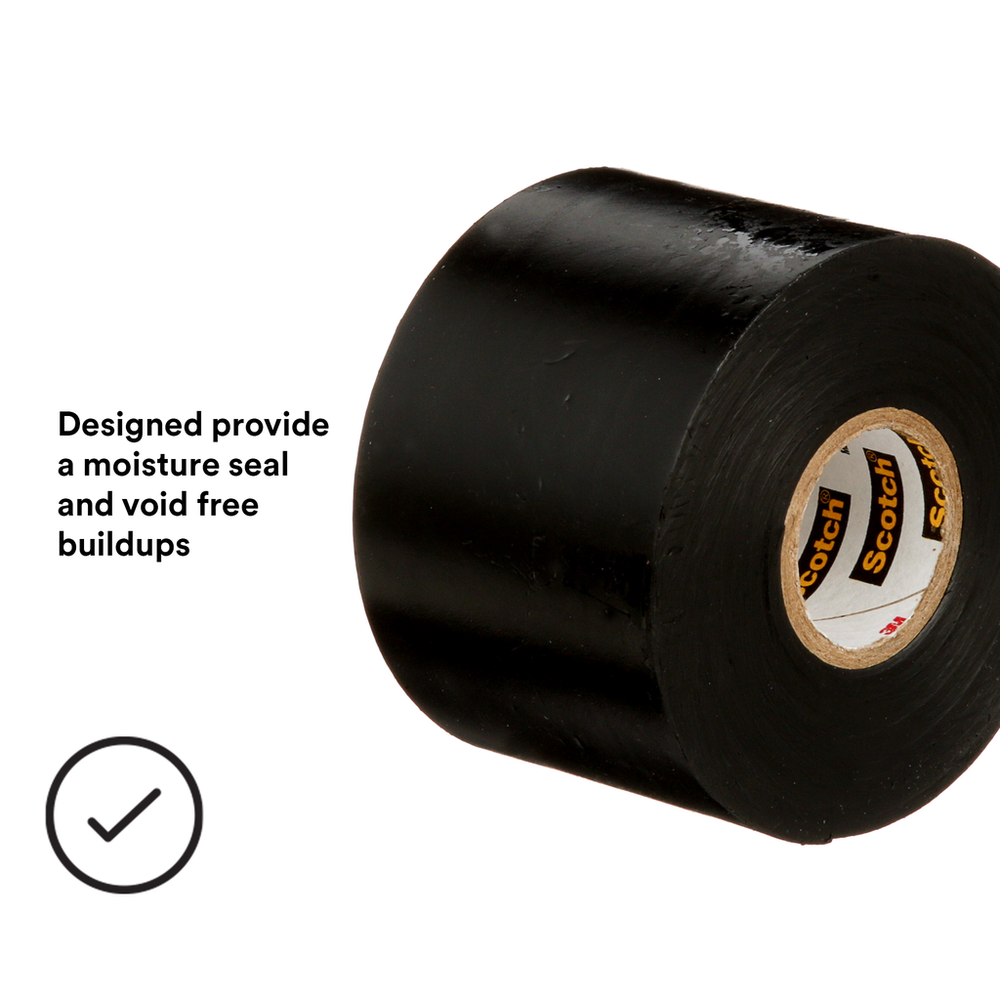

Scotch® Tape 2242 is a linerless 30 mil thick, general purpose, electrical rubber tape that's suitable for bus bar insulation and moisture sealing of cable ends. The high voltage, flame retardant tape ensures excellent tacking with its self fusing, ethylene propylene rubber resin adhesive.

Features

  • ASTM Approved and RoHS 2011/65/EU Compliant

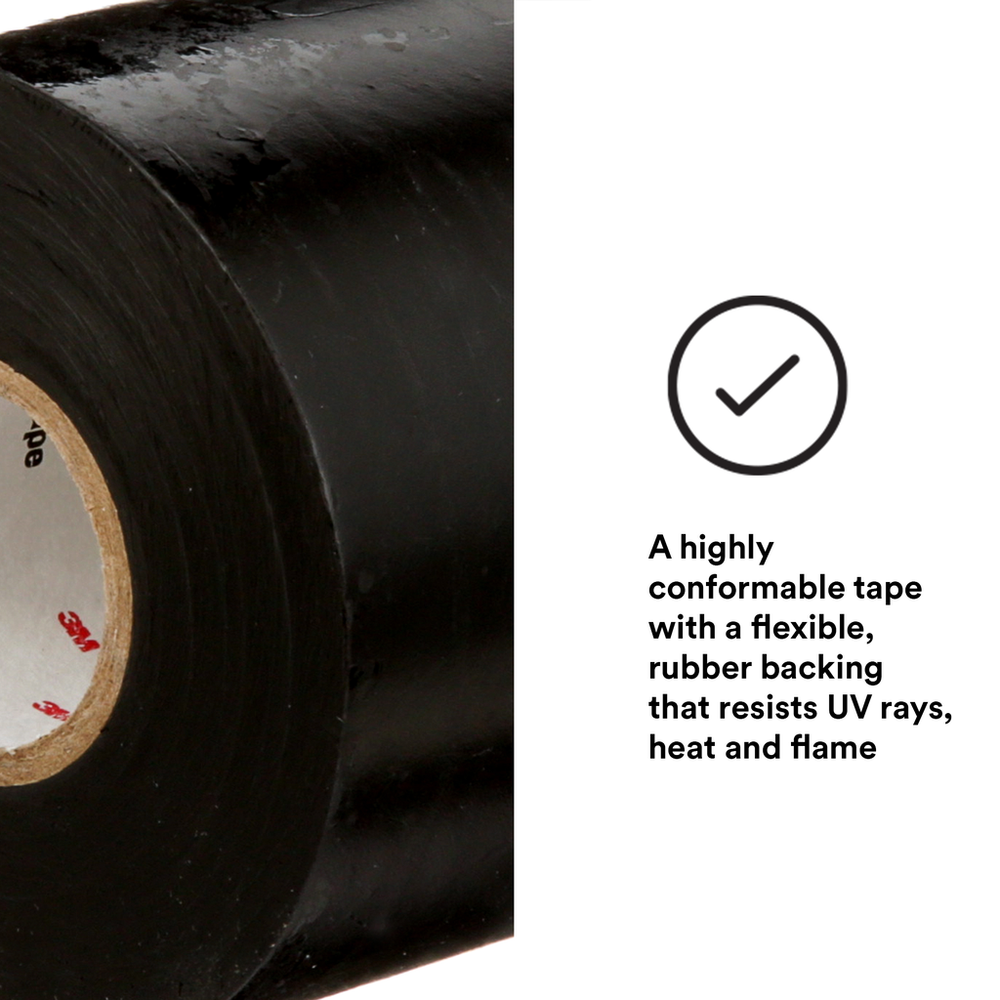

  • Rubber-resin adhesive provides excellent adherence while self-fusing, ethylene propylene rubber backing resists UV rays and heat.
  • Comes in black color
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)30.0
Elongation at Break850
Total Tape Thickness without Liner (Metric)0.76
Dielectric Strength UOMV/mil
FeaturesSelf-sticking; UV-resistant
Units per Case8.0
Tensile Strength (Metric)1723.0
Overall Length (Imperial) UOMft
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric) UOMm
Tensile Strength (Imperial)250.0
Product MarketsElectrical Construction
Total Tape Thickness without Liner (Imperial) UOMmil
Rolls per Carton1.0
Rolls per Case8.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Overall Length (Metric)4.6
Overall Width (Imperial)2.0
Maximum Operating Temperature (Celsius)90.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)50.8
Tensile Strength (Metric) UOMkPa
Dielectric Strength750.0
ApplicationInsulation
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit)194.0
Tape GradeProfessional
Backing (Carrier) MaterialRubber
Specifications MetASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Voltage Rating600 V
Overall Length (Imperial)15.0
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber Resin
