3M Products & Supplies

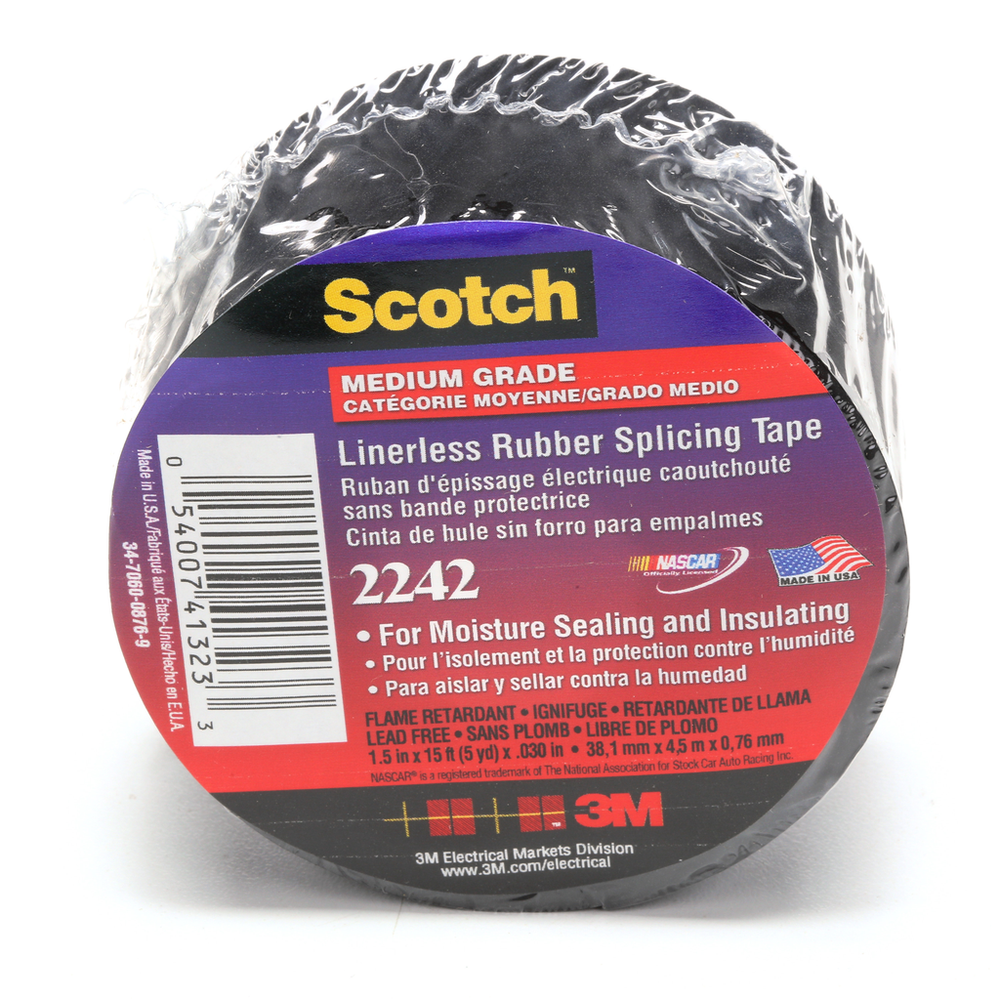

3M™ Linerless Electrical Rubber Tape 2242, 1-1/2 in x 15 ft, 1 in core, Black, 1 roll/carton, 12 rolls/case - 7000132741

Sold As: 12-Pack
SKU: 7000132741
MPN: 7000132741
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007413233
3M ID: 80610922967
5 Digit UPC: 41323
$296.27 ($24.69 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 2242 is a linerless 30 mil thick, general purpose, electrical rubber tape that's suitable for bus bar insulation and moisture sealing of cable ends. The high voltage, flame retardant tape ensures excellent tacking with its self fusing, ethylene propylene rubber resin adhesive.

Features

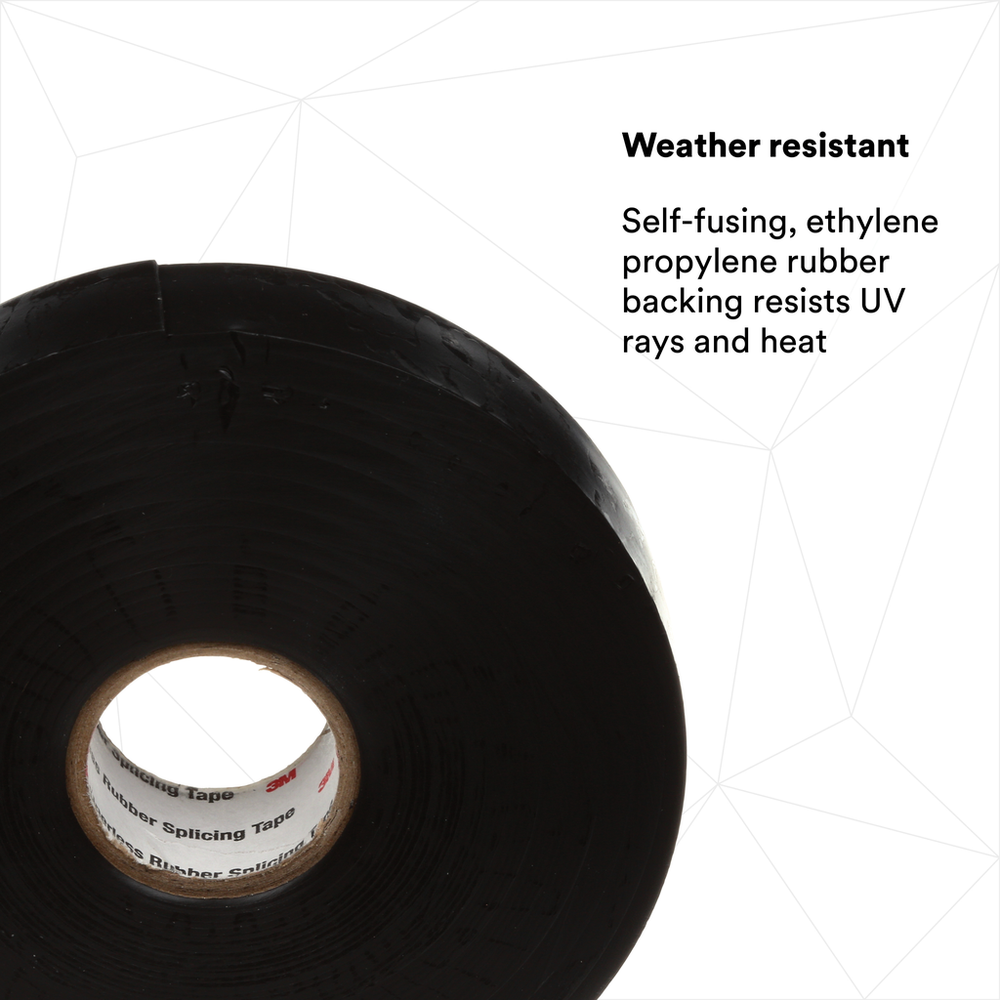

  • Rubber-resin adhesive provides excellent adherence while self-fusing, ethylene propylene rubber backing resists UV rays and heat.

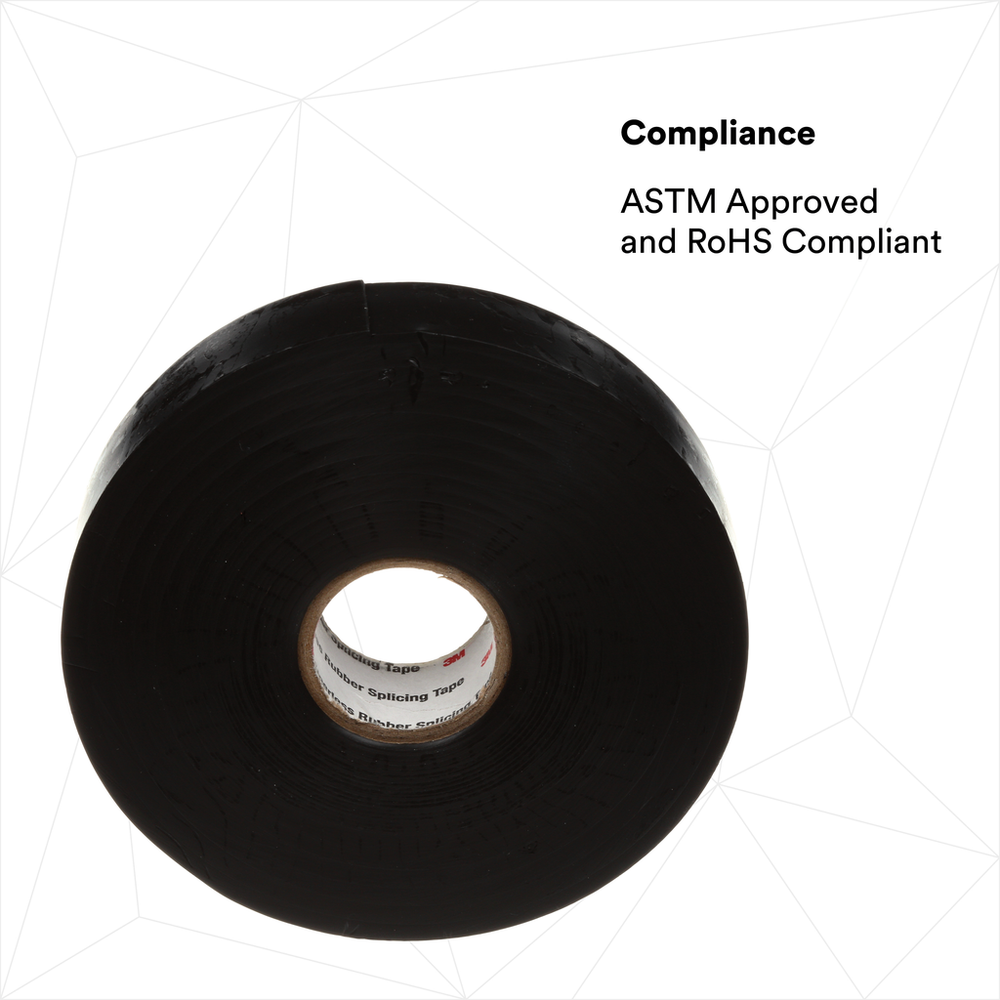

  • ASTM Approved and RoHS 2011/65/EU Compliant
  • Comes in black color
Spec Sheet



Downloads

Specifications

Shelf Life1800
Country of OriginUnited States
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)1723.0
Units per Case12.0
Dielectric Strength UOMV/mil
Tape GradeProfessional
Total Tape Thickness without Liner (Metric)0.76
Product MarketsElectrical Construction
Adhesive TypeRubber Resin
Elongation at Break850
Voltage Rating600 V
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialRubber
Tensile Strength (Metric) UOMkPa
Rolls per Case12.0
Maximum Operating Temperature (Celsius)90.0
FeaturesSelf-sticking; UV-resistant
Tensile Strength (Imperial) UOMlb/in
Dielectric Strength750.0
Overall Width (Imperial) UOMin
Specifications MetASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Overall Width (Imperial)1.5
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)4.6
Tensile Strength (Imperial)250.0
Shelf Life UOMYear
Rolls per Carton1.0
Total Tape Thickness without Liner (Imperial)30.0
Overall Width (Metric)38.1
Overall Length (Imperial)15.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)194.0
