3M Products & Supplies

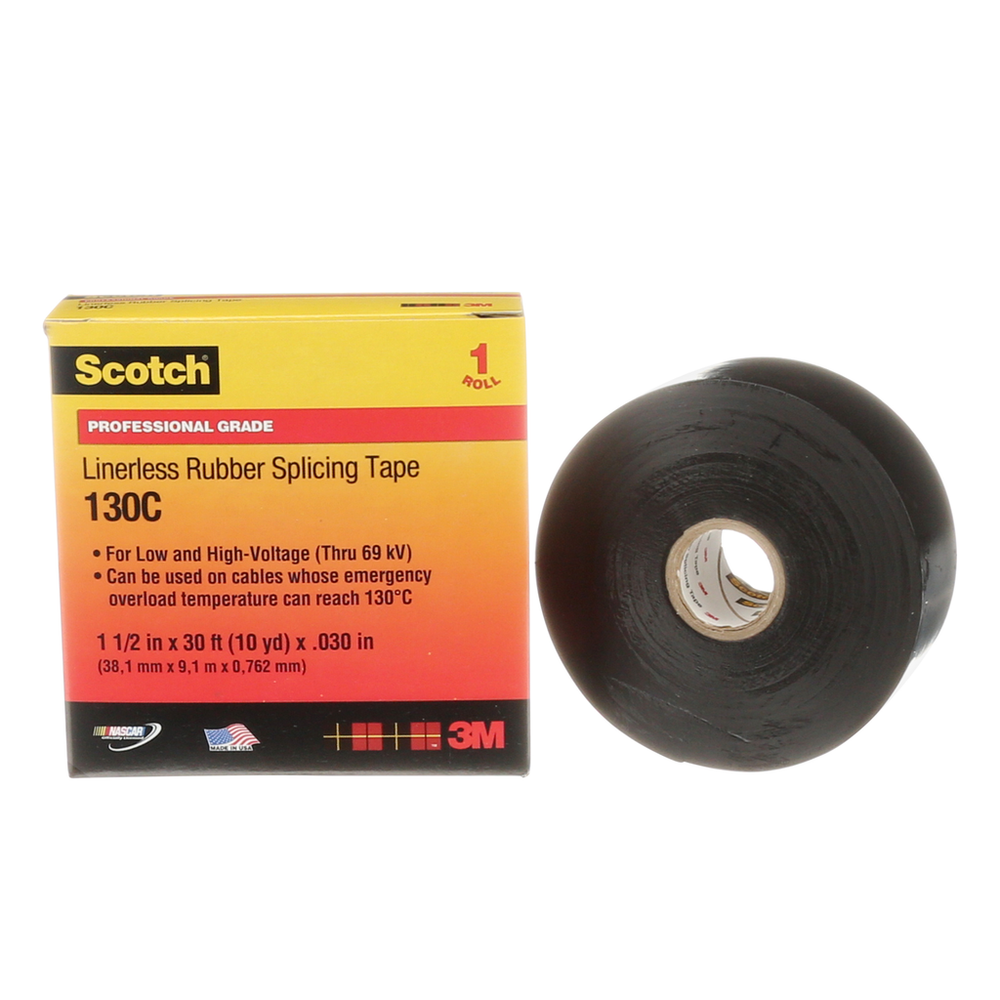

Scotch® Linerless Rubber Splicing Tape 130C, 1-1/2 in x 30 ft, Black, 1 roll/carton, 12 rolls/Case - 7000006086

Sold As: 12-Pack
SKU: 7000006086
MPN: 7000006086
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007417187
3M ID: 80-6108-3341-2
5 Digit UPC: 41718
$592.63 ($49.39 / Count)
Hurry up! Current stock:

Product Description

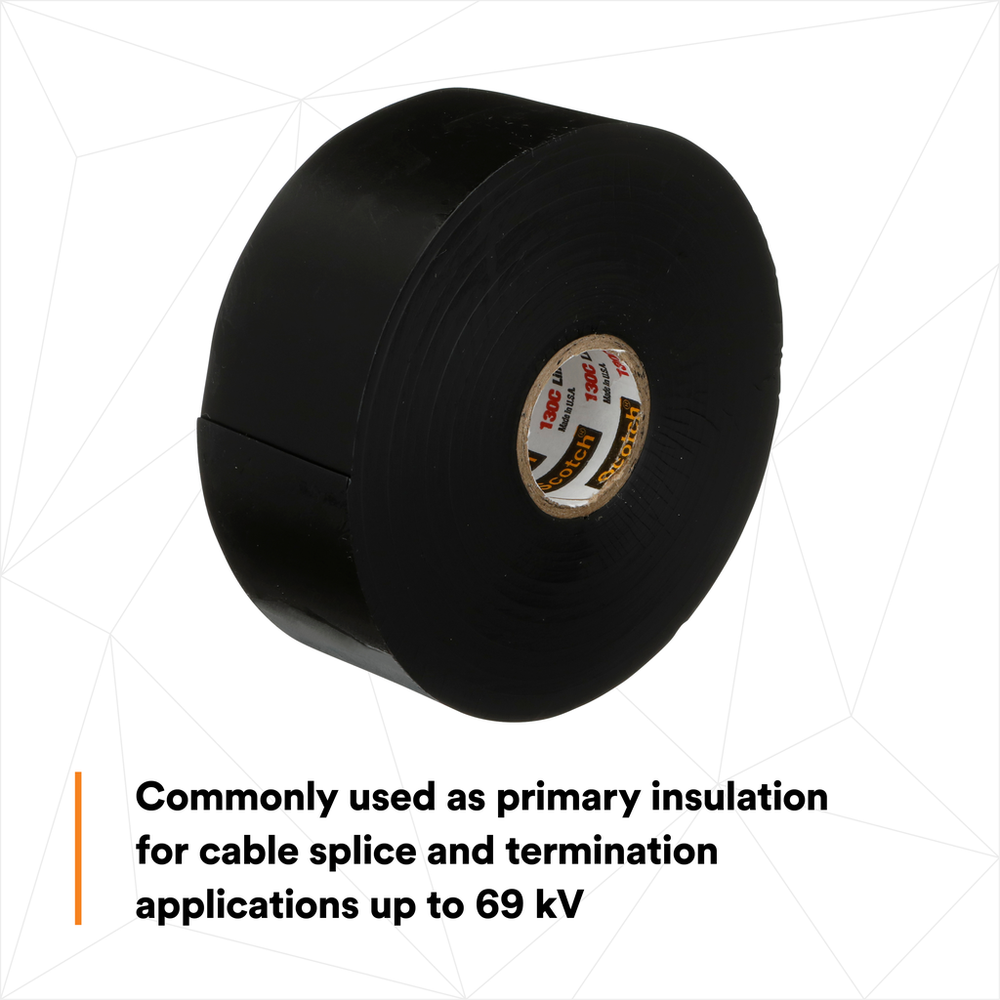

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Features

  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • ASTM Approved and RoHS 2011/65/EU Compliant
  • Provides an excellent thermal dissipation of splice heat
  • Withstands temperatures up to 194 °F (90 °C)
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States

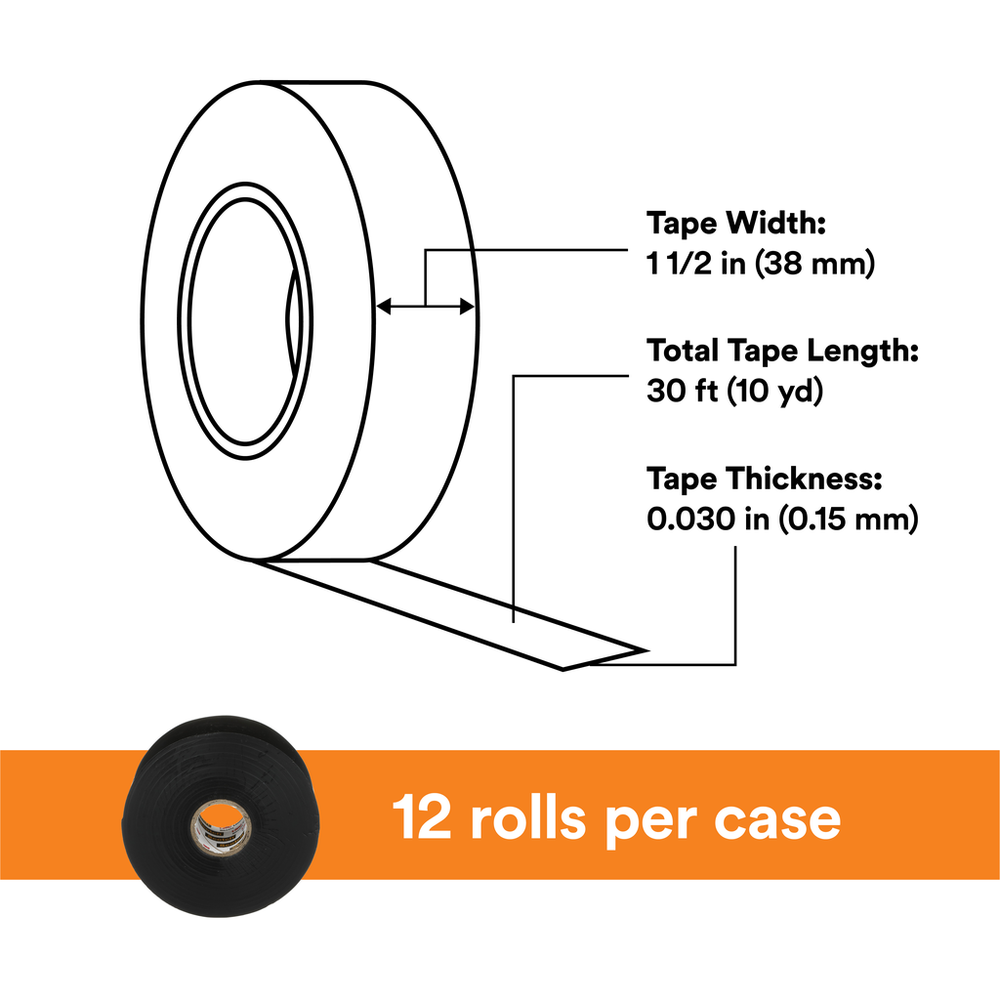

Total Tape Thickness without Liner (Imperial)30.0
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.76
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)30.0
Dielectric Strength750.0
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Elongation at Break850
Specifications MetASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Backing (Carrier) Thickness (Metric)0.76
Application/IndustryAppliance and Fixture; Commercial Construction; Communications; Industrial Construction; Maintenance and Repair Operations; Mining; Solar; Utility; Wind Power
Backing (Carrier) Thickness (Metric) UOMmm
Rolls per Carton1.0
Backing (Carrier) MaterialEthylene Rubber
Maximum Operating Temperature (Celsius)90.0
Backing (Carrier) Thickness (Imperial)30.0
Overall Length (Metric)9.1
Product ColorBlack
Units per Case24.0
Tensile Strength (Imperial)250.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)38.1
Insulation Resistance>10^15 ohms
Maximum Operating Temperature (Fahrenheit)194.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationInsulation
Minimum Operating Temperature (Celsius)0.0
FeaturesSelf-sticking; UV-resistant; Vulcanizing
Overall Width (Imperial) UOMin
Adhesive TypeRubber
Rolls per Case12.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)1.5
Dielectric Strength UOMV/mil
Product MarketsElectrical Construction
Tensile Strength (Metric)1723.0
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMkPa
Tape GradeProfessional
Overall Length (Imperial) UOMft
Voltage Rating69 kV
